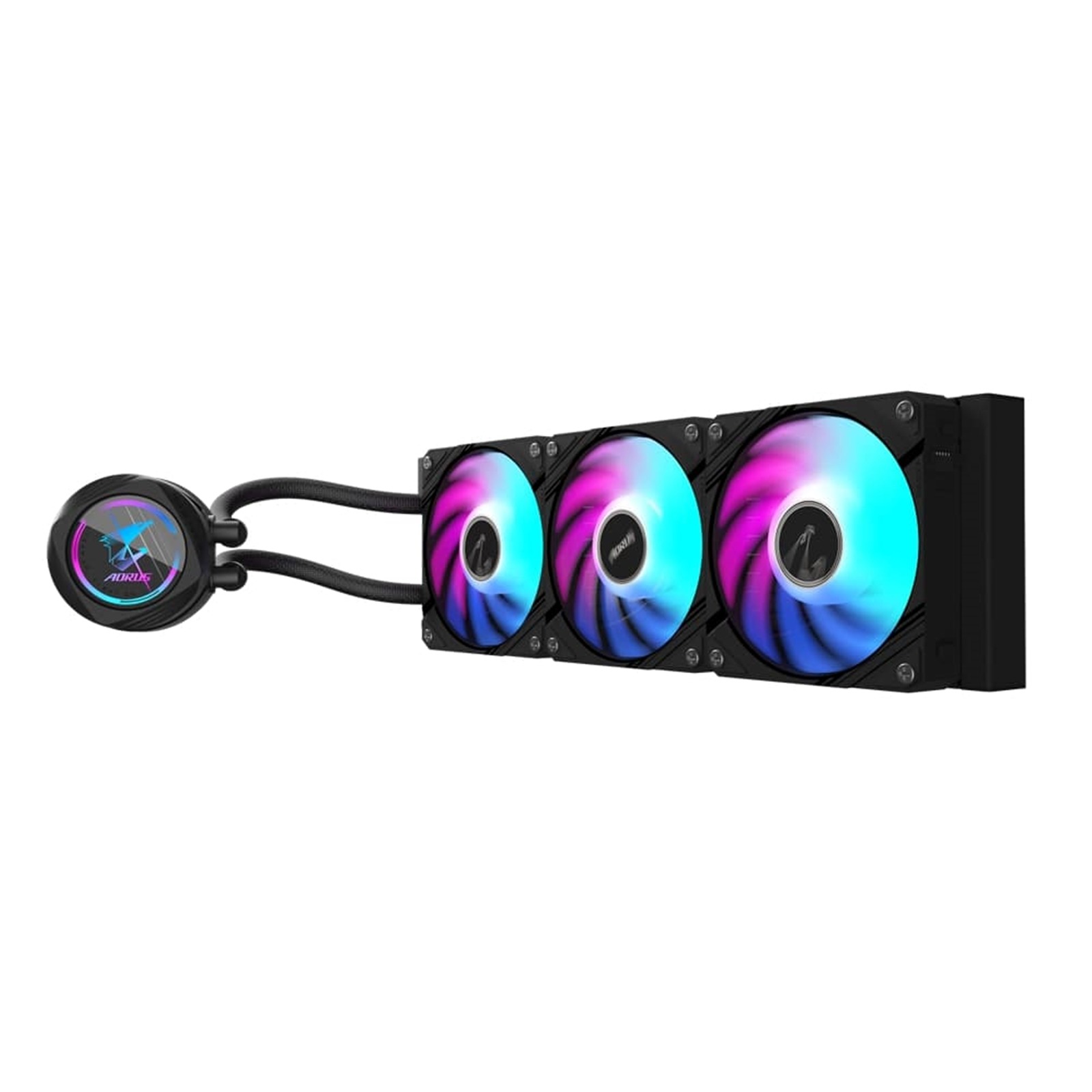

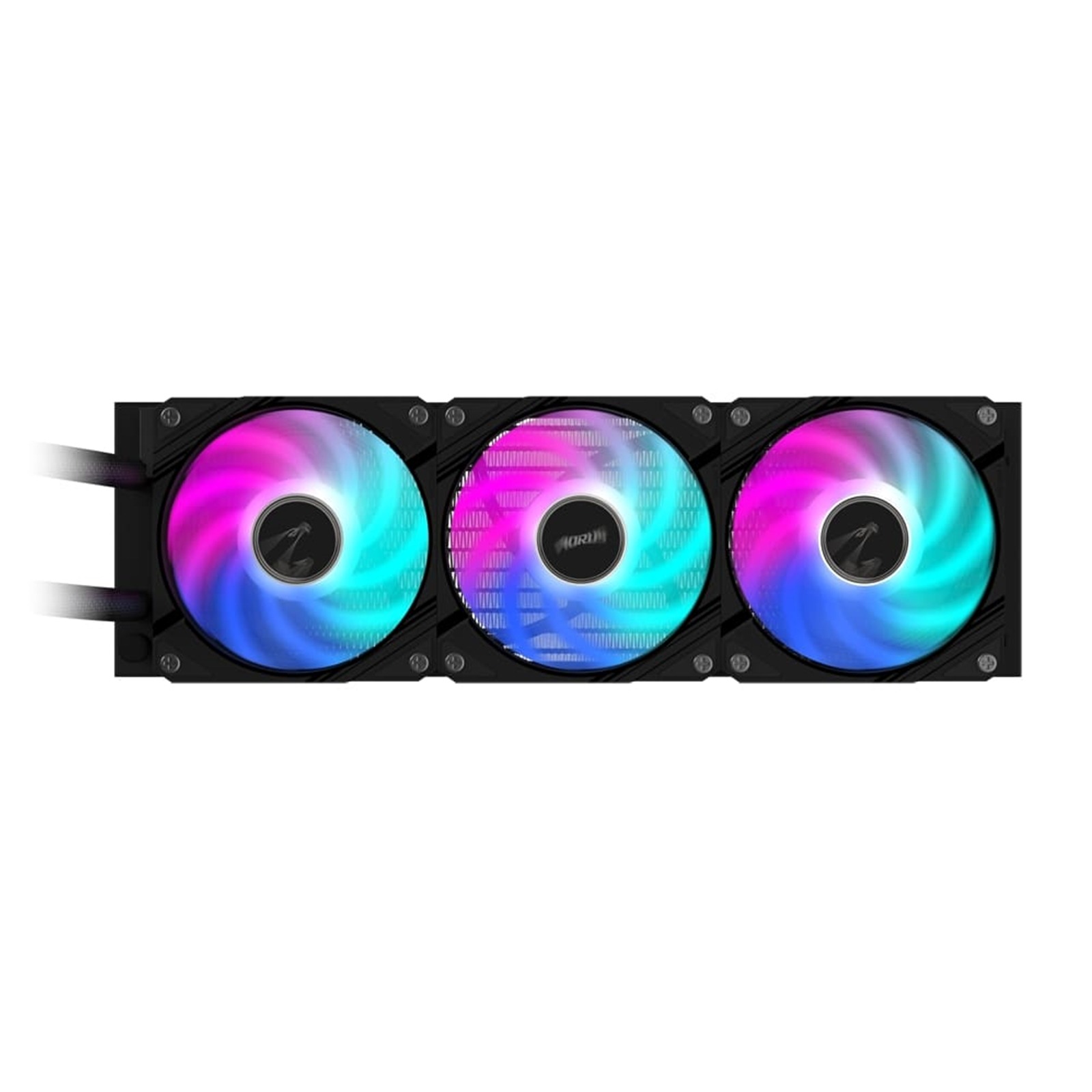

Gigabyte AORUS Waterforce II 360 ARGB AIO Liquid CPU Cooler

Product TypeLiquid CPU Cooler
Radiator ColourBlack
Max Fan Speed2000RPM
Radiator Size360mm
LED ColourARGB

£80.52

Guaranteed Safe Checkout

Gigabyte AORUS Waterforce II 360 ARGB AIO Liquid CPU Cooler

The Gigabyte AORUS Waterforce II 360 is a high-performance all-in-one liquid CPU cooler built for gamers, creators, and PC enthusiasts who need efficient thermal management and striking aesthetics. Featuring a large 360mm radiator, powerful PWM fans, and customizable ARGB lighting, this cooler is designed to keep modern processors running at optimal temperatures during intensive workloads, gaming sessions, and overclocking scenarios.

Efficient Cooling Performance

The Gigabyte AORUS Waterforce II 360 is engineered to deliver reliable cooling performance through its enlarged radiator and optimized airflow design. This combination improves heat dissipation and helps maintain stable CPU temperatures under demanding conditions.

Powerful 360mm Radiator Design

With a large 360mm aluminum radiator, the cooler provides an expanded surface area for heat transfer. This allows for more effective cooling, making it ideal for high-end gaming PCs, workstations, and performance-focused builds.

Advanced ARGB Lighting

Customizable Addressable RGB lighting adds a vibrant visual element to your system. Individually controlled LEDs support synchronization with popular motherboard lighting ecosystems, allowing users to create a unified lighting setup.

ARGB Compatibility:

  • RGB 16.7 Million Colors
  • ASUS Aura Sync
  • MSI Mystic Light Sync
  • ASRock Polychrome Certified

Quiet and Efficient Operation

Designed with silent cooling technology, the cooler operates with minimal noise while maintaining strong thermal performance. The optimized pump and fan design ensures an excellent balance between cooling efficiency and acoustic comfort.

Broad Platform Compatibility

The Gigabyte AORUS Waterforce II 360 supports a wide range of modern CPU platforms, making it a flexible solution for new builds and upgrades across various motherboard configurations.

Premium Build Quality

Built with durable materials and high-quality components, the cooler is engineered for long-term reliability. Hydraulic bearing fans and a robust cooling system ensure dependable operation throughout years of use.

Key Features

  • 360mm all-in-one liquid CPU cooler
  • High-performance cooling for gaming and professional systems
  • Customizable ARGB lighting effects
  • Enlarged radiator for improved heat dissipation
  • Quiet pump and fan operation
  • PWM fan control for optimized cooling
  • Hydraulic bearing fans for durability
  • Broad motherboard and CPU compatibility
  • Premium AORUS design and build quality
  • Suitable for overclocked and high-performance systems

Specifications

General

  • Model: AWF2-360
  • Series: Waterforce
  • Cooler Type: CPU Liquid Cooler
  • Pump Profile: ARGB Lighting

Pump

  • Pump Speed: 2300 RPM ±10%
  • Pump Noise Level: 20 dBA

Radiator

  • Dimensions: 394 x 119 x 27 mm
  • Radiator Type: 360mm Aluminum Radiator

Fans

  • Number of Fans: 3
  • Fan Dimensions: 120 x 120 x 25 mm
  • Fan Speed: 650 – 2000 RPM ±10%
  • Airflow: 61 CFM ±10%
  • Static Pressure: 2.0 mmH₂O ±10%
  • Noise Level: 6 – 30 dBA
  • Bearing Type: Hydraulic Bearing
  • Connector: 4-Pin PWM
  • Rated Voltage: 12V DC
  • Rated Current: 0.30A
  • Power Consumption: 3.6W
  • Fan Lifespan (MTTF): 150,000 Hours

ARGB Lighting

  • LED Type: Addressable RGB
  • RGB Connector: 3-Pin
  • RGB Voltage: 5V DC
  • RGB Current: 1.60A

Why Choose Gigabyte AORUS Waterforce II 360 at Prodisk IT?

At Prodisk IT, we provide genuine PC cooling solutions that combine performance, reliability, and value. The Gigabyte AORUS Waterforce II 360 is an excellent choice for users seeking powerful cooling, quiet operation, and customizable ARGB lighting in a premium AIO liquid cooler. Whether you’re building a gaming PC, streaming setup, or professional workstation, this cooler helps maintain stable temperatures and long-term system performance.



Weight 2.5 lbs
Manufacturer

EAN

Manufacturer Code

Manufacturer’s Website:
www.gigabyte.com
Warranty:
5 Years Return To Base Warranty

DESIGN

Base plate materialCopper
Illumination LEDYes

ENERGY MANAGEMENT

Thermal Design Power (TDP)300 W

OTHER FEATURES

Noise level36.9 dB
Number of fans supported3

PACKAGING CONTENT

CPU bracket(s)Yes

PERFORMANCE

TypeAll-in-one liquid cooler
Fan diameter12 cm
Supported processor socketsLGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5
Suitable locationProcessor
Maximum airflow64.95 cfm
Maximum air pressure2.93 mmH2O
Pump motor speed (max)3400 RPM
Pump motor speed (min)1600 RPM
Fan speed (max)2300 RPM
Fan speed (min)800 RPM
Fan noise level (min)12.8 dB
Fan noise level (max)36.9 dB
Pump bearing technologyCeramic bearing

TECHNICAL DETAILS

Warranty period5 year(s)

WEIGHT & DIMENSIONS

Package weight2.52 kg
Package depth470 mm
Package height143 mm
Package width209 mm
Radiator width39.4 cm
Radiator depth11.9 cm
Radiator height2.7 cm
Pump width7.28 cm
Pump depth7.28 cm
Pump height6.51 cm
