Newline TT-7523QCA+ ELARA PRO 75″, IR TOUCH, ANDROID 13 EDLA, USB-C (100watt), BYOM, CAST+, DM+, CAM, MIC, SUB (20W), NFC

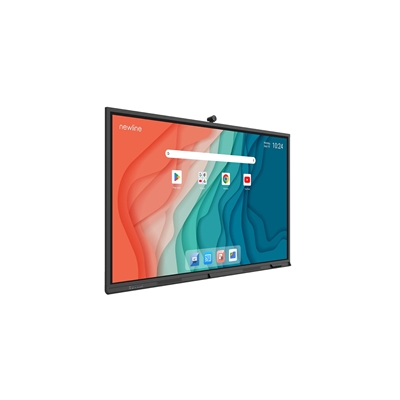

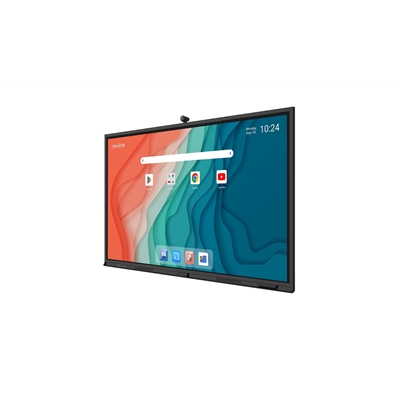

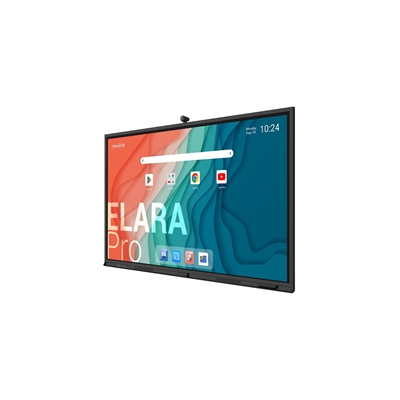

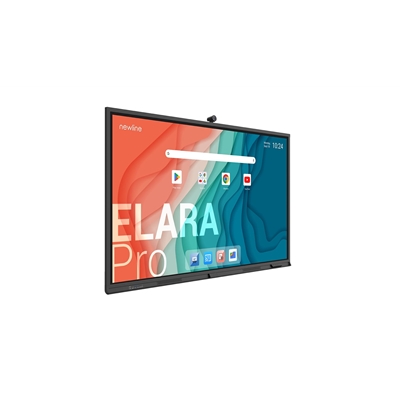

Newline Elara Pro 75″ IR Touch Screen

POWER UP YOUR COLLABORATIVE WORKSPACE
Elara Pro, a Google EDLA certified powerhouse, seamlessly integrated with Google Apps. This flexible solution ensures a superior user experience in any workspace. High-precision writing, immersive sound with a subwoofer, NFC-enabled login and hybrid UC redefine collaboration. Reinvent your workspace, setting a new standard in corporate excellence with Elara Pro.

MODULAR SYSTEM
Elevate your experience with our universe of solutions. Customise your display with Newlines’ accessories. Mix and match to create the perfect fit.

NEWLINE INTERACTIVE ECOSYSTEM
The Newline Interactive Ecosystem enhances productivity with versatile tools that seamlessly integrate with any software or device, meeting all classroom needs.

MODEL
ELARA Pro 75″ TT-7523QCA+

PANEL
Backlight Direct LED ( Wide Color Gamut +
Anti Blue Light)
Glass Surface Anti-Glare+Anti-Fingerprint,
+ Antimicrobial Tempered Glass
Bonding Technology Certified Zero Bonding
Display Area
75″: 1650 x 928 mm
Display Ratio 16:9
Resolution 3840 x 2160 (4K)
Colours 1,07 Billion
Brightness 450 cd/m²
Contrast Ratio 5000:1
Response Time 5 ms
Viewing Angle 178 degrees
Display Life Time = 50 000 hours
Transparency > 88%
Haze 2 % – 5 %
Touch Surface Hardness 7H

POWER CONSUMPTION
Standard mode*
75″: 124 W
Standby Mode* <0,5 W TOUCH Touch Technology Stellar Touch Technology Touch Points 50 Windows 20 Android/MAC/Linux Touch Screen Writing Tools Passive pen, Finger, Fist Number of stylus 2 Accuracy ±1 mm Real Palm Rejection - Yes SPEAKER Speaker Position Front Facing Speaker Rated Impedance 6 O Speaker Freq.Response 250 Hz-20 KHz SPL -10 dB Output S.P.L. 90±3 dB Speaker Max.Power Output 20 W x 2 SUBWOOFER Speaker Position Rear Side Speaker Rated Impedance 4 O Speaker Freq.Response 20 Hz-20 KHz SPL -10 dB Output S.P.L. 77±2 dB Speaker Max.Power Output 20 W x 1 MICROPHONE Mic Position 8 Microphone Array Upper Front Pick Up Distance 8 m Mic Performance Echo cancellation, Beamforming, Noise Reduction AI CAMERA MODULE Camera Included (ModCam+) Camera Resolution 3840 x 2160/ 30 fps (4K) Field of View 120° FOV Lenses Camera Tile Range 15° FRONT I/O USB Type-C (Powered 100 W) 1 HDMI IN 2.1 with HDCP 2.2 (4K @60 Hz) 1 USB 3.2 Type-B (Touch) 1 USB 3.2 Type-A 2 Microphone In 1 REAR I/O HDMI IN 2.1 with HDCP 2.2 (4K @60 Hz) 2 DisplayPort 1.2 1 USB 3.2 Type-B (Touch) 3 USB 3.0 Type-C (Powered 15 W) 1 USB 3.0 Type-C Out x 1 USB 3.2 Type-A 2 USB 3.2 Type-A Android 1 HDMI OUT 2.0 (4K @60 Hz) 1 RS232 1 RJ45 (Gigabit) In x 1 / Out x 1 OPS Slot 1 SPDIF 1 Audio Line Out 1 WIFI Module Slot 1 SDM-S Slot 1 Power Out Connect (180 W) 1 NFC 1 SMART SYSTEM SoC Chipset Rockchip RK3588 octa-core processor, 4x Cortex-A76 at 2.4GHz, 4x Cortex-A55 cores at 1.8 GHz GPU Mali Odin G610 MC4 NPU 6 Tops RAM 16 GB (DDR4) Total Storage 320 GB (Expandable) Operating System Android 13 Certified Google EDLA ? Formats Support For Image JPG, JPEG, BMP, PNG Formats Support For Video MPEG1, MPEG2, MPEG4, SorensonH.263, H.263, H.264, MVC, AVS, AVS+, WMV3, VC1, Motion JPEG, VP8, VP9, RV30/ RV40 Formats Support For Audio MPEG1/2 @LAYER1; @LAYER2; @LAYER3, EAC3, ACC-LC, HEAAC, VORBIS, LPCM, IMA-ADPCM, MSADPCM, G711 A/ MU-LAW, LBR (COOK), FLAC Wi-Fi 6 + Bluetooth 5.2 Module Integrated (Replaceable) EXTRA FIRMWARE FEATURES Multiuser profile - Yes Embedded Google Apps - Yes DIMENSIONS / WEIGHT Outline Dimensions* (Excl. wall mount) 75": 1735 x 1051 x 119 mm Net Weight* 75": 52 Kg VESA* 86": 800 x 400 mm
