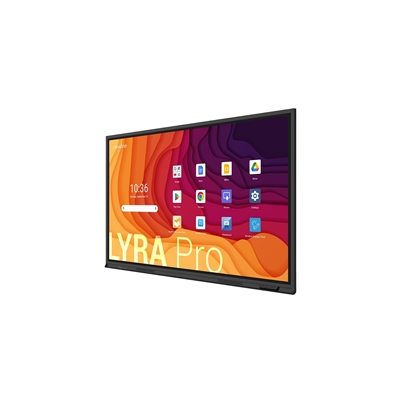

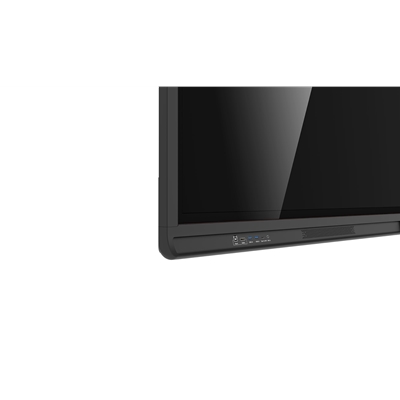

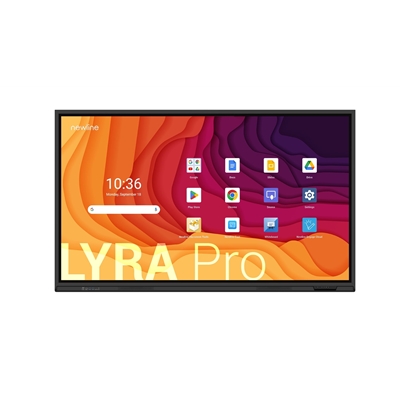

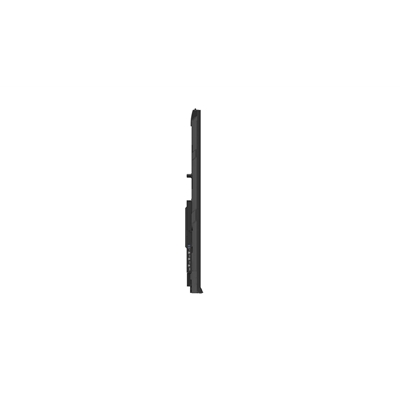

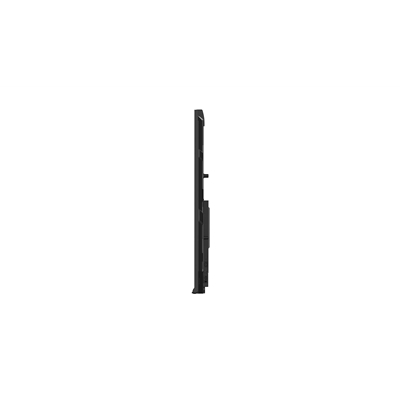

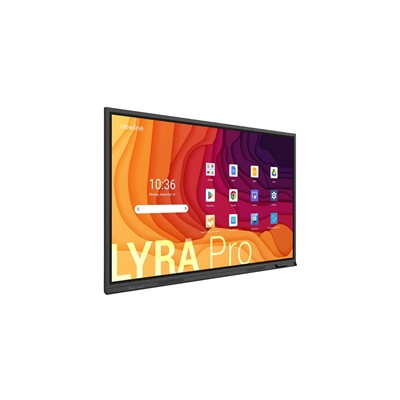

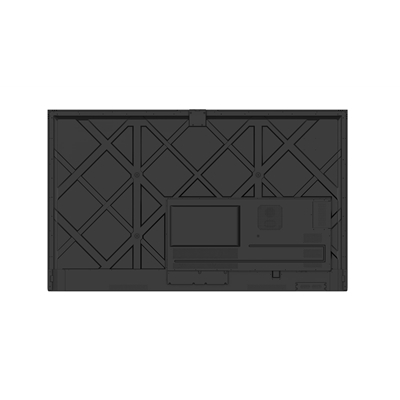

Newline TT-6523QA Lyra Pro 65″ touch screen

Newline Lyra Pro 65″ Touch Screen

SECURE EDLA INNOVATION
Discover Lyra Pro, our our dependable enterprise solution. Google EDLA certified, it seamlessly integrates with Google Apps, featuring high-precision zero bonding for unparalleled writing. The display delivers crystal-clear 4K images with sound. Modular upgrades ensure adaptability, while the secure Android 14 platform prioritizes safety. Lyra Pro enhances efficiency and productivity, offering a reliable solution for today’s needs.

MODULAR SYSTEM
Elevate your experience with our universe of solutions. Customise your display with Newlines’ accessories. Mix and match to create the perfect fit.

NEWLINE INTERACTIVE ECOSYSTEM
The Newline Interactive Ecosystem enhances operations with integrated tools seamlessly across software and devices, meeting business needs and optimizing workflow.

Specifications

MODEL
LYRA Pro 65″ TT-6523QA

PANEL
Backlight Direct LED (Wide Color Gamut +
Anti Blue Light)
Glass Surface Anti-Glare + Anti-Fingerprint
+ Antimicrobial Tempered Glass
Bonding Technlogy Certified Zero Bonding
Display Area
65″: 1428 x 803 mm
Display Ratio 16:9
Resolution 3840 x 2160 (4K)
Colours 1,07 Billion
Brightness
65″: 450 cd/m²
Contrast Ratio 5000:1
Response Time 5 ms
Viewing Angle 178 degrees
Display Life Time = 50 000 hours
Transparency > 88%
Haze 2 % ~ 5 %
Touch Surface Hardness 7 H

POWER CONSUMPTION
Standard mode*
65″: 106 W
Standby mode* <0,5 W TOUCH Touch Technology Stellar Touch Technology Touch Points 50 Windows 20 Android/MAC/Linux Touch Screen Writing Tools Passive pen, Finger, Fist Number of stylus 2 Accuracy ±1 mm Real Palm Rejection - Yes SPEAKER Speaker Position Front Facing Speaker Rated Impedance 6 O Speaker Max.Power Output 20 W x 2 FRONT I/O USB Type-C (Powered 65 W) 1 HDMI IN 2.1 with HDCP 2.2 1 USB Type-B (Touch) 1 USB 3.2 Type-A 2 Microphone In 1 REAR I/O HDMI IN 2.1 with HDCP 2.2 (4k @60 Hz) 2 DisplayPort 1.2 1 USB Type-B 3.2 (Touch) 3 USB Type-C (Powered 15 W) 1 USB Type-A 3.2 2 USB 3.2 Type-A to Android 1 HDMI OUT 2.0 (4k @60 Hz) 1 RS232 1 RJ45 (Gigabit) In x 1 / Out x 1 OPS Slot 1 SDM-S Slot 1 SPDIF 1 Audio Line Out (Jack 3,5 mm) 1 Power Out Connect (180 W) 1 SMART SYSTEM SoC Chipset GPU Amlogic A311D2 octa-core processor 4 x Cortex-A73 at 2,2 GHz, 4 x Cortex-A53 at 2,0 GHz Arm Mali-G52 RAM 8 GB DDR4 Total Storage 128 GB (Expandable) Operating System Android 14 Certified Google EDLA - Yes Formats Support For Image JPG, JPEG, BMP, PNG Formats Support For Video MPEG1, MPEG2, MPEG4, SorensonH.263, H.263, H.264, MVC, AVS, AVS+, WMV3, VC1, Motion JPEG, VP8, VP9, RV30/ RV40 Formats Support For Audio MPEG1/2ER1; @LAYER2; @LAYER3, EAC3, ACC-LC, HEAAC, VORBIS, LPCM, IMA-ADPCM, MS-ADPCM, G711 A/MU-LAW, LBR (COOK), FLAC Camera Slot 1 Wi-Fi 6 + Bluetooth 5.2 Module Integrated (Replaceable) EXTRA FIRMWARE FEATURES Multiuser profile - Yes Embedded Google Apps - Yes DIMENSIONS / WEIGHT Outline Dimensions* (Excl. wall mount) 65": 1513 x 927 x 118 mm Net Weight 65": 39 Kg VESA* 65": 600 x 400 mm
