GIGABYTE P650G 650W PSU, 120mm Silent Hydraulic Bearing Fan, 80 PLUS Gold, Non Modular, UK Plug, 100% Japanese Capacitors, Single +12V Rail
| Wattage | 650W |
| Size/Version | ATX |
| Modular | No |
| SATA Connections | 6 |
| Certification | Gold |
| Colour | Black |
£ 36.95
Guaranteed Safe Checkout
HIGH QUALITY JAPANESE CAPACITORS
The primary capacitors are sourced from top-tier Japanese manufacturers, delivering a premium and stable power supply that effectively extends the product’s lifespan.

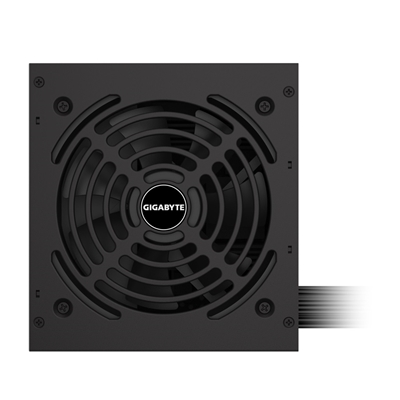

120MM SILENT HYDRAULIC BEARING (HYB) FAN
The 120mm fan detects the current power utilization and temperature, automatically adjusting its rotational speed to minimize noise.The Hydraulic Bearing fan offers a longer and more stable lifespan in comparison to traditional sleeve fan.
PROTECTION
To guarantee the stable operation of your entire computer system under any circumstances, we have incorporated a range of protective features including OCP, OTP, OVP, OPP, UVP, and SCP. Moreover, we have obtained safety certifications from various countries to ensure the consistent and secure functioning of your system.
RELIABLE BLACK FLAT CABLE
The utilization of black flat cables minimizes clutter while enhancing the thermal performance of the chassis.
80 PLUS GOLD CERTIFIED
The 80 Plus Gold certification guarantees a 90% efficiency rate at a 50% load, resulting in reduced power wastage, diminished heat generation, and minimized fan noise.
SINGLE +12V RAIL
The single +12V rail delivers optimal power output, stability, and hardware compatibility. This design not only simplifies power cable installation but also stands as the most effective choice for overclocking purposes.
COMPACT DESIGN
Through GIGABYTE’s exceptional design capabilities and the use of high-quality materials, we have successfully reduced the size of the power supply unit. This compact power supply not only facilitates easier installation into various chassis but also enhances the thermal efficiency within the case.
Model
GP-P650G
Type
Intel Form Factor ATX 12V
PFC
Active PFC(>0.9 typical)
Input Voltage
100-240 Vac(full range)
Input Current
9-4A
Input Frequency
60-50 Hz
Output Capacity
650W
Dimension
150 x 140 x 86 mm
Fan Type
120mm Hydraulic Bearing (HYB) Fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-500ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
PCI-e 6+2 Pin x 4 : 500mm+150mm*2
SATA x 6 : 500mm+150mm+150mm*2
4 Pin Peripheral x 3: 500mm+150mm+150mm*1
| Weight | 2.3 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.gigabyte.com
Warranty:
5 Years Return To Base Warranty
DESIGN
| Product colour | Black |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Fan location | Top |
ENERGY MANAGEMENT
| Input current | 12 - 6 A |
| Power protection features | Over power, Overcharge, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 650 W |
| Combined power (+5V) | 650 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54.17 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 20 A |
| AC input voltage | 100 - 240 V |
| Total power | 650 W |
| Maximum input current (@110V) | 12 A |
| Maximum input current (@220V) | 6 A |
PACKAGING DATA
| Package type | Box |
PERFORMANCE
| Mean time between failures (MTBF) | 100000 h |
| Noise level | 39 dB |
| Purpose | PC |
| Bearing technology | HDB |
| ATX version | 2.31 |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
PORTS & INTERFACES
| Floppy disk drive connector | Yes |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| CPU P4 connector (4-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 4 |
| Cabling type | Non-Modular |
| Motherboard power cable length | 50 cm |
| SATA power cable length | 150,500 mm |
| CPU power cable length | 60 cm |
| Peripheral (Molex) power cable length | 150,500 mm |
| PCI Express power cable length | 65 cm |
WEIGHT & DIMENSIONS
| Height | 86 mm |
| Width | 140 mm |
| Depth | 150 mm |
