GAMEMAX GX-850 Pro Modular 80 Plus Gold ATX3.0 PCIe 5.0 PSU With 135mm FDB Fan
| Wattage | 850W |
| Size/Version | ATX 3.0 |
| Modular | Fully |
| SATA Connections | 6 |
| Certification | Gold |
| Colour | Black |
£ 68.53
Guaranteed Safe Checkout
The GX-850 Pro partners high-end cooling together with premium components to provide an incredibly silent, top performing product perfect for primary gamers.
This intelligent fully modular unit features an instinctive Axial-tech fan design to make cooling more productive and guarantees a flawless performance. On the inside only the best components are used, and a full suite of top tier circuit protections ensures that the power that is delivered to your system is safe and reliable in any environment are used.
GameMax have created the ultimate gaming Power supply, the GX-850 Pro is the best choice for high-end gaming PCs and Esports environments.
Key Features
80 PLUS Gold Certification – Trusted with an 80 PLUS Gold certification, this powerful power supply has a high energy efficiency conversation of over 90 percent. The Gold efficiency results in less heat, a quieter operation and increased reliability.

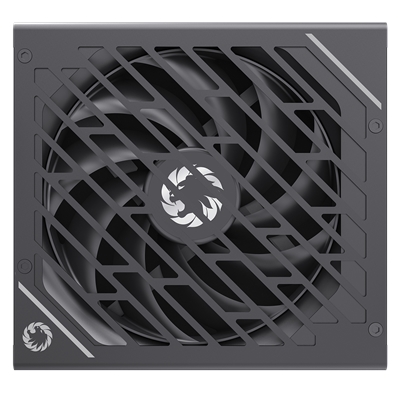

Axial-Tech – A 135mm customised Fluid Dynamic Bearing Fan with Axial-Technology features FOB high-precision fan bearings for a quieter and longer life span and a spiral fan design guarantees greater airflow and calculated to keep noise levels down.
Intelligent Temperature Control Technology – The 135mm Fluid Dynamic Bearing fan starts when the power consumption is higher than 20 percent and stops when it is lower for a more efficient cooling operation and lower energy costs.
Japanese 105 Degree Celsius Capacitors – Delivering a top performance and the reliability to match with the use of high-quality Japanese 105 Degree Celsius capacitors. Other premium components help deliver continuous and stable power, providing the greatest durability and highest stability.
PCIE 5.0 Ready – The GX-850 Pro includes a 12VHPWR 16-Pin connector offering a powerful and stable performance allowing the PSU to run next-generation GPUs, RTX 3090 TI/PCIE 5.0 GPUs. Max. Power output up to 600W.

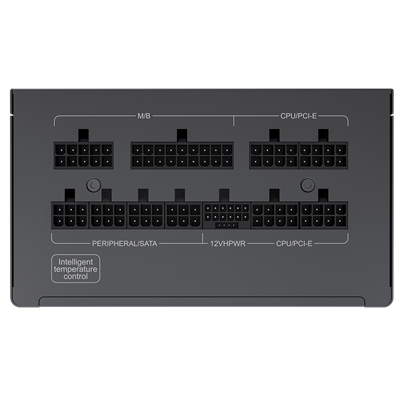

Modular Cable Configuration – A Modular cable management design lets you use only the cables you need. Improved airflow and save space and create a cleaner-looking build with the low-profile flat white cables.
Hardware Protection – A full line up top tier circuit protections keeps your build running strong and your hardware safe – OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection) & OTP (Over Temperature Protection).
Specification
Form Factor:
ATX
Series:
GameMax GX Pro
Modular:
Fully Modular
Compatibility:
ATX 3.0
Wattage:
850 W

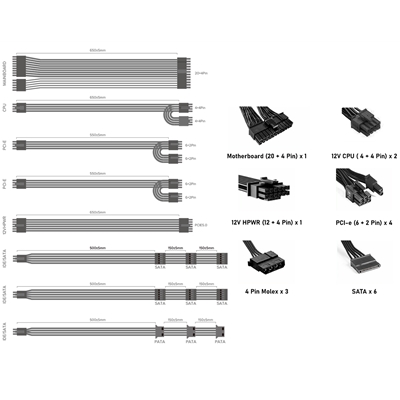

Connectors:
1 x 20+4 Pin Main
2 x 4+4 Pin 12V
6 x SATA
3 x 4-Pin Molex
4 x 6+2 Pin PCI-e
1x 12+4 Pin 12VHPWR
AC Input:
110-240 VAC
PFC:
Active PFC
Fan Type:
135mm Axial-Tech Fan
Fan Bearing:
Fluid / Hydraulic Bearing
Noise:
<25dBa
80+ Certification:
80+ Gold
Efficiency:
90%
MTBF:
"100,000 Hours"
Protection:
OPP / OVP / UVP / OCP / SCP / OTP
Package Contents:
Power Supply
Modular Cables
Manual
Modular Cable Bag
NOTE: Power lead not included
Weight/Dimensions:
1.47 kg
(WxHxD) 150 x 86 x 160 mm
Package Weight:
2.5200 kg
Warranty:
2 Years
| Weight | 2.5 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
2 Year Return To Base Warranty
CERTIFICATES
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), cTUVus |
DESIGN
| Product colour | Black |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
ENERGY MANAGEMENT
| Input current | 10 - 5 A |
| Efficiency | 87% |
| Hold time | 10 ms |
| Power protection features | Over current, Over power, Surge & inrush protection (SIP), Under power |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 840 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 850 W |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
OPERATIONAL CONDITIONS
| Operating temperature (T-T) | 0 - 40 °C |
PACKAGING DATA
| Package type | Box |
PERFORMANCE
| Mean time between failures (MTBF) | 100000 h |
| Noise level | 25 dB |
| Purpose | PC |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
PORTS & INTERFACES
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Cabling type | Fully-Modular |
| Number of PATA power connectors | 3 |
| Motherboard power cable length | 65 cm |
| SATA power cable length | 500,650,800 mm |
| CPU power cable length | 15 cm |
TECHNICAL DETAILS
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), cTUVus |
WEIGHT & DIMENSIONS
| Height | 85 mm |
| Width | 160 mm |
| Depth | 150 mm |
