EVO LABS BR600-12BL 600W PSU,120mm Black Silent Fan with Improved Ventilation, Non Modular, High-Efficiency, PFC Certified, CE Compliant, Retail Packaged
| Wattage | 600W |
| Size/Version | ATX |
| Modular | No |
| SATA Connections | 3 |
| Certification | None |
| Colour | Black |
£ 14.77
Guaranteed Safe Checkout
Introducing the Evo Labs E-600BL ATX 600W Power Supply, designed to elevate your PC system’s performance with unparalleled efficiency and reliability. Boasting a sleek black exterior and equipped with a powerful 120mm silent cooling fan, this PSU ensures optimal airflow and ventilation while operating silently, perfect for maintaining a cool and quiet computing environment.
Key Features:
Compliant with the latest ATX 2.2/2.3 standards

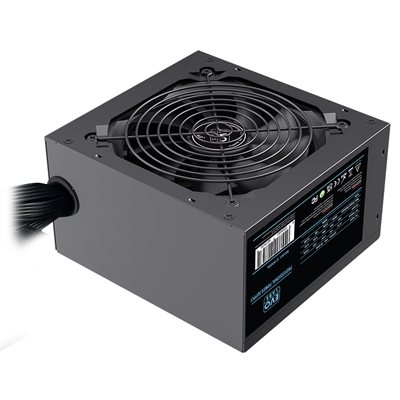

Features a 120mm Black Silent Cooling Fan for enhanced ventilation
Utilizes Power Factor Control (PFC) for improved efficiency
ATX 12V compliance ensures compatibility with most CPUs and mainboards
Offers ample connectivity with 4 SATA connectors, 1 4-pin Molex connectors, and 1 FDD connector
Stable and reliable performance for uninterrupted use
Specifications:
Model:
E-600ATX
Wattage:
600W
Input Voltage:
230Vac
Input Current:
10A
Input Frequency:
50~60Hz
Color:
Black
Dimensions (W x H x D):
150 x 86 x 140 mm
Weight:
1.65kg
Certifications:
CE / FCC / RoHS
Cooling:

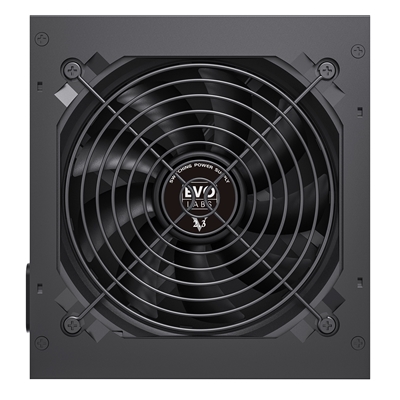

120mm Black Silent Cooling Fan

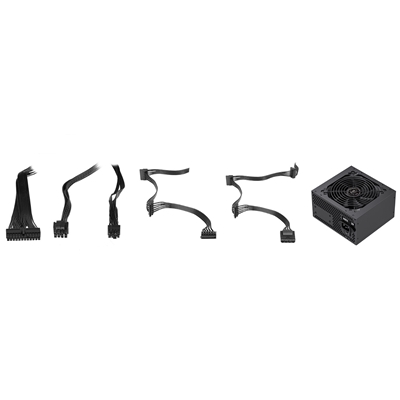

Connections
ATX 20+4pin
CPU8pin (4+4)
3 x SATA
1 x Molex
SATA x 3
1 x PCI-E 6+2pin
Compliance:
Standards CE / FCC / RoHS
Form Factor:
ATX
Case Colour:
Black
Pack Quantity:
1
Warranty:
1 Year
EAN:
5055492420930
Experience the next level of power supply performance with Evo Labs E-600ATX, setting new standards for efficiency, reliability, and quiet operation.
| Weight | 1.3 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
1 Year Return To Base Warranty
CERTIFICATES
| Certification | CE, ROHS |
DESIGN
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
ENERGY MANAGEMENT
| Input current | 10 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 230 V |
| Total power | 600 W |
LOGISTICS DATA
| Harmonized System (HS) code | 84733020 |
OTHER FEATURES
| Harmonized System (HS) code | 84733020 |
PERFORMANCE
| Certification | CE, ROHS |
| Mean time between failures (MTBF) | 100000 h |
| Noise level | 17 dB |
| Purpose | PC |
| ATX version | 2.3 |
| Silent mode | Yes |
| Power supply unit (PSU) form factor | ATX |
PORTS & INTERFACES
| Floppy disk drive connector | Yes |
| PCI Express power connectors (6-pin) | 1 |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| Cabling type | Non-Modular |
WEIGHT & DIMENSIONS
| Weight | 1.3 kg |
| Height | 85 mm |
| Width | 150 mm |
| Depth | 140 mm |
