DeepCool 700W 80 PLUS Standard Power Supply – Silent Operation, Reliable Protection, Efficient Power Delivery
| Wattage | 700W |
| Size/Version | ATX |
| Modular | No |
| SATA Connections | 3 |
| Certification | White |
| Colour | Black |
£ 34.97
Guaranteed Safe Checkout

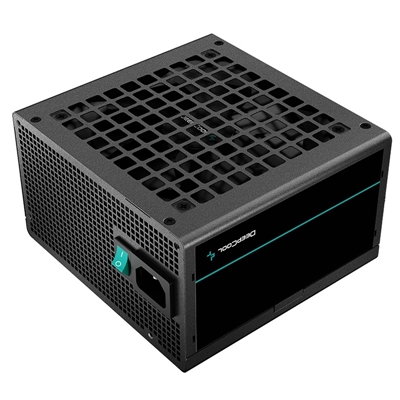

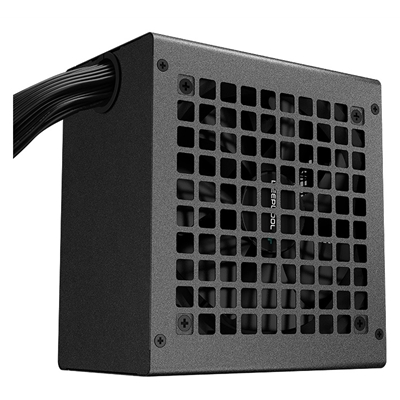

DeepCool 700W Power Supply Unit
The DeepCool 700W Power Supply Unit is a reliable and efficient power solution designed to keep your system running smoothly. With its 80 PLUS Standard certification, it ensures 85% efficiency under typical loads, minimizing wasted energy and lowering your electricity bill. The silent hydraulic bearing fan keeps noise levels low, and the flat black cables help with better cable management and a clean look. With comprehensive overpower, overvoltage, short circuit, and undervoltage protection, your system is well-protected against potential electrical issues.
Specifications:
Model:
R-PF700D-HA0B-UK
Power Output:
700W
Efficiency:
80 PLUS Standard
Fan Size:
120mm
Fan Bearing:
Hydraulic Bearing
Cable Type:
Flat Black Cables
Protection:
Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection
Connections:
1x 20/?24-Pin
2x 4/?8-Pin ATX12V
4x 6/?8-Pin PCIe
6x SATA
2x IDE
Dimensions:
150 x 140 x 86mm (W x L x H)
Weight:
2.5kg
Operating Temperature:
0-40°C
Regulatory Certifications:
CB, CCC, CE, UKCA, EAC, RCM, KC
MTBF:
100,000 Hours
Special Features:
Silent Operation, Reliable Protection, Efficient Power Delivery
| Weight | 1.75 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
uk.deepcool.com
Warranty:
5 Years Return To Base Warranty
CERTIFICATES
| Compliance certificates | CCC, CE, EAC, UKCA |
DESIGN
| Product colour | Black |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Cooling type | Active |
| Fan diameter | 12 cm |

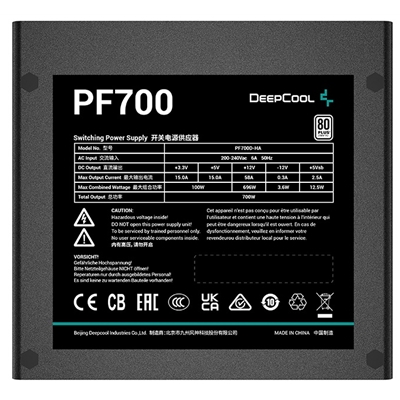

ENERGY MANAGEMENT
| Efficiency | 85% |
| Hold time | 12 ms |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 696 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 15 A |
| Max output current (+12V) | 58 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| AC input frequency | 50 Hz |
| AC input voltage | 230 V |
| Total power | 700 W |
OPERATIONAL CONDITIONS
| Operating temperature (T-T) | 0 - 40 °C |
PACKAGING CONTENT
| Cables included | AC |
PACKAGING DATA
| Cables included | AC |
| Package type | Box |
PERFORMANCE
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC/Server |
| ATX version | 2.4 |
| 80 PLUS certification | 80 PLUS |
| Power supply unit (PSU) form factor | ATX |
PORTS & INTERFACES
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 0 |
| PCI Express power connectors (6+2 pin) | 2 |
| Cabling type | Non-Modular |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 450,600,750,900 mm |
| EPS power connector (4+4 pin) | Yes |
TECHNICAL DETAILS
| Sustainability compliance | Yes |
| Compliance certificates | CCC, CE, EAC, UKCA |
WEIGHT & DIMENSIONS
| Height | 86 mm |
| Width | 150 mm |
| Depth | 140 mm |
