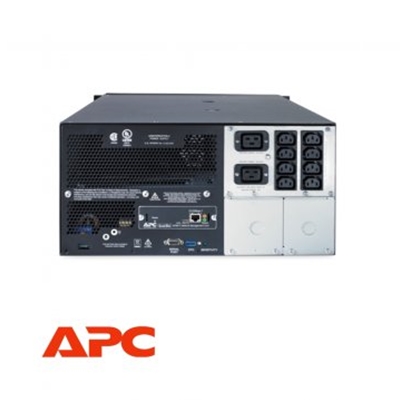

APC SUA5000RMI5U Smart-UPS 5000VA Rackmount UPS with LCD Display
| Output Capacity | 5000VA |
| Output Power | 4500W |
| Battery Type | Sealed Lead Acid |
| Recharge Time (hours) | 8 |
£ 0.00
Guaranteed Safe Checkout
The APC SUA5000RMI5U Smart-UPS 5000VA Rackmount UPS is engineered to provide reliable power protection for critical servers and network devices. With its advanced features and robust design, this UPS ensures that your equipment remains operational during power outages, voltage fluctuations, and other electrical disturbances.
Key Features:
Capacity:
5000VA / 4500W
Form Factor:
Rackmount (5U height)
Input Voltage:
220-240V
Output Voltage:
230V
Output Connections:
8 x IEC 320 C13 outlets
Automatic Voltage Regulation (AVR):
Yes, stabilizes voltage fluctuations
Battery Type:
Sealed lead-acid maintenance-free with rechargeable batteries
Typical Recharge Time:
8 hours to 90% capacity
LCD Display:
Real-time information on battery status, load, and input/output voltage
Communication Ports:
USB and serial port for monitoring and management
Environmental Monitoring:
Optional SNMP/HTTP management card for remote monitoring
Operating Temperature:
0°C to 40°C (32°F to 104°F)
Dimensions:
17.5 x 19 x 8.5 inches (44.5 x 48.3 x 21.6 cm)
Weight:
97 lbs (44 kg)
Benefits:
Reliable Power Backup: Protects against power outages, ensuring uninterrupted operation.
Efficient Energy Management: AVR technology keeps voltage levels stable, improving equipment lifespan.
User-Friendly Interface: The LCD display provides easy access to important information.
Scalability: Compatible with additional battery packs for extended runtime.
Robust Build Quality: Designed for high-performance environments, ensuring durability and reliability.
Whether you’re looking to safeguard a single server or an entire network, the APC SUA5000RMI5U Smart-UPS is the ideal solution for maintaining uptime and protecting your valuable equipment.
| Weight | 97.73 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.apc.com
Warranty:
2 Years Repair or Replace Warranty
BATTERY
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Typical backup time at half load | 26.7 min |
| Typical backup time at full load | 9.4 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Battery capacity | 1632 VAh |
| Battery life (max) | 5 year(s) |
CERTIFICATION
| Certification | C-tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE, REACH, PEP, EOLI |
| Compliance certificates | RoHS |
DESIGN
| Certification | C-tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE, REACH, PEP, EOLI |
| Form factor | Rackmount/Tower |
| LED indicators | Battery replacement |
| Product colour | Black |
| Rack capacity | 5U |
FEATURES
| Audible alarm(s) | Yes |
| Output power capacity | 5 kVA |
| Surge energy rating | 480 J |
| Noise level | 53 dB |
| Input frequency | 50/60 Hz |
| Efficiency | 96% |
| Output power | 4000 W |
| Surge protection | Yes |
| Input operation voltage (max) | 302 V |
| Input operation voltage (min) | 151 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Number of output phases | 1 |
| Waveform | Sine |
| Output frequency regulation | 47 - 53 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Auto-restart | Yes |
| UPS topology | Line-Interactive |
| Hold time (min) | 2 ms |
| Hold time (max) | 4 ms |
LOGISTICS DATA
| Products per pallet | 4 pc(s) |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 4487.43 |
OPERATIONAL CONDITIONS
| Operating altitude | 0 - 9000 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Non-operating altitude | 0 - 15000 m |
OTHER FEATURES
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Packaging content | Web/SNMP Management Card |
PACKAGING CONTENT
| Cables included | RS-232 |
| Manual | Yes |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
PACKAGING DATA
| Package weight | 106.8 kg |
| Cables included | RS-232 |
| Package depth | 762 mm |
| Package height | 635 mm |
| Package width | 610 mm |
| Manual | Yes |
| Quick installation guide | Yes |
| Software CD | Yes |
| Rack mount kit | Yes |
PORTS & INTERFACES
| Ethernet LAN (RJ-45) ports | 0 |
| AC outlets quantity | 10 AC outlet(s) |
| Number of output IEC jumpers | 4 |
| Power plug | Hard Wire 3-wire |
| AC outlet types | C13 coupler, C19 coupler |
SUSTAINABILITY
| Sustainability certificates | RoHS |
TECHNICAL DETAILS
| Harmonized System (HS) code | 85078000 |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
WEIGHT & DIMENSIONS
| Weight | 97.7 kg |
| Package weight | 106.8 kg |
| Height | 222 mm |
| Width | 483 mm |
| Depth | 660 mm |
| Package depth | 762 mm |
| Package height | 635 mm |
| Package width | 610 mm |
