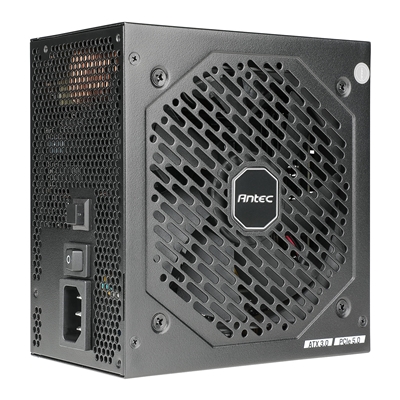

Antec NE1000G M, PCIe 5.0 Ready, Fully Modular, 80PLUS Gold, Single Rail, 83A, 120mm FDB Fan, ATX3.0 PSU
| Wattage | 1000W |
| Size/Version | ATX 3.0 |
| Modular | Fully |
| SATA Connections | 12 |
| Certification | Gold |
£ 89.33
Guaranteed Safe Checkout
INCREDIBLE COMES FROM UNLIMITED POWER
Introducing the NE1000G M ATX 3.0 power supply, designed with the ultimate performance and stability in mind for the gaming and enthusiast market. With advanced features like ATX 3.0 and high-quality JP capacitors, unparalleled stability, and 80 PLUS® Gold-certified efficiencies, you can expect peak performance from your system. The PhaseWave™ Design ensures steady power output, while the 120mm FDB Silence Fan offers quiet cooling. The power supply is also 100% Modular, allowing for easy cable management and customization. The Zero RPM Manager enables advanced thermal control, ensuring the optimal balance between silent operation and efficient cooling. The CircuitShield™ suite of industrial-grade protections provides safe and reliable power delivery in any environment. The NE850G M ATX 3.0 is the perfect choice for building a reliable and efficient PC system for gamers and professionals.
ATX 3.0 & PCIE 5.0 COMPATIBLE
The new NEG M ATX 3.0 Series power supplies meet the high standards of the ATX 3.0 standard for reliability and power efficiency, which are formally certified for ATX 3.0 compliance, ensuring the utmost level of quality and performance. The included PCIe 5.0 12VHPWR GPU cable enables seamless compatibility with modern graphics cards, such as the NVIDIA® GeForce RTX™ 40 Series.
HIGH-QUALITY JP CAPACITORS
Equipped with high-quality JP capacitors, our power supplies achieve unprecedented tight voltage regulation and minimal ripple and noise, maximizing your system’s performance.
PHASEWAVE TM DESIGN
Introducing PhaseWave™ Design, a server-classLLC design featuring synchronous rectification based on a DC-DC topology. This design ensures unparalleled power delivery efficiency and stability for your system.
CIRCUITSHIELDTM
The full suite of industrial-grade protections ensuring the safety and reliability of your power supply in any situation.
10-YEAR WARRANTY
The new PSU line from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 10-year warranty
100% FULL MODULAR
Allows users to use only the necessary cables and eliminates excess cables that can obstruct and reduce airflow for improved cooling performance.
Specifications
Form Factor
ATX 3.0
Edition
NE1000G
Wattage
1000 W
80 PLUS Certification
80 PLUS Gold
Max. Efficiency (at 230Vac)
–
Cooling
Fan
Fans
1 x 120mm
Internal +12V Rails
Single Rail
Rail 1 +12V
83 A
Max. Combined Output +12V
83 A
Modular
Yes
Modularity
Full Modular
SLI/CrossFire
No
EPS 12V
No
Motherboard Connector
20+4-pin

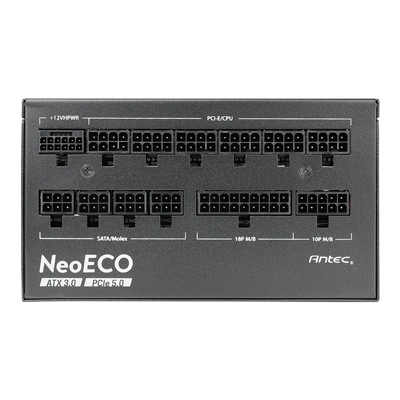

Connectors
1 x 16-pin PCIe
2 x 4+4-pin ATX 12V
4 x 4-pin Molex
4 x 6+2-pin PCIe
12 x SATA
Dimensions
150 x 86 x 140 (WxHxD)
Package Type
Retail
Warranty
10 Year
| Weight | 3.3 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.antec.com
Warranty:
10 Year Return To Base
CERTIFICATES
| Certification | cTUVus, TUV, CB, RCM, CE, FCC, BIS, BSMI, KC, UKCA, ICES |
DESIGN
| Product colour | Black |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Fan location | Top |
ENERGY MANAGEMENT
| Input current | 6 - 12 A |
| Hold time | 150 ms |
| Power protection features | Over power, Over voltage, Overcharge, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 996 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 83 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 1000 W |
LOGISTICS DATA
| Warranty period | 10 year(s) |
OPERATIONAL CONDITIONS
| Operating temperature (T-T) | 0 - 40 °C |
PACKAGING CONTENT
| Cables included | AC |
PACKAGING DATA
| Package weight | 4.66 kg |
| Cables included | AC |
PERFORMANCE
| Certification | cTUVus, TUV, CB, RCM, CE, FCC, BIS, BSMI, KC, UKCA, ICES |
| Purpose | PC |
| ATX version | 3.0 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
PORTS & INTERFACES
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Cabling type | Fully-Modular |
TECHNICAL DETAILS
| Warranty period | 10 year(s) |
WEIGHT & DIMENSIONS
| Weight | 1.64 kg |
| Height | 86 mm |
| Width | 150 mm |
| Depth | 140 mm |
