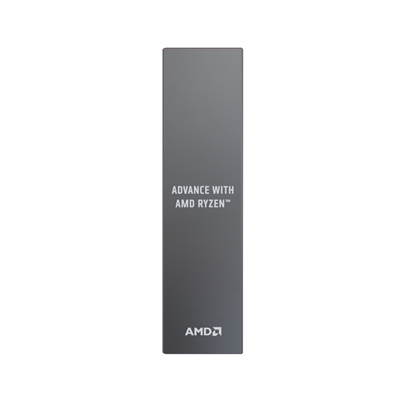

AMD Ryzen 7 7700X with Radeon Graphics, 8 Core Processor, 16 Threads, 4.5GHz up to 5.4GHz Boost, 40MB Cache, 105W, No Fan, Radeon Graphics
| Socket | AM5 |
| On-Chip Graphics | No |
| Speed | 4.5GHz |
| Core Quantity | 8 |
| Prefix | Ryzen 7 |
£ 220.21
Guaranteed Safe Checkout
CPU Type
AMD Ryzen 7
CPU Model
7700X
100-100000591WOF
Core Name
Zen 4
Socket
AM5
CPU Size
TSMC 5nm FinFET
Number of Cores
8
Number of Threads
16
Clock Speed
4.5GHz
Turbo Speed
5.4GHz
Unlocked Core Multiplier
Yes
Processor Graphics
Y
GPU Core Speed
2200 MHz
L1 Cache
N/A
L2 Cache
8MB
L3 Cache
32MB
Max TDP
105W
Heatsink
No
Packaging
Retail
| Weight | 0.3 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.amd.co.uk
Warranty:
AMD Processors in a box (PIB): 3 Year Limited Manufacturer Warranty.
Coverage
Year 1: Return to Target or AMD for warranty service.
Years 2-3: Warranty service provided directly by AMD
AMD Warranty Support
AMD Warranty Portal: https://www.amd.com/en/registration/warranty-services-portal.html
Please Note: First-time users must create an AMD account to access warranty services.
AMD Help & Support: https://www.amd.com/en/support.html
Required Documentation for AMD Warranty Claims
1. Product details including serial number and model number.
2. Clear explanation of the problem you’re experiencing
3. Proof of purchase (receipt or invoice).
4. Photo of the CPU
GRAPHICS
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card base frequency | 400 MHz |
| On-board graphics card dynamic frequency (max) | 2200 MHz |
| Discrete graphics card | No |
I/O CONFIGURATION
| USB version | 2.0/3.2 Gen 2 (3.1 Gen 2) |
| USB ports quantity | 5 |
MEMORY
| ECC | Yes |
| Non-ECC | Yes |
| Memory channels | Dual-channel |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR5-SDRAM |
| Memory clock speeds supported by processor | 3600,5200 MHz |
OPERATIONAL CONDITIONS
| Maximum operating temperature | 95 °C |
OTHER FEATURES
| L1 cache | 0.512 MB |
| L2 cache | 8000 KB |
PACKAGING DATA
| Package type | Box |
PROCESSOR
| Processor model | 7700X |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Box | Yes |
| Processor socket | Socket AM5 |
| Package type | Box |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 5.4 GHz |
| Processor cache | 32 MB |
| Thermal Design Power (TDP) | 105 W |
| Processor cache type | L3 |
| Cooler included | No |
| Processor base frequency | 4.5 GHz |
| Processor generation | AMD Ryzen 7000 Series |
PROCESSOR SPECIAL FEATURES
| Intel� Hyper Threading Technology (Intel� HT Technology) | No |
TECHNICAL DETAILS
| Launch date | 9/15/2022 |
