Lenovo ThinkCentre M70q G5 12TD0094UK Tiny PC, Intel Core i7-14700T 14th Gen, 16GB DDR5 RAM, 512GB SSD, Intel UHD Graphics 770, Windows 11 Pro with Keyboard and Mouse
| Case Style | Tiny |
| Processor | Intel Core i7 |
| Processor Cores | 20 |
| Storage | 512GB |
| Memory | 16GB |
| Graphics | On-chip |
| Operating Software | Windows 11 Pro |
£ 624.54
Guaranteed Safe Checkout
Lenovo ThinkCentre M70q Gen 5 Intel Core i7-14700T 16GB RAM 512GB SSD Windows 11 Pro Tiny PC
The Lenovo ThinkCentre M70q Gen 5 is a cutting-edge Tiny PC that combines powerful performance with a compact design, making it ideal for both professional and personal use. Equipped with the latest Intel Core i7-14700T processor, this desktop delivers exceptional speed and efficiency for multitasking and demanding applications. With 16GB of DDR5 RAM and a spacious 512GB SSD, you can expect quick access to your files and seamless operation of your favourite software. Plus, the included Windows 11 Pro ensures a modern user experience filled with enhanced features and security.
PERFORMANCE Processor
Intel® Core™ i7-14700T, 20C (8P + 12E) / 28T, Max Turbo up to 5.2GHz, P-core 1.3 / 5.0GHz, E-core 0.9 / 3.7GHz, 33MB
Graphics
Integrated Intel® UHD Graphics 770
Chipset
Intel® Q670 Chipset
Memory
1x 16GB SO-DIMM DDR5-5600
Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory
Up to 64GB (2x 32GB DDR5 SO-DIMM)
Storage
512GB SSD M.2 2280 PCIe® 4.0×4 NVMe® Opal
Max Storage Support
Dual SSD mode: up to two drives, 2x M.2 SSD
M.2 2280 SSD up to 2TB
RAID Preset
None
Card Reader
No card reader
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC233VB or Conexant CX11771 codec
Speakers
2W x 1
Power Supply
135W 89% Adapter
DESIGN Keyboard
USB Traditional Keyboard, Black, English (UK)
Mouse
USB Calliope Mouse, Black
Expansion Slots
Three M.2 slots (one for WLAN, two for SSD)
Case Color
Black
Stand
None
Adapter Cage
None
Toolless Chassis Screw
Toolless Chassis Screw
Dust Filter
None
Mounting

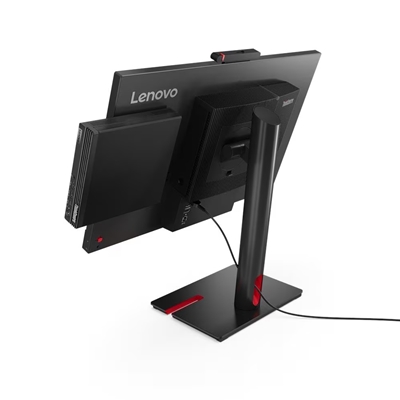

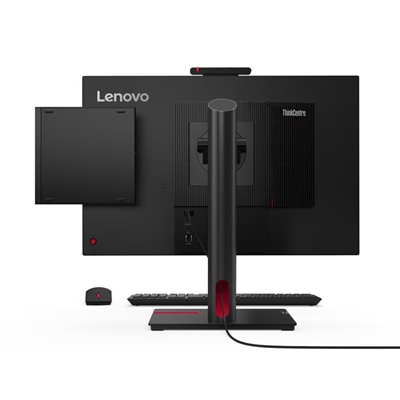

VESA Mount
IO Box
No IO box
Pen
Pen Not Supported
Form Factor
Tiny (1L)
Dimensions (W x D x H)
179 x 182.9 x 36.5 mm with rubber feet (7.05 x 7.2 x 1.44 inches with rubber feet)
Weight
Around 1.25 kg (2.76 lbs)
CONNECTIVITY WLAN + Bluetooth
Intel® Wi-Fi® 6E AX211, 802.11ax 2×2 + BT5.3, vPro®
WWAN
Non-WWAN
Ethernet
Integrated 100/1000M

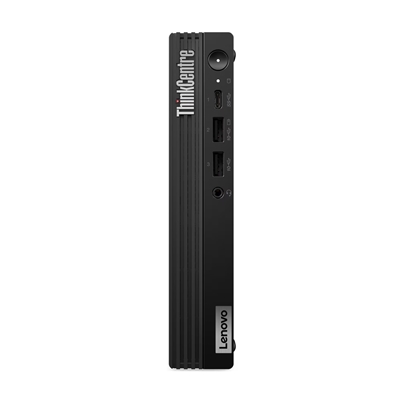

Front Ports
1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with [5V@0.9A](mailto:5V@0.9A) charging
1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [5V@2.1A](mailto:5V@2.1A) charging
1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)
Optional Front Ports (configured)
None

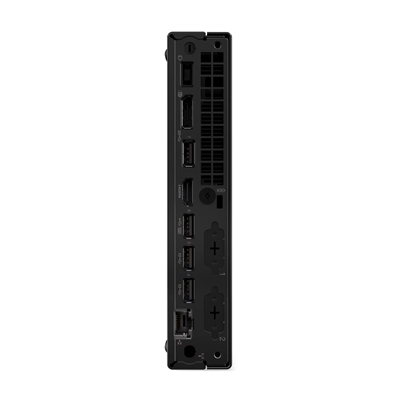

Rear Ports
1x USB-A (Hi-Speed USB / USB 2.0), with smart power-on
1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4a (HBR2, DSC)
1x Ethernet (RJ-45)
Optional Rear Ports (configured)
DP 1.4
SECURITY & PRIVACY Security Chip
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader
No fingerprint reader
Physical Locks
Kensington® Security Slot™, 3 x 7 mm
Kensington Cable Lock
None
Chassis Intrusion Switch
Chassis Intrusion Switch
MANAGEABILITY System Management
Intel® vPro® Enterprise
SERVICE Base Warranty
1-year, Onsite
Included Upgrade
1Y Premier Support TC DT/AIO Mainstream/Halo WHB (CPN), CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
CERTIFICATIONS Green Certifications
ENERGY STAR® 8.0
EPEAT™ Silver Registered
ENERGY STAR® 8.0
ErP Lot 3/7
RoHS compliant
TCO Certified
## Other Certifications
Mil-Spec Test
MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)
SOFTWARE Operating System
Windows® 11 Pro, English
Bundled Software
None
ACCESSORIES Bundled Accessories
None
| Weight | 3.75 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.lenovo.co.uk
Warranty:
1 year on-site warranty 0333 777 3991 DOA period 6 Days – This is from date of invoice. Customers to contact Lenovo to troubleshoot and they will advise process for return or repairs
CERTIFICATES
| Certification | ENERGY STAR,TCO,EPEAT Silver,RoHS |
DESIGN
| Chassis type | mini PC |
| Cable lock slot | Yes |
| Product colour | Black |
| Volume | 1 L |
| Cable lock slot type | Kensington |
| Colour name | Black |
DISPLAY
| Display included | No |
ENERGY MANAGEMENT
| Power supply | 135 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
GRAPHICS
| On-board graphics card model | Intel UHD Graphics 770 |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| On-board graphics card family | Intel® UHD Graphics |
| On-board GPU manufacturer | Intel |
MEMORY
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory clock speed | 5600 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory | 16 GB |
NETWORKING
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Ethernet LAN | Yes |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
OPERATING SYSTEM/SOFTWARE
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Operating system language | English |
OPERATIONAL CONDITIONS
| Operating altitude | 0 - 3048 m |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Non-operating altitude | 0 - 12192 m |
PACKAGING CONTENT
| Contrast ratio (typical) | 10 - 90% |
| Display included | No |
| Mouse included | Yes |
| Keyboard included | Yes |
| Mouse connectivity | Wired |
| Keyboard connectivity | Wired |
PERFORMANCE
| Motherboard chipset | Intel Q670 |
| Audio system | High Definition Audio |
| Trusted Platform Module (TPM) | Yes |
| Number of speakers | 1 |
| Product type | Mini PC |
| Audio chip | Realtek ALC233VB |
PORTS & INTERFACES
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
PROCESSOR
| Processor model | i7-14700T |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor boost frequency | 5.2 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
| Efficient cores | 12 |
| Performance cores | 8 |
| Processor base power | 35 W |
| Maximum turbo power | 106 W |
| Efficient-core base frequency | 0.9 GHz |
| Performance-core base frequency | 1.3 GHz |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Efficient-core Max Turbo Frequency | 3.7 GHz |
| Performance-core Max Turbo Frequency | 5 GHz |
STORAGE
| Optical drive type | No |
| Total storage capacity | 512 GB |
| Card reader integrated | No |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Storage media | SSD |
| SSD form factor | M.2 |
| NVMe | Yes |
| Total SSDs capacity | 512 GB |
WEIGHT & DIMENSIONS
| Weight | 1.25 kg |
| Package weight | 2.85 kg |
| Height | 36.5 mm |
| Width | 179 mm |
| Depth | 182.9 mm |
| Package depth | 141 mm |
| Package height | 268 mm |
| Package width | 490 mm |
