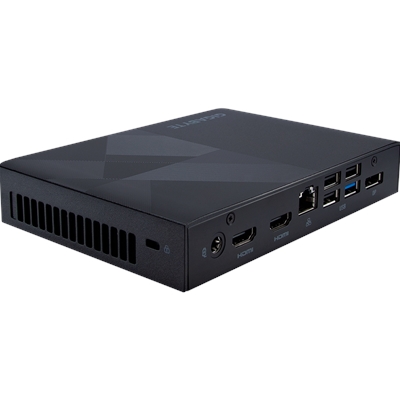

Gigabyte BRIX (GB-BN1P-N200) Barebone Kit, Intel N200 3.2GHz Quad Core CPU, 1 x DDR4 SO-DIMM Slot, 2 x M.2 2280 Slots, Wi-Fi 6 & Bluetooth 5.2
| Processor | Intel N200 |
| Processor Cores | 4 |
| Memory Type | 1x DDR4 |
| Max Memory | 32GB |
| Storage M.2 Slots | 2 |
| Storage 2.5 Inch Slots | None |
| VESA | Not Included |
£ 164.54
Guaranteed Safe Checkout
USB Type-C Connector
The USB Type-C is a new reversible connector that comes with a variety of useful features, including support for USB 3.2 gen2, which provides transfer speeds of up to 10 Gb/s.
Support HDMI 2.1 / DP 1.4 Dual Output
HDMI 2.1 offers 18 Gb/s of bandwidth, which is nearly twice that of the previous generation, and it is also backward compatible with HDMI 1.4.
Dual M.2 Storage Supports
It can support dual M.2 SSDs (2×2280) based on PCI-e/SATA technology. Users can install two M.2 SSDs for faster boot-up and application loading, as well as a double-capacity HDD for all kinds of media content, files, and documents without any space limitations.
Dimension
163.5 x 116.8 x 28.5 mm
0.54 L
Motherboard Size
154 x 110 mm
CPU
Intel® Processor N200
CPU 3.2G-3.7G Turbo, 4C/4T Core, 6MB L3 Cache
Memory
1 x SO-DIMM DDR4 slot
3200MHz
Max. 32GB
LAN
2.5GbE LAN (Realtek RTL8125)
Wifi Card
Intel AX101
Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz
Graphics
Intel UHD Graphics 750
Audio
Realtek ALC897
HDMI Resolution (Max.)
HDMI 2.1
Support 4K@60P HDR10
Mini DP Resolution (Max.)
DP 1.4
support 4K@60P HBR2
Storage
1 x M.2 2280 slots for SSD (PCI-e x2 or SATA)
1 x M.2 2280 slots for SSD (PCI-e x2)
Expansion Slots
1 x M.2 2280 slots for SSD (PCI-e x2 or SATA)
1 x M.2 2280 slots for SSD (PCI-e x2)
1 x M.2 2230 slot (PCI-e x1 ; A-E key slot occupied by the Wi-Fi+Bluetooth card)
Front I/O
1 x Power Button
1 x USB3.2 Gen2 Type-A
1 x USB3.2 Gen2 Type-C
1 x Headphone / Microphone
Rear I/O
2 x HDMI 2.1
1 x 2.5 GbE RJ45
3 x USB 2.0 Type-A
1 x USB 3.2 Gen2 Type-A
1 x DC-In
1 x DP 1.4
1 x Kensington lock slot
Power Supply
Input: AC 100-240V
Output: DC 19V/3.42A, 65W
VESA
VESA support
Supports 75 x 75 and 100 x 100 mm
*VESA Bracket to be purchased seperately.
Support OS
Win11 64bit
Environment
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
| Weight | 1.2 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.gigabyte.com
Warranty:
Gigabyte 3 Year Return to Manufacturer Warranty (Reseller only)
Warranty Length: 3 years
Warranty Type:Return-To-Manufacturer
Warranty Coverage: Gigabyte’s 3-year warranty includes a 7-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 7 days of purchase, it can be returned to Target under the 7-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 7 days the product will need to be returned directly to Gigabyte. Acccount credit will be unavailable outside of the 7-day DOA agreement.
Warranty Instructions: RESELLERS – please raise a Gigabyte RMA. Information needed for claims is Part/Model Number, Serial Number, Fault Description, Place of Purchase (Target Components Limited). Please make sure to comment in the email that you are a trade customer and not an end user. This should speed up Gigabyte processing of your request. Gigabyte will reply by email with a returns number and confirmation of the returns address which is currently:
GBT Tech. Co. Ltd Returns Department Unit 1 Fitzhamon Court Wolverton Mill Milton Keynes MK12 6LB
END USERS – in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.
Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty
There are currently no data sheets available for this product.
