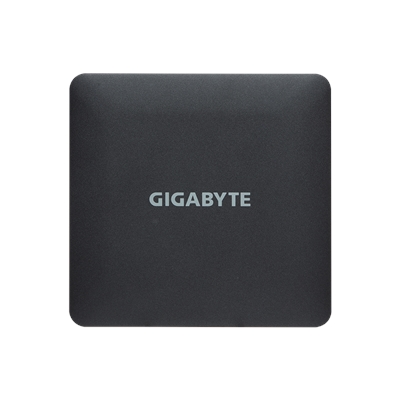

Gigabyte BRIX (GB-BRI3H-1315) Barebone Kit, Intel Core i3-1315U 4.5GHz 6 Core CPU, 2 x DDR4 SO-DIMM Slots, 1 x M.2-2280 Slot, 1 x 2.5 Inch SATA Slot, Wi-Fi 6 & Bluetooth 5.2
| Processor | Intel Core i3 |
| Processor Cores | 6 |
| Memory Type | 2x DDR4 |
| Max Memory | 64GB |
| Storage M.2 Slots | 1 |
| Storage 2.5 Inch Slots | 1 |
| VESA | Not Included |
£ 255.10
Guaranteed Safe Checkout
Upgrade to the future
Minimalism meets power
The most recent generation of mainstream BRIX products adopts an all-new chassis design. Computing performance has increased, but the design does not require an increase in the size of the chassis. Its appearance has curved, soft, and twisted lines with a liveliness that makes it very unobtrusive.
By the way it was assembled and layered, and designing oblique angles around the base, a sense of simplicity is created to achieve a lightweight design. This allows users to enjoy ultimate computing performance while also having a stylish and elegant product.
GIGABYTE BRIXS With Intel Core Processors – Uncompromised Performance
With 13th Gen Intel Core Processors, Intel advanced its hybrid design and made it even better than our previous product with 10th Gen Intel Processors. Faster Performance-cores means getting dedicated tasks done faster and easier. More Efficiency-cores means better multi-tasking. Great on-board graphics and best-in-class connectivity means a fully immersive experience and ultra-responsive wired and wireless connections.
Increasing performance gets more done
With the latest 13th Gen Intel Core Mobile Processors, Intel has taken its hybrid design to the next level. The new processors boast more powerful Performance-cores (P-cores), allowing for swift and seamless completion of tasks. The improved Efficient-cores (E-cores) enable even better multi-tasking, making it easier to tackle several tasks at once. These advanced processors also deliver stunning graphics and unparalleled connectivity, providing an unparalleled immersive display and lightning-fast wired and wireless connections.
Dimension
124 x 120 x 49.7 mm
CPU
13th Gen Intel Core i3-1315U Processor
6 Cores (2P+4E), 8 Threads, 10MB Cache
Frequency up to 4.5GHz(P Core Turbo), 15W
Memory
2 x SO-DIMM DDR4 slot
3200MHz
Max. 64GB
LAN
2.5 GbE LAN (Intel i226V)
Wifi Card
Intel AX203
Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz ; Bluetooth 5.2
Graphics
Intel Iris Xe Graphics, 96EU, 1.25GHz
Audio
Realtek ALC269 HD audio
Video
2 x HDMI 2.1 with HDCP 2.2, Max Resolution 3840×2160@60Hz
2 x Type-C, supports DP1.4a, Max Resolution 3840×2160@60Hz
Storage
1 x M.2 2280 slot for SSD (PCI-e Gen4 x4 / SATA3)
1 x 2.5? slot for HDD/SSD (9.0mm thick; SATA3)
Front I/O
1 x Headphone / Microphone
2 x USB3.2 Gen2 Type-A
2 x USB2.0 Type-A
1 x Power Button
Rear I/O
1 x 2.5 GbE RJ45
2 x HDMI 2.1
2 x USB3.2 Gen2 Type-C with DP alt Mode
1 x Kensington Lock Slot
1 x DC-In
Power Supply
Input: AC 100-240V
Output: DC 19.5V / 6.92A, 135W
VESA
VESA support
Supports 75 x 75 and 100 x 100 mm
*VESA Bracket to be purchased separately.
Support OS
Win11 64 bit
Win10 64 bit
Environment
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
| Weight | 1.75 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.gigabyte.com
Warranty:
Gigabyte 3 Year Return to Manufacturer Warranty (Reseller only)
Warranty Length: 3 years
Warranty Type:Return-To-Manufacturer
Warranty Coverage: Gigabyte’s 3-year warranty includes a 7-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 7 days of purchase, it can be returned to Target under the 7-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 7 days the product will need to be returned directly to Gigabyte. Acccount credit will be unavailable outside of the 7-day DOA agreement.
Warranty Instructions: RESELLERS – please raise a Gigabyte RMA. Information needed for claims is Part/Model Number, Serial Number, Fault Description, Place of Purchase (Target Components Limited). Please make sure to comment in the email that you are a trade customer and not an end user. This should speed up Gigabyte processing of your request. Gigabyte will reply by email with a returns number and confirmation of the returns address which is currently:
GBT Tech. Co. Ltd Returns Department Unit 1 Fitzhamon Court Wolverton Mill Milton Keynes MK12 6LB
END USERS – in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.
Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty
DESIGN
| Cable lock slot | Yes |
| Product colour | Black |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| On/off switch | Yes |
| Product type | Mini PC barebone |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
ENERGY MANAGEMENT
| AC adapter output voltage | 19.5 V |
| AC adapter output current | 6.92 A |
| Power supply | 135 W |
| AC input voltage | 100 - 240 V |
GRAPHICS
| Graphics card family | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card | Yes |
MEMORY
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
NETWORKING
| Bluetooth version | 5.2 |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| LAN controller | Intel I226-V |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX203 |
OPERATIONAL CONDITIONS
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 35 °C |
PERFORMANCE
| Windows operating systems supported | Windows 10, Windows 11 |
PORTS & INTERFACES
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
PROCESSOR
| Processor model | i3-1315U |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor cores | 6 |
| Processor threads | 8 |
| Built-in processor | Yes |
| Processor boost frequency | 4.5 GHz |
| Processor cache | 10 MB |
| CPU configuration (max) | 1 |
| Thermal Design Power (TDP) | 15 W |
| Processor generation | Intel Core i3-13xxx |
SOFTWARE
| Windows operating systems supported | Windows 10, Windows 11 |
STORAGE
| Storage drive interface | PCI Express, Serial ATA III |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD |
| SSD form factor | M.2 |
WEIGHT & DIMENSIONS
| Height | 49.7 mm |
| Width | 124 mm |
| Depth | 120 mm |
