Gigabyte BRIX (GB-BMPD-6005) Barebone Kit, Intel Pentium Silver N6005 2.8GHz Quad Core CPU,1 x DDR4 SO-DIMM Slot, 1 x M.2 2280 Slot, 1 x 2.5 Inch SATA Slot, Dual Band Wi-Fi & Bluetooth 4.2
| Processor | Intel Pentium |
| Processor Cores | 4 |
| Memory Type | 1x DDR4 |
| Max Memory | 16GB |
| Storage M.2 Slots | 1 |
| Storage 2.5 Inch Slots | 1 |
| VESA | Included |
£ 137.45
Guaranteed Safe Checkout
Intel Pentium Silver and Celeron Processor
BRIX use the newest Intel Pentium Silver and Celeron processors offer amazing video conferencing abilities, faster wireless connectivity, improved overall application and graphics performance, and long battery life.
BRIX with Intel Pentium Silver and Celeron processor family delivers unmatched balance of performance, experience and value for education and entry level computing.
The platform includes ultra-fast Wi-Fi , 4K media support, next-gen Intel UHD Graphics and improvements in security in your choice of platform and OS at a price point for users who want rich experiences at a great value.
Dual Storage Support
New generation of BRIX can not only support newest PCI-e /SATA based M.2 SSD (1×2280), but also can be loaded with a traditional 2.5 inch HDD/SSD as well.
It allows user to mixed dual storages at same time. Use M.2 SSD for faster boot up / load applications, and use large capacity HDD for all kind of media contents, files, documents without space limitation.
DDR4 2933MHz Support
GIGABYTE BRIX provides a 128-bit memory controller that supports DDR4 at up to 2933MHz. DDR4 is a type of synchronous dynamic random-access memory with a double data rate and high bandwidth interface.
The primary advantages of DDR4 over its predecessor, DDR3, include higher module density and lower voltage requirements, coupled with higher data rate transfer speeds.
VESA Support
Bundled with a VESA bracket, the GIGABYTE BRIX can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
System Overview
GIGABYTE BRIX mini PC with latest Intel 10nm Pentium Silver/ Celeron Processor offering tons useful I/O connectors.
It offer up to 4 USB 3.1 ports with 1 newest USB Type-C, HD audio headphone/MIC inputs, plus a convenience HDMI 2.0+ mDP video output allow user to hook up any type of monitor.
A gigabit ethernet speed up your internet/intranet connectivity.
SPECIFICATIONS
Dimension
56.22 mm x 103 mm x 116.52 mm (2.21inch x 4.06inch x 4.59inch)
Motherboard Size
105 x 110 mm
CPU
Intel Pentium Processor N6005
2.8GHz, 4 core (TDP 10W)
Memory
1 x SO-DIMM DDR4 slots
2933MHz
Max. 16GB
LAN
Gigabit LAN (Realtek 8111HS)
Wifi Card
Dual Band Wireless-802.11 AC
Graphics
Intel UHD Graphics 605
Audio
Realtek ALC255
HDMI Resolution (Max.)
HDMI2.0a
4096 x 2160 @ 60 Hz
Mini DP Resolution (Max.)
DP1.2a
4096 x 2160 @ 60Hz
Storage
Supports 2.5inch HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
Expansion Slots
1 x M.2 slot (2280_storage) PCIe X2/SATA
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

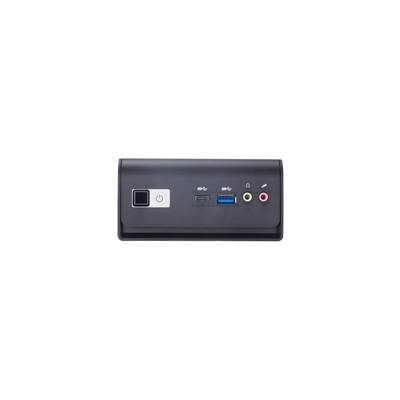

Front I/O
1 x USB3.0
1 x USB3.0 type C
1 x Headphone jack
1 x Microphone jack

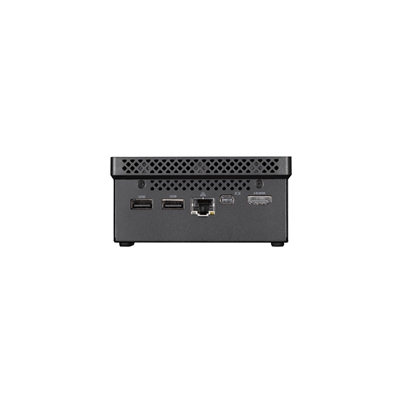

Rear I/O
1 x HDMI(2.0a)
1 x mini DisplayPort (1.2a)
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot
Power Supply
Input: AC 100-240V
Output: DC 19V
2.1A
VESA
Bracket included
Supports 75 x 75 and 100 x 100 mm
Support OS
Win10 64bit
Environment
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
| Weight | 1.01 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.gigabyte.com
Warranty:
Gigabyte 3 Year Return to Manufacturer Warranty (Reseller only)
Warranty Length: 3 years
Warranty Type:Return-To-Manufacturer
Warranty Coverage: Gigabyte’s 3-year warranty includes a 7-day DOA period covering manufacturing defects and faults. If a product becomes faulty within the first 7 days of purchase, it can be returned to Target under the 7-Day DOA agreement, at which point we will replace it where possible, or offer account credit. If it becomes faulty after the first 7 days the product will need to be returned directly to Gigabyte. Acccount credit will be unavailable outside of the 7-day DOA agreement.
Warranty Instructions: RESELLERS – please raise a Gigabyte RMA. Information needed for claims is Part/Model Number, Serial Number, Fault Description, Place of Purchase (Target Components Limited). Please make sure to comment in the email that you are a trade customer and not an end user. This should speed up Gigabyte processing of your request. Gigabyte will reply by email with a returns number and confirmation of the returns address which is currently:
GBT Tech. Co. Ltd Returns Department Unit 1 Fitzhamon Court Wolverton Mill Milton Keynes MK12 6LB
END USERS – in the first instance, please return it to the reseller you originally purchased it. Target is unable to deal with end-user warranty issues. In the event an end-user is unable to contact the reseller, they must contact Gigabyte directly via Gigabyte Returns.
Warranty Information: https://www.gigabyte.com/uk/Support/Consumer/Warranty
AUDIO
| Built-in speaker(s) | No |
| Built-in speaker(s) | N |
COLOUR
| Colour of product | Black |
DESIGN
| Cable lock slot | Yes |
| Product colour | Black |
| Panel mounting interface | 75 x 75 mm |
| Cable lock slot | Y |
| Colour of product | Black |
| On/off switch | Yes |
| Product type | Mini PC barebone |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| VESA mounting interfaces compatibility | 75 x 75 mm |
| On/off switch | Y |
| Product type | Mini PC barebone |
| Cable lock slot type | Kensington |
| VESA mounting | Y |
ENERGY MANAGEMENT
| Power supply type | External AC adapter |
| AC adapter output voltage | 19 V |
| AC adapter output current | 2.1 A |
| Power supply type | External AC adapter |
| AC adapter output voltage | 19 V |
| AC adapter output current | 2.1 A |
| AC input voltage | 100 - 240 V |
| AC input voltage | 100 - 240 V |
GRAPHICS
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card | Yes |
| Graphics adapter family | Intel |
| On-board graphics adapter model | Intel® UHD Graphics |
| On-board graphics adapter | Y |
LOGISTICS DATA
| Harmonized System (HS) code | 84713000 |
MANAGEMENT FEATURES
| On/off switch | Y |
MEMORY
| Maximum internal memory | 16 GB |
| Maximum internal memory | 16 GB |
| Supported memory clock speeds | 2933 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 |
| Supported memory clock speeds | 2933 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 |
NETWORKING
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN connection | Y |
| Bluetooth | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
OPERATIONAL CONDITIONS
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature range (T-T) | -20 - 60 °C |
| Operating temperature range (T-T) | 0 - 35 °C |
PERFORMANCE
| Harmonized System (HS) code | 84713000 |
PORTS & INTERFACES
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DC-in jack | Yes |
| DVI port | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Mini DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports quantity | 1 |
| Headphone out | 1 |
| Microphone in | Y |
| DC-in jack | Y |
| DVI port | Y |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Mini DisplayPort quantity | 1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity | 1 |
PROCESSOR
| Processor model | N6005 |
| Processor manufacturer | Intel |
| Processor model | N5105 |
| Processor family | Intel® Pentium® Silver |
| Processor manufacturer | Intel |
| Processor cores | 4 |
| Processor threads | 4 |
| Built-in processor | Yes |
| Processor boost frequency | 3.3 GHz |
| Processor cache | 4 MB |
| CPU configuration (max) | 1 |
| Processor family | Intel® Pentium® Silver |
| Processor frequency | 2 GHz |
| Thermal Design Power (TDP) | 10 W |
| Processor cores | 4 |
| Built-in processor | Y |
| Processor cache | 4 MB |
| CPU configuration (max) | 1 |
| Processor clock speed | 2 GHz |
| Thermal Design Power (TDP) | 10 W |
PROCESSOR SPECIAL FEATURES
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Enhanced Intel SpeedStep Technology | Y |
| Idle States | Y |
| Intel Trusted Execution Technology | N |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Intel 64 | Y |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel Virtualization Technology (VT-x) | Y |
STORAGE
| Storage drive interface | Serial ATA III |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD |
| Storage drive interface | Serial ATA III |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD |
TECHNICAL DETAILS
| VESA mounting interfaces compatibility | 75 x 75 mm |
| Processor number of cores | 4 |
VIDEO
| Graphics adapter family | Intel |
| On-board graphics adapter | Y |
WEIGHT & DIMENSIONS
| Height | 116.5 mm |
| Width | 562.2 mm |
| Depth | 103 mm |
| Height | 116.5 mm |
| Width | 562.2 mm |
| Depth | 103 mm |
