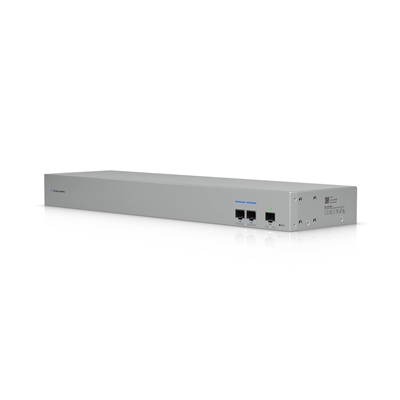

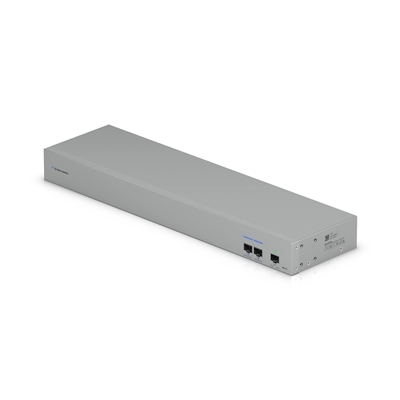

Ubiquiti USW-WAN UniFi WAN 2 Port 10G SFP+ Network Switch
| Ports | 4 |
| Managed/Unmanaged | Managed |
| Speed | 10/100/1000 |
£ 179.36
Guaranteed Safe Checkout
Ubiquiti 10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.
Specifications
Overview
Dimensions
442.4 x 120 x 43.7 mm
(17.4 x 4.72 x 1.7″)
Port Layout
1 GbE RJ45
1
(1G/100M/10M)
10G SFP+
3
(10G/1G)
Redundancy
(2) AC inputs
Form Factor
Rack mount (1U)
Performance
Switching Capacity
20 Gbps
Total Non-Blocking Throughput
10 Gbps
Forwarding Rate
15 Mpps
Hardware
Max. Power Consumption
13W
Power Method
(2) Universal input, 100—240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
(2) AC/DC, internal, 36W
Supported Voltage Range
100—240V AC
Management
Ethernet
Weight
Without mounting brackets: 2.2 kg (4.85 lb)
With mounting brackets: 2.3 kg (5.1 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
ESD Protection
Air: ± 16kV, contact: ± 22kV
Ambient Operating Temperature
-5 to 40 C (23 to 104 F)
Ambient Operating Humidity
10 to 90% noncondensing
LEDs
Ethernet – Yes
SFP+ – Yes
System – Yes
Certifications
CE, FCC, IC, Anatel: 03715-25-08356
NDAA Compliant
Yes
Software
Application Requirements
UniFi Network
Version 9.1.119 and later
| Weight | 5.05 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATION
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
DATA TRANSMISSION
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 15 Mpps |
| Throughput | 10 Gbit/s |
DESIGN
| Rack mounting | Yes |
| Form factor | 1U |
| LED indicators | Network, System |
| Product colour | Grey |
| Reset button | Yes |
| Housing material | SGCC |
ENERGY MANAGEMENT
| Power source | AC/DC |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 13 W |
| Power supply included | Yes |
NETWORKING
| 10G support | No |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 40 °C |
PACKAGING CONTENT
| Cables included | Power |
| Rack mount kit | Yes |
PACKAGING DATA
| Cables included | Power |
| Rack mount kit | Yes |
PORTS & INTERFACES
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| SFP+ module slots quantity | 3 |
| Power connector | AC/DC |
| Power cables quantity | 2 |
POWER OVER ETHERNET (POE)
| Power over Ethernet (PoE) | No |
TECHNICAL DETAILS
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
WEIGHT & DIMENSIONS
| Weight | 2.2 kg |
| Height | 43.7 mm |
| Width | 442.4 mm |
| Depth | 120 mm |
