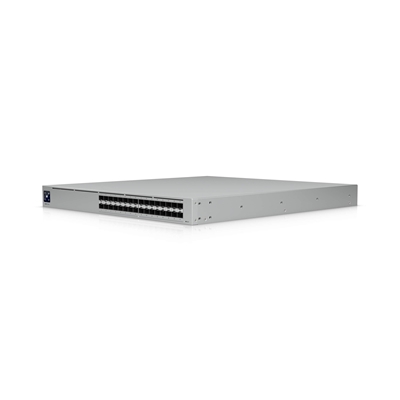

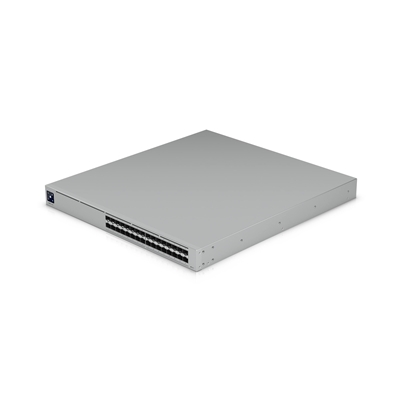

Ubiquiti USW-Pro-XG-Aggregation UniFi Switch Pro XG Aggregation 32 Port 25G Switch

Ubiquiti Professional-grade 32-port, Layer 3 Etherlighting switch for high-capacity 25G SFP28 connections.

Overview

Dimensions
442.4 x 43.7 x 480 mm
(17.4 x 1.7 x 18.9″)

Port Layout
25G SFP28
32
(25G/10G/1G)

Redundancy
DC Power Backup

Layer 3
Yes

Form Factor
Rack Mount (1U)

Etherlighting
Yes

Performance

Switching Capacity
1.6 Tbps

Total Non-Blocking Throughput
800 Gbps

Forwarding Rate
1.2 Bpps

Supported VLANs
1,000

MAC Address Table Size
32,000

L3 Table Size
ARP Entries
128,000
IPv4 Routes
256,000

Packet Buffer Size
8 MB

Access Lists
IPv4 -256
MAC – 256

Layer 3 Features
DHCP Server (Local Networks) – Yes
DHCP Relay – Yes
Inter-VLAN Routing (Local Networks)- Yes
Static Routing (Local Networks) – Yes

Layer 2 Features
LACP Port Aggregation – Yes
STP & RSTP – Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)- Yes
IGMP Snooping – Yes
802.1X Control – Yes
MAC-Based ACLs & Device Isolation – Yes
DHCP Snooping & Guarding – Yes
Egress Rate Limit – Yes
Flow Control – Yes
Storm Control – Yes
Multicast & Broadcast Rate Limiting – Yes
MAC Address Blocking – Yes
IP-Based ACLs & Network Isolation – Yes
MAC-Based Port Restriction – Yes
Port Isolation – Yes
Port Mirroring – Yes
Jumbo Frames – Yes
LLDP-MED – Yes
Voice VLAN – Yes
Loop Protection – Yes

Hardware

Max. Power Consumption
200W

Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input

Power Input Method
AC input

Power Supply
AC/DC, internal, 200W

Supported Voltage Range
100—240V AC

Management
Ethernet
AR

Heat Dissipation (Excluding PoE Output)
457 BTU/hr

Weight
Without mounting bracket: 7.1 kg (15.7 lbs)
With mounting bracket:7.2 kg (15.9 lbs)

Enclosure Material
SGCC steel

Mount Material
SGCC steel

Supported Rack Depth
482.6 mm (19″) four-post racks
Posts depths ranging from 600 to 1,066 mm (23.6-42?)

LCM Display
1.3″ touchscreen

ESD Protection
Air: ± 12kV, contact: ± 8kV

Ambient Operating Temperature
-5 to 40 C (23 to 104 F)

Ambient Operating Humidity
10 to 90% noncondensing

Etherlighting
SFP28 – Yes

LEDs
RPS – Yes

NDAA Compliant
Yes

Certifications
CE, FCC, IC, Anatel: 05977-25-08356
