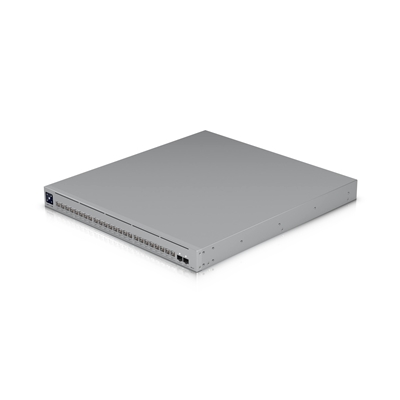

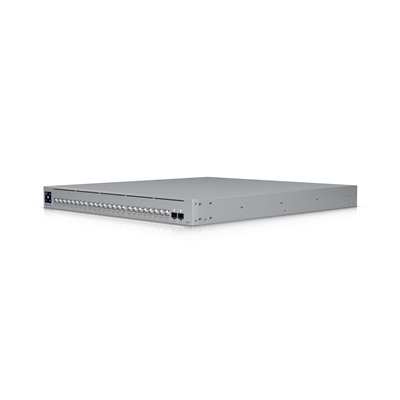

Ubiquiti USW-Pro-XG-24-PoE UniFi Switch 24 Port Gigabit Managed Switch with 16 x 10 GbE ports and 8 x 2.5 GbE ports
| Ports | 24 |
| Managed/Unmanaged | Managed |
| Speed | 10/100/1000 |
£ 1,257.69
Guaranteed Safe Checkout
Ubiquiti USW-Pro-XG-24-PoE UniFi Switch
Specifications
Overview
Dimensions
442 x 480 x 44 mm
(17.4 x 18.9 x 1.7″)
Port Layout
2.5 GbE RJ45
8 (All PoE+++)
(2.5G/1G/100M/10M)
10 GbE RJ45
16 (All PoE+++)
(10G/5G/2.5G/1G/100M/10M)
25G SFP28
2
(25G/10G/1G)
Max. PoE Output
Up to PoE+++
Total PoE Availability
720W
Redundancy
DC Power Backup
Layer 3
Yes
Form Factor
Rack mount (1U)
Etherlighting
Yes
Performance
Switching Capacity
460 Gbps
Total Non-Blocking Throughput
230 Gbps
Forwarding Rate
342 Mpps
Supported VLANs
1,000
MAC Address Table Size
128,000
L3 Table Size
ARP Entries
128,000
IPv4 Routes
256,000
Packet Buffer Size
8 MB
Access Lists
IPv4
256
MAC
256
Layer 3 Features
DHCP Server (Local Networks) – Yes
DHCP Relay – Yes
Inter-VLAN Routing (Local Networks) – Yes
Static Routing (Local Networks) – Yes
Layer 2 Features
LACP Port Aggregation – Yes
STP & RSTP – Yes
QoS (DSCP) – Yes
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)- Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) – Yes
IGMP Snooping – Yes
802.1X Control – Yes
MAC-Based ACLs & Device Isolation – Yes
DHCP Snooping & Guarding – Yes
Egress Rate Limit – Yes
Flow Control- Yes
Storm Control – Yes
Multicast & Broadcast Rate Limiting – Yes
MAC Address Blocking – Yes
IP-Based ACLs & Network Isolation – Yes
MAC-Based Port Restriction – Yes
Port Isolation – Yes
Port Mirroring – Yes
Jumbo Frames – Yes
LLDP-MED – Yes
Voice VLAN – Yes
Loop Protection – Yes
Hardware
PoE Ports
PoE+++
24
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
30W
PoE++
60W
PoE+++
90W
Max. Power Consumption
150W (Excluding PoE Output)
870W (Including PoE Output)
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 870W
Supported Voltage Range
100—240V AC
Management
Ethernet
AR
Weight
Without mounting brackets: 7.9 kg (17.4 lb)
With mounting brackets: 8 kg (17.6 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel

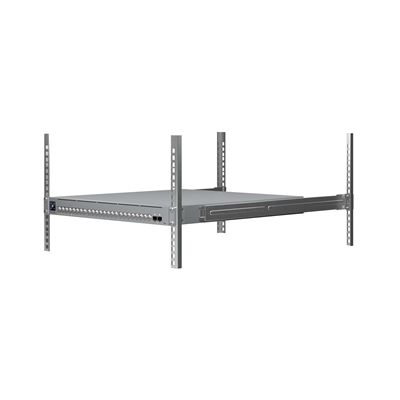

Supported Rack Depth
482.6 mm (19″) four-post racks
Posts depths ranging from 600 to 1,066 mm (23.6-42″)
LCM Display
1.3″ touchscreen
ESD Protection
Air: ± 30kV, contact: ± 20kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting
Ethernet – Yes
SFP28 – Yes
LEDs
RPS – Yes
NDAA Compliant – Yes
Certifications
CE, FCC, IC, Anatel
Software
Application Requirements
UniFi Network
Version 9.1.120 and later
| Weight | 5.05 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATION
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
DATA TRANSMISSION
| MAC address table | 128000 entries |
| Switching capacity | 460 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 342 Mpps |
| Packet buffer memory | 8 MB |
| Static route | Yes |
| Throughput | 230 Gbit/s |
DESIGN
| Rack mounting | Yes |
| Form factor | 1U |
| Backlight display | Yes |
| Product colour | Grey |
| Stackable | Yes |
| Reset button | Yes |
| Housing material | SGCC |
| Display type | LCM |
ENERGY MANAGEMENT
| Power source | AC/DC |
| Redundant power supply (RPS) support | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 870 W |
| Power supply included | Yes |
MANAGEMENT FEATURES
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
MULTICAST FEATURES
| Multicast support | Yes |
NETWORKING
| Flow control support | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Number of VLANs | 1000 |
| VLAN support | Yes |
| 10G support | Yes |
| Virtual LAN features | Interface-based VLAN, Voice VLAN |
| IPv4 routes | 256000 |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 40 °C |
PACKAGING CONTENT
| Cables included | Power |
| Rack mount kit | Yes |
PACKAGING DATA
| Cables included | Power |
| Rack mount kit | Yes |
PORTS & INTERFACES
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Power connector | AC/DC |
| SFP28 ports quantity | 2 |
| 2.5G Ethernet (copper) ports quantity | 8 |
| 10G Ethernet (copper) ports quantity | 16 |
POWER OVER ETHERNET (POE)
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 720 W |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet (PoE) type supported | PoE+++ |
SECURITY
| IGMP snooping | Yes |
| Loop protection | Yes |
| Access Control List (ACL) IPv4 entries | 256 |
| DHCP features | DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping |
TECHNICAL DETAILS
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
WEIGHT & DIMENSIONS
| Weight | 7.9 kg |
| Height | 44 mm |
| Width | 442 mm |
| Depth | 480 mm |
