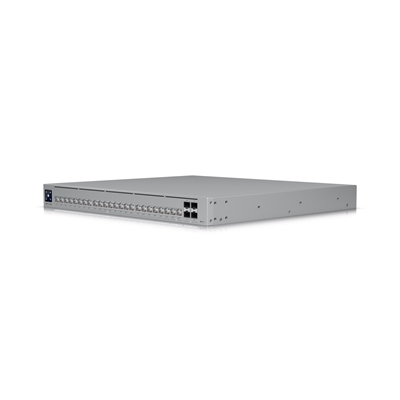

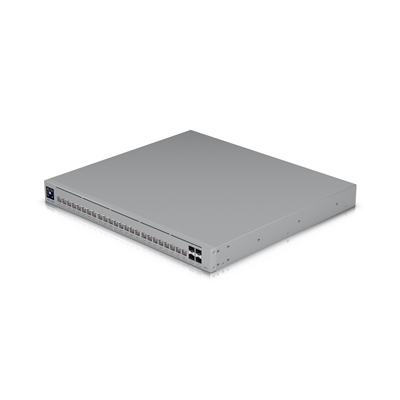

Ubiquiti USW-PRO-HD-24-POE UniFi Switch Pro HD 24 Professional Layer 3 POE++ Managed Switch

Professional-grade, Layer 3 Etherlighting switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.

Dimensions
442 x 400 x 44 mm
(17.4 x 15.7 x 1.7″)

Port Layout
2.5 GbE RJ45
22 (All PoE++)

10 GbE RJ45
2 (All PoE++)

10G SFP+
4

Max. PoE Output
Up to PoE++

Total PoE Availability
600W

Redundancy
DC Power Backup

Layer 3
Yes

Form Factor
Rack mount (1U)

Etherlighting
Yes

Switching Capacity
230 Gbps

Total Non-Blocking Throughput
115 Gbps

Forwarding Rate
171 Mpps

Supported VLANs
1000

MAC Address Table Size
32000

L3 Table Size
ARP Entries
12,000

IPv4 Routes
12,000

Packet Buffer Size
2 MB

DHCP Server (Local Networks)
Yes

DHCP Relay
Yes

Inter-VLAN Routing (Local Networks)
Yes

Static Routing (Local Networks)
Yes

LACP Port Aggregation
Yes

STP & RSTP
Yes

QoS (DSCP)
Yes

Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Yes

Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
Yes

IGMP Snooping
Yes

802.1X Control
Yes

MAC-Based ACLs & Device Isolation
Yes

DHCP Snooping & Guarding
Yes

Egress Rate Limit
Yes

Flow Control
Yes

Storm Control
Yes

Multicast & Broadcast Rate Limiting
Yes

MAC Address Blocking
Yes

IP-Based ACLs & Network Isolation
Yes

MAC-Based Port Restriction
Yes

Port Isolation
Yes

Port Mirroring
Yes

Jumbo Frames
Yes

LLDP-MED
Yes

Voice VLAN
Yes

Loop Protection
Yes

PoE Ports
PoE++
24

Max. PoE Wattage per Port by PSE
PoE
15.4W

PoE+
32W

PoE++
64W

Max. Power Consumption
60W (Excluding PoE Output)
660W (Including PoE Output)

Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input

Power Input Method
AC Input

Power Supply
AC/DC, internal, 660W

Supported Voltage Range
100—240V AC

Management
Ethernet
AR

Weight
Without mounting brackets: 6.2 kg (13.7 lb)
With mounting brackets: 6.3 kg (13.9 lb)

Enclosure Material
SGCC steel

LCM Display
1.3″ touchscreen

Certifications
CE, FCC, IC
