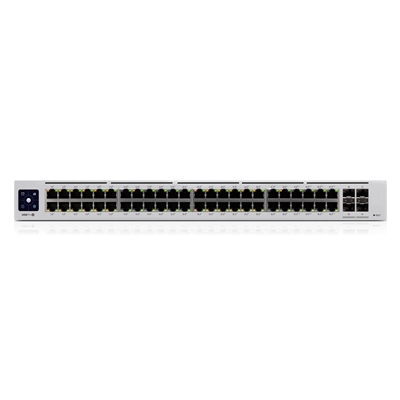

Ubiquiti USW-PRO-48-POE UniFi Gen2 48 Port PoE Gigabit Network Switch
| Speed | Gigabit |
| Ports | 48 |
| POE Capability | 24/48v |
| Managed or Unmanaged | Managed |
| Rack Mountable | Yes |
£ 771.27
Guaranteed Safe Checkout
48-port switch with (40) 802.3at PoE+ ports, (8) 802.3bt PoE++ ports, and (4) 10 GB SFP+ ports. Powerful second-generation UniFi switching.
UniFi Switch Pro 48 PoE is a fully managed Layer 3 switch with (8) 802.3bt (PoE++) and (40) 802.3at (PoE+) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 48 PoE features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 PoE is the ideal access layer switch for any UniFi solution – it combines up to 600W of near-silent PoE power with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Features
(8) Gigabit RJ45 802.3bt PoE++ ports
(40) Gigabit RJ45 802.3at PoE+ ports
(4) 10G SFP+ ports
Layer 2 and Layer 3 features
600W maximum PoE power
UniFi SmartPower RPS DC input
Near-silent cooling
1.3″ touchscreen display
Managed by UniFi Network Controller
Specifications
Dimensions
442.4 x 399.6 x 43.7 mm
(17.42 x 15.73 x 1.72″)
Weight
6.25 kg (13.78 lb)
6.34 kg (13.98 lb)
Interfaces
(48) 10/100/1000 RJ45 Ports
(4) 1/10G SFP+ Ethernet Ports
Management
Ethernet In-Band
Power Supply
100-240VAC/50-60 Hz
52VDC, 11.54A; 11.5VDC, 5.22A
AC/DC, Internal, 120W
100 to 240VAC
| Weight | 8.0 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATION
| Certification | CE, FCC, IC |
DATA TRANSMISSION
| Switching capacity | 176 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 130.944 Mpps |
| Throughput | 88000 Mpps |
| Static route | Yes |
DESIGN
| Certification | CE, FCC, IC |
| Rack mounting | Yes |
| Form factor | 1U |
| LED indicators | Activity, Link, PoE, Speed, System |
| Product colour | Silver |
ENERGY MANAGEMENT
| Number of power supply units | 1 |
| Input current | 11.54 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| DC input voltage | 44 - 57 V |
| Power supply included | Yes |
LOGISTICS DATA
| Harmonized System (HS) code | 85176990 |
MANAGEMENT FEATURES
| Switch layer | L2/L3 |
| Switch type | Managed |
NETWORKING
| Full duplex | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Flow control support | Yes |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| 10G support | Yes |
| Auto-sensing | Yes |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 40 °C |
PERFORMANCE
| Harmonized System (HS) code | 85176990 |
PORTS & INTERFACES
| Installed SFP+ modules quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| SFP+ module slots quantity | 4 |
POWER OVER ETHERNET (POE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 40 |
| Total Power over Ethernet (PoE) budget | 600 W |
| Power over Ethernet (PoE) power per port | 64 W |
SECURITY
| Authentication type | IEEE 802.1x, RADIUS |
| DHCP features | DHCP server |
WEIGHT & DIMENSIONS
| Weight | 6.25 kg |
| Height | 43.7 mm |
| Width | 442.4 mm |
| Depth | 399.6 mm |
