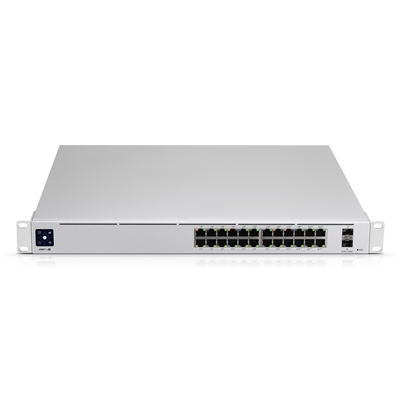

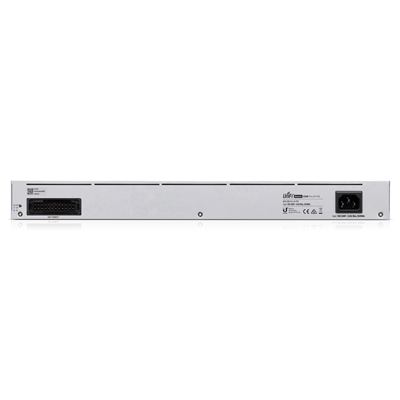

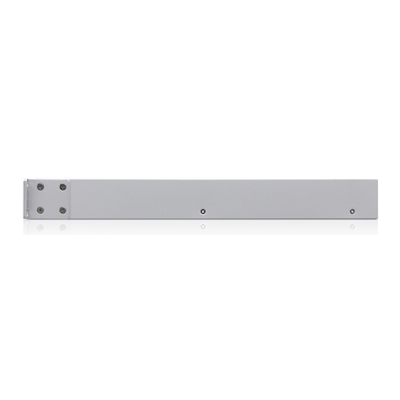

Ubiquiti USW-PRO-24-POE UniFi Gen2 24 Port PoE Gigabit Network Switch
| Speed | Gigabit |
| Ports | 24 |
| POE Capability | 24/48v |
| Managed or Unmanaged | Managed |
| Rack Mountable | Yes |
£ 481.57
Guaranteed Safe Checkout
Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.
* Available in a future software release
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Synchronized LCM Displays
Touch one to wake up all the screens and view a rich set of information.
System Information
Errors
Warnings
Port Statistics
PoE Power
Throughput
And a lot more…
Specifications
Power Budget
AC/DC, Internal, 450W
RJ45
(24) 10/100/1000 RJ45 Ports
PoE+
(1-16) IEEE 802.3af/at
PoE++
(17-24) 60W IEEE 802.3bt
SFP+
(2) 1/10G SFP+ Ethernet Ports
LCM
Yes
USP-RPS Power Redundancy
Yes
Dimensions
442.4 x 285.4 x 43.7 mm
| Weight | 5.65 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATION
| Certification | CE, FCC, IC |
DATA TRANSMISSION
| MAC address table | 16000 entries |
| Switching capacity | 88 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 65.472 Mpps |
| Packet buffer memory | 2 MB |
| Throughput | 44000 Mpps |
| Static route | Yes |
DESIGN
| Certification | CE, FCC, IC |
| Rack mounting | Yes |
| Form factor | 1U |
| LED indicators | Activity, Link, PoE, Speed, System |
| Product colour | Silver |
| Reset button | Yes |
| Display type | LCM |
ENERGY MANAGEMENT
| Number of power supply units | 1 |
| Power source | AC |
| Redundant power supply (RPS) support | Yes |
| Input current | 7.69 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| DC input voltage | 52 V |
| Power consumption (max) | 450 W |
| Power supply included | Yes |
LOGISTICS DATA
| Harmonized System (HS) code | 85176990 |
MANAGEMENT FEATURES
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| Switch type | Managed |
NETWORKING
| Full duplex | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Flow control support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Y |
| Number of VLANs | 1000 |
| Spanning tree protocol | Y |
| VLAN support | Yes |
| 10G support | Yes |
| Auto-sensing | Y |
| IPv4 routes | 64 |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 40 °C |
PERFORMANCE
| Harmonized System (HS) code | 85176990 |
PORTS & INTERFACES
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP+ module slots quantity | 2 |
| Power connector | AC-in jack |
POWER OVER ETHERNET (POE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 400 W |
| Power over Ethernet (PoE) power per port | 64 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
SECURITY
| IGMP snooping | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| DHCP features | DHCP relay, DHCP server, DHCP snooping |
WEIGHT & DIMENSIONS
| Weight | 4.3 kg |
| Height | 43.7 mm |
| Width | 442.4 mm |
| Depth | 285.4 mm |
