Ubiquiti USW-LITE-16-POE UniFi Switch Lite 16 Port Gigabit Managed Switch with 8 POE+ Ports
| Speed | Gigabit |
| Ports | 16 |
| POE Capability | 48v |
| Managed or Unmanaged | Managed |
| Rack Mountable | No |
£ 143.59
Guaranteed Safe Checkout
The Switch Lite 16 PoE (USW Lite 16 PoE) is a fully managed switch with (16) GbE RJ45 ports, including (8) 802.3at PoE+ ports, and a 45W total PoE supply for your UniFi access points and other PoE devices. The USW Lite 16 PoE also offers an extensive suite of Layer 2 switching protocols, and can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
(8) GbE, 802.3at PoE+ RJ45 ports
(8) GbE RJ45 ports
45W total PoE supply
Fanless, silent cooling

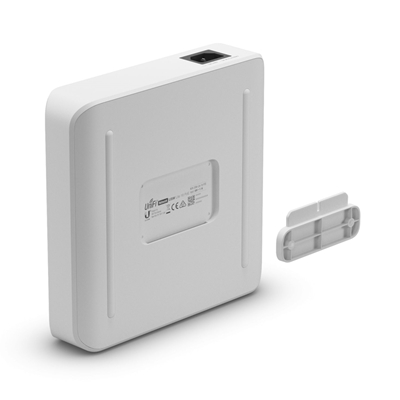

Wall-mountable (kit included)
Specifications
Dimensions
191.7 x 185 x 43.7 mm (7.55 x 7.28 x 1.72″)
Weight
1.2 kg (2.65 lb)
Total Non-Blocking Line Rate
16 Gbps
Max. Power Consumption
15W
Power Method
Universal AC Input: 100-240VAC
Power Supply
Internal 60W AC/DC Power Supply
Networking Interfaces
(16) 10/100/1000 Mbps Ethernet RJ45
PoE Interfaces
(8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max PoE+ Wattage per Port by PSE
30W
Modes
SMB Layer 2 PoE Gigabit Ethernet Switch
| Weight | 1.2 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATION
| Certification | CE, FCC, IC |
DATA TRANSMISSION
| Switching capacity | 16 Gbit/s |
DESIGN
| Certification | CE, FCC, IC |
| LED indicators | Network, PoE, System |
| Wall mountable | Yes |
| Product colour | White |
ENERGY MANAGEMENT
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 15 W |
| Power supply included | Yes |
LOGISTICS DATA
| Harmonized System (HS) code | 85176990 |
MANAGEMENT FEATURES
| Switch layer | L2 |
NETWORKING
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -15 - 40 °C |
PERFORMANCE
| Harmonized System (HS) code | 85176990 |
PORTS & INTERFACES
| Installed SFP+ modules quantity | 0 |
| Installed SFP modules quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Power connector | AC-in jack |
POWER OVER ETHERNET (POE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
WEIGHT & DIMENSIONS
| Weight | 1.2 kg |
| Height | 43.7 mm |
| Width | 191.7 mm |
| Depth | 185 mm |
