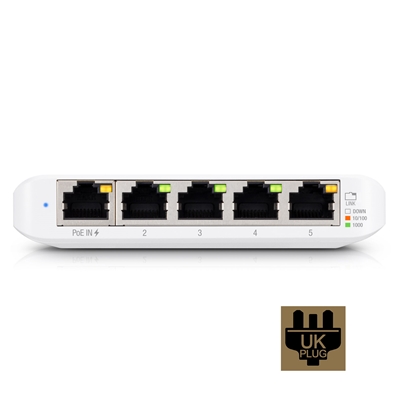

Ubiquiti USW-FLEX-MINI UniFi USW Flex Mini 5 Port Smart Managed POE/USB C Powered Gigabit Network Switch (UK Plug) - Image 1

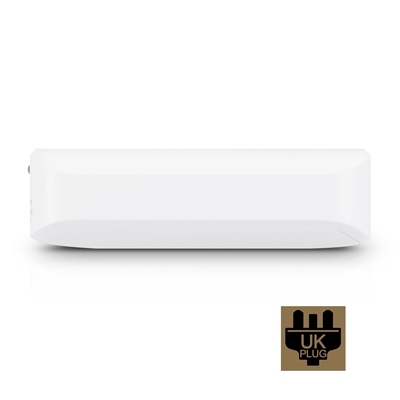

Ubiquiti USW-FLEX-MINI UniFi USW Flex Mini 5 Port Smart Managed POE/USB C Powered Gigabit Network Switch (UK Plug) - Image 2

Click to enlarge

Ubiquiti USW-FLEX-MINI UniFi USW Flex Mini 5 Port Smart Managed POE/USB C Powered Gigabit Network Switch (UK Plug)

Speed	Gigabit
Ports	5
POE Capability	No
Managed or Unmanaged	Managed
Rack Mountable	No

£ 23.51

Add to wishlist

Guaranteed Safe Checkout

PLEASE NOTE THAT THIS PRODUCT INCLUDES A FITTED UK PLUG

5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter

Build and expand your network with the UniFi Switch, part of the Ubiquiti UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.

Works with UniFi Network Controller
Manage Your Networks from a Single Control Plane
Intuitive and Robust Configuration, Control and Monitoring
Remote Firmware Upgrade
Users and Guests
Guest Portal/Hotspot Support

Specifications

Dimensions
107.16 x 70.15 x 21.17 mm
(4.22 x 2.76 x 0.83″)

Weight
150 g
(5.29 oz)

Networking Interfaces
(5) 10/100/1000 Mbps RJ45 Ports

PoE In Interface
802.3af/at PoE (Pins 1, 2+; 3, 6-)

Max Power Consumption
2.5W

Power Method
USB Type C, 5V
802.3af/at PoE (44 – 57VDC, 0.05 – 0.04A)

Power Supply
5V, 1A Power Adapter (Included only with the single-pack of the USW-Flex-Mini)

Voltage Range
USB Type C – 4.7 – 5.2VDC
802.3af/at PoE – 44 – 57VDC

LEDs
System – Status
RJ45 Data Ports – Link/Speed/Activity

ESD/EMP Protection
± 16kV Air, ± 12kV Contact

Operating Temperature
-5 to 45C (23 to 113F)

Operating Humidity
10 to 90% Noncondensing

Certifications
CE, FCC, IC

Weight	0.24 lbs
Manufacturer	UBIQUITI
EAN	817882029698
Manufacturer Code	USW-FLEX-MINI-UK

Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

CERTIFICATION

Certification	CE, FCC, IC

DATA TRANSMISSION

Switching capacity	10 Gbit/s
Forwarding rate	7.44 Mpps
Throughput	5 Gbit/s

DESIGN

Certification	CE, FCC, IC
Rack mounting	No
LED indicators	LAN, System
Product colour	White
Reset button	Yes
Housing material	Polycarbonate (PC)

ENERGY MANAGEMENT

Power source	PoE/USB
Input voltage	5 V
DC input voltage	44 - 57 V
Power consumption (max)	2.5 W
Power supply included	Yes

MANAGEMENT FEATURES

Switch layer	L2
Switch type	Managed

NETWORKING

10G support	No

OPERATIONAL CONDITIONS

Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-5 - 45 °C

OTHER FEATURES

Input voltage	5 V

PACKAGING CONTENT

Manual	Yes

PACKAGING DATA

Manual	Yes

PORTS & INTERFACES

Gigabit Ethernet (copper) ports quantity	5
Installed SFP+ modules quantity	0
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	5
Power connector	USB
