Ubiquiti USW-FLEX-XG UniFi Switch Flex XG Managed L2 10G Ethernet Switch
| Speed | 10G |
| Ports | 2 |
| POE Capability | 25W |
| Managed or Unmanaged | Managed |
| Rack Mountable | Yes |
£ 209.56
Guaranteed Safe Checkout
Ubiquiti Unifi USW-FLEX-XG 5 Port Layer 2 Managed Gigabit Switch
The Switch Flex XG (USW Flex XG) is a fully managed, mult-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. The USW Flex XG sports slim, compact housing and can be mounted on a desktop*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Key Features
• (1) GbE, 802.3at PoE+ RJ45 input.

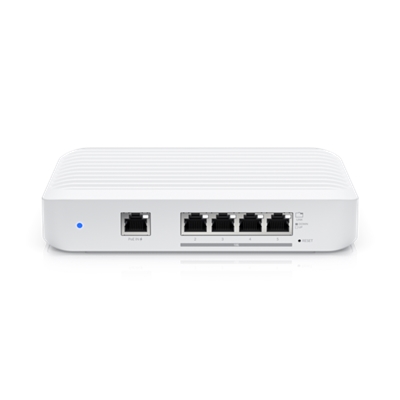

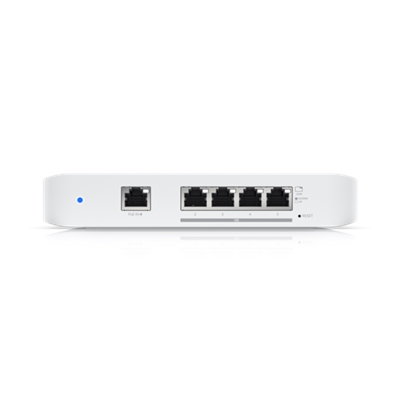

• (4) 10GbE RJ45 ports.

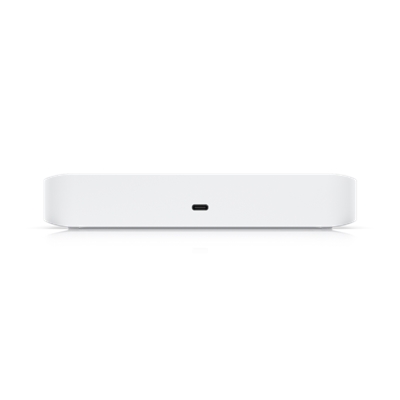

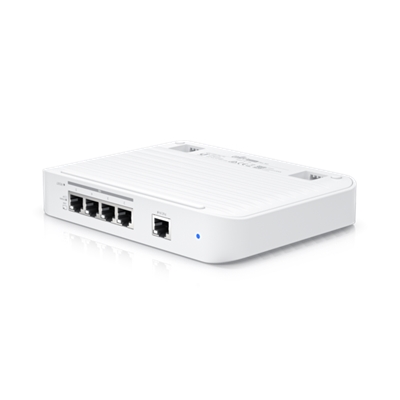

• Compact, slim housing.
• Can be powered with a 5V, 5A USB-C adapter.
Specifications
Edition
Smart Managed Switch
Form Factor
Desktop
Total Network Ports
1 x 10/100/1000 (Gigabit) RJ-45 (PoE Pass-through)
PoE Support Type
PoE+
No. of Ports Providing PoE
1 x 10/100/1000 (Gigabit) RJ-45 (PoE Pass-through)
Switching Capacity
82 Gbps
Non-Blocking Throughput
41 Gbps
Forwarding Rate
61.012 Mpps
Network Protocols
802.3at PoE
Max. Power Consumption
25 W
Max. PoE Wattage per Port
Power Supply
External Power Supply (Included)
Material
Polycarbonate
Dimensions (WxHxD)
185 x 32 x 135 mm
Weight
1.2 kg
| Weight | 1.2 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
DATA TRANSMISSION
| Switching capacity | 82 Gbit/s |
| Forwarding rate | 61.012 Mpps |
| Throughput | 41 Gbit/s |
DESIGN
| Rack mounting | No |
| LED indicators | Yes |
| Product colour | White |
| Reset button | Yes |
| Housing material | Polycarbonate (PC) |
ENERGY MANAGEMENT
| Input current | 5 A |
| AC input voltage | 90 - 264 V |
| DC input voltage | 5 V |
| Power consumption (max) | 25 W |
| Power supply included | Yes |
LOGISTICS DATA
| Harmonized System (HS) code | 85176990 |
MANAGEMENT FEATURES
| Switch layer | L2 |
| Switch type | Managed |
NETWORKING
| Networking standards | IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| 10G support | Yes |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 45 °C |
PERFORMANCE
| Harmonized System (HS) code | 85176990 |
PORTS & INTERFACES
| Installed SFP+ modules quantity | 0 |
| Installed SFP modules quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
POWER OVER ETHERNET (POE)
| Power over Ethernet (PoE) | Yes |
WEIGHT & DIMENSIONS
| Weight | 1.2 kg |
| Height | 32 mm |
| Width | 135 mm |
| Depth | 185 mm |
