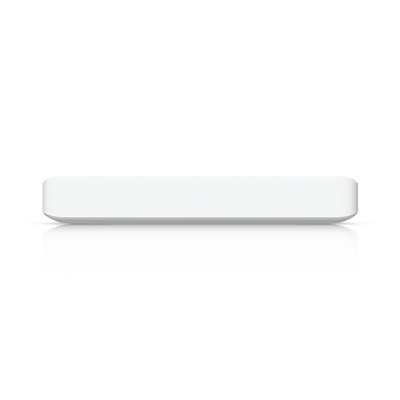

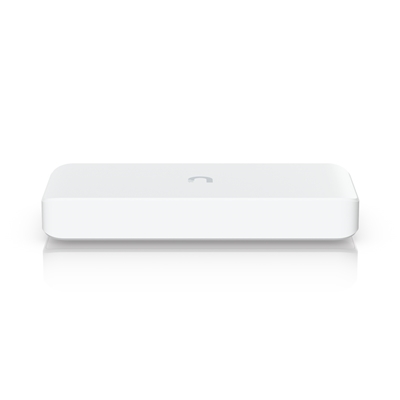

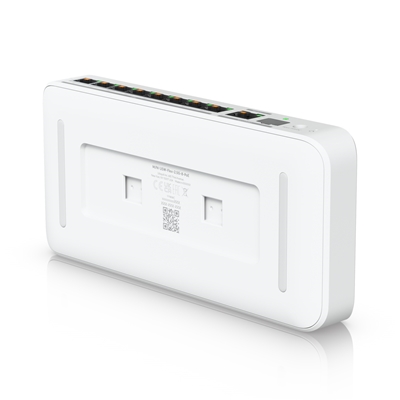

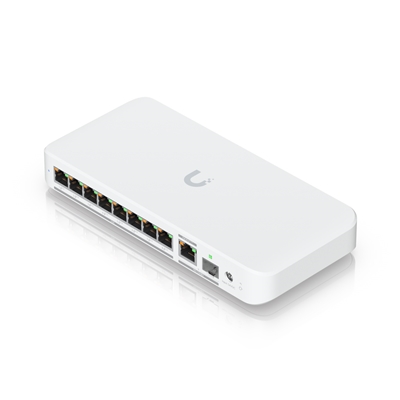

Ubiquiti USW-FLEX-2.5G-8-POE UniFi Flex 2.5G Ultra Compact 8 Port POE/USB-C Powered POE++ Managed Switch
| Speed | 2.5 GbE |
| Ports | 24 |
| POE Capability | 48v |
| Managed or Unmanaged | Managed |
| Rack Mountable | Yes |
£ 141.47
Guaranteed Safe Checkout
Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter.
Note. Actual PoE availability may vary based on input cable length and quality.
AC power adapter sold separately.
Dimensions
212.9 x 99.4 x 33.5 mm
(8.4 x 3.9 x 1.3″)
Port Layout
2.5 GbE RJ45
8 (All PoE++)
10 GbE RJ45
1 (PoE+++)
10G SFP+
1
Max. PoE Output
Up to PoE++
Total PoE Availability
PoE+++ input: 76W
PoE++ input: 46W
PoE+ input: 16W
210W AC adapter input: 196W
Form Factor
Compact Desktop, wall, DIN, magnetic
Switching Capacity
60 Gbps
Total Non-Blocking Throughput
30 Gbps
Forwarding Rate
45 Mpps
Supported VLANs
256
MAC Address Table Size
4000
STP & RSTP
Yes
Egress Rate Limit
Yes
Flow Control
Yes
Storm Control
Yes
Multicast & Broadcast Rate Limiting
Yes
Port Isolation
Yes
Port Mirroring
Yes
Jumbo Frames
Yes
Loop Protection
Yes
PoE Ports
PoE++
8
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
32W
PoE++
64W
Max. Power Consumption
14W (Excluding PoE output) with PoE input
17W (Excluding PoE output) with AC adapter input
210W (Including PoE Output)
Power Method
(1) AC/DC adapter (Excluded)
(1) PoE+++
Power Input Method
DC Input
PoE
Supported Voltage Range
50—57V DC/PoE
Management
Ethernet
Weight
567 g (20 oz)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Certifications
CE, FCC, IC
| Weight | 0.8 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATION
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
DATA TRANSMISSION
| Switching capacity | 60 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 44.64 Mpps |
| Throughput | 30 Gbit/s |
DESIGN
| Form factor | Desktop/Wall-Mounting |
| LED indicators | Activity, Link, PoE, Power, Status |
| Wall mountable | Yes |
| Product colour | White |
| Reset button | Yes |
| Housing material | Polycarbonate (PC) |
| DIN rail mounting | Yes |
ENERGY MANAGEMENT
| Power source | AC/DC/PoE |
| Input current | 3.9 A |
| DC input voltage | 54 V |
| Power consumption (max) | 17 W |
| Power supply included | No |
MANAGEMENT FEATURES
| Switch layer | L2 |
| Switch type | Managed |
MULTICAST FEATURES
| Multicast support | Yes |
NETWORKING
| Flow control support | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| 10G support | Yes |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 45 °C |
PORTS & INTERFACES
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| SFP+ module slots quantity | 1 |
| Power connector | DC-in jack |
| 2.5G Ethernet (copper) ports quantity | 8 |
| 10G Ethernet (copper) ports quantity | 1 |
POWER OVER ETHERNET (POE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 57 V |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 196 W |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 1 |
SECURITY
| Loop protection | Yes |
TECHNICAL DETAILS
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
WEIGHT & DIMENSIONS
| Weight | 567 g |
| Height | 33.5 mm |
| Width | 212.9 mm |
| Depth | 99.4 mm |
