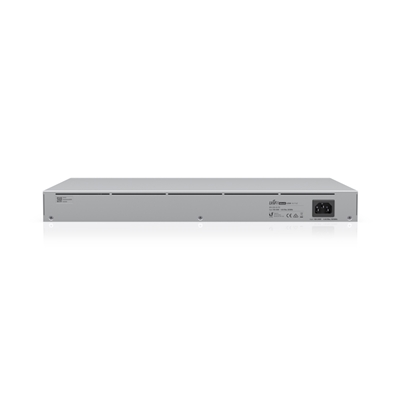

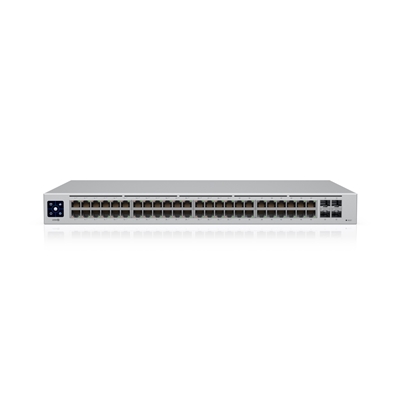

Ubiquiti USW-48-POE UniFi Gen2 48 Port PoE Gigabit Network Switch
| Speed | Gigabit |
| Ports | 48 |
| POE Capability | 48v |
| Managed or Unmanaged | Managed |
| Rack Mountable | Yes |
£ 405.26
Guaranteed Safe Checkout
Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.
* Available in a future software release
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3″ touchscreen display allows easy monitoring and quick troubleshooting.
Synchronized LCM Displays
Touch one to wake up all the screens and view a rich set of information.
System Information
Errors
Warnings
Port Statistics
PoE Power
Throughput
And a lot more..
Specifications
Power Budget
195W PoE
RJ45 Ports
(48) 10/100/1000 RJ45 Ports
PoE+ Ports
(1-32) IEEE 802.3af/at
PoE++
No
SFP
(4) 1G SFP Ethernet Ports
SFP+
No
LCM
Yes
USP-RPS Power Redundancy
No
Dimensions
442.4 x 285 x 43.7 mm
| Weight | 5.65 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATION
| Certification | CE, FCC, IC |
DATA TRANSMISSION
| Switching capacity | 104 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 77.38 Mpps |
| Throughput | 52 Gbit/s |
DESIGN
| Certification | CE, FCC, IC |
| Rack mounting | Yes |
| Form factor | 1U |
| LED indicators | Activity, Link, Speed |
| Product colour | Stainless steel |
ENERGY MANAGEMENT
| Power source | AC/DC |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 45 W |
| Power supply included | Yes |
MANAGEMENT FEATURES
| Switch layer | L2 |
| Switch type | Managed |
NETWORKING
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Flow control support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| 10G support | No |
| Auto-sensing | Yes |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 40 °C |
PACKAGING CONTENT
| Manual | Yes |
PACKAGING DATA
| Manual | Yes |
PERFORMANCE
| Fanless | Yes |
PORTS & INTERFACES
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| SFP module slots quantity | 4 |
POWER OVER ETHERNET (POE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Total Power over Ethernet (PoE) budget | 195 W |
| Power over Ethernet (PoE) power per port | 32 W |
SECURITY
| Authentication type | RADIUS |
WEIGHT & DIMENSIONS
| Weight | 4.52 kg |
| Height | 43.7 mm |
| Width | 442.4 mm |
| Depth | 285 mm |
