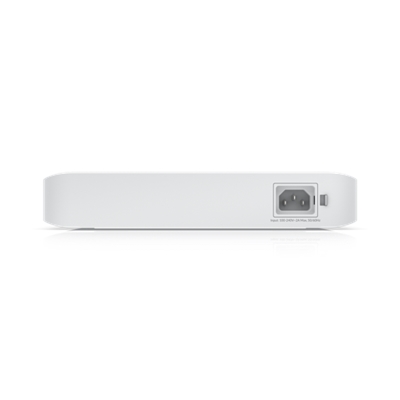

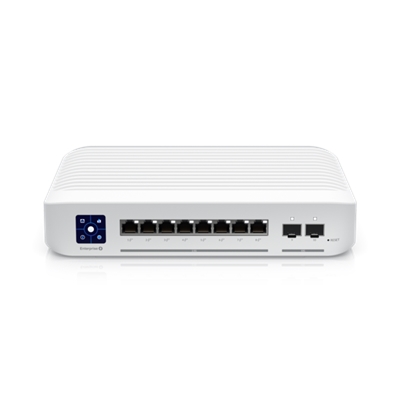

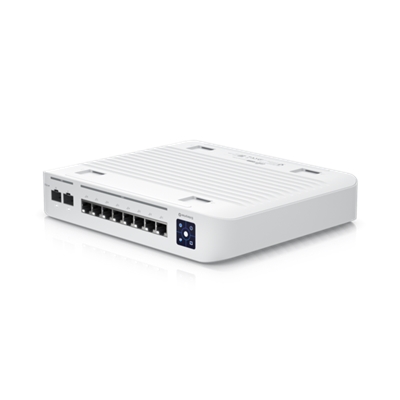

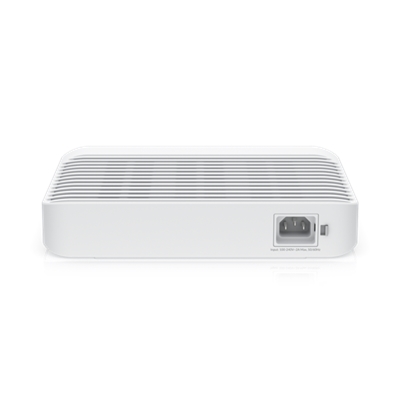

Ubiquiti Networks UniFi Enterprise 8 PoE Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Stainless steel
| Speed | 10G |
| Ports | 8 |
| POE Capability | No |
| Managed or Unmanaged | Managed |
| Rack Mountable | Yes |
£ 332.50
Guaranteed Safe Checkout
Layer 3, PoE switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.
The Switch Enterprise 8 PoE (USW Enterprise 8 PoE) is a fully managed, Layer 3* switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The USW Enterprise 8 PoE also features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Hardware
Total non-blocking throughput
40 Gbps
Switching capacity
80 Gpbs
Forwarding rate
59.52 Mpps
Max PoE power
120W
Power method
(1) 100—240V AC, 2A Max., 50/60 Hz, Universal Input
Power Supply
AC/DC, Internal, 150W
Management Interface
Ethernet In-Band
Networking Interface
(8) 1/2.5 GbE RJ45
SFP+ Interface
(2) 1/10 Gbps SFP+
PoE Interface
(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Max. PoE+ wattage per port by PSE
32W
Voltage range PoE mode
44-57V
Voltage range PoE+ mode
50-57V
LCM Display
(1) 1.3″ Touchscreen
Bootup animation: Bootup in progress
Firmware upgrade icon: Firmware upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
ESD/EMP protection
Air: ± 16 kV
Contact: ± 12 kV
Operating temperature
-5 to 45° C (23 to 113° F)
Operating humidity
10 to 90% noncondensing
Certifications
CE, FCC, IC
LEDs
Ethernet
White: Link or activity
SFP+
White: Link or activity
Packaging
Weight
2.4 kg (5.29 lb)
Dimensions
200 x 248 x 44 mm (7.9 x 9.8 x 1.7″)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Warranty
1 Year
| Weight | 2.75 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATION
| Certification | CE, FCC, IC |
DATA TRANSMISSION
| Switching capacity | 80 Gbit/s |
| Forwarding rate | 59.52 Mpps |
| Throughput | 40 Gbit/s |
DESIGN
| Certification | CE, FCC, IC |
| Rack mounting | No |
| LED indicators | LAN, System |
| Wall mountable | Yes |
| Product colour | White |
| Housing material | Polycarbonate (PC) |
ENERGY MANAGEMENT
| Power source | AC/PoE |
| Input current | 2 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
MANAGEMENT FEATURES
| Switch layer | L3 |
| Switch type | Managed |
NETWORKING
| 10G support | No |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 45 °C |
PACKAGING CONTENT
| Manual | Yes |
PACKAGING DATA
| Manual | Yes |
PORTS & INTERFACES
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| SFP+ module slots quantity | 2 |
| Power connector | AC-in jack |
| 2.5G Ethernet (copper) ports quantity | 8 |
POWER OVER ETHERNET (POE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) power per port | 32 W |
WEIGHT & DIMENSIONS
| Weight | 2.4 kg |
| Height | 44 mm |
| Width | 248 mm |
| Depth | 200 mm |
