Ubiquiti UniFi Network Video Recorder Instant, Compact UniFi Protect NVR with 3.5″ HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for (6) 4K cameras or (15) Full HD cameras
| Camera Resolution | 4K |
| Camera Type | Turret |
| POE Capability | 40v |
| Pack Size | Single |
£ 148.52
Guaranteed Safe Checkout
Ubiquiti Network Video Recorder Instant
Speficiations
Dimensions
220 x 220 x 47 mm
(8.7 x 8.7 x 1.9″)
UniFi Application Suite
Protect – Yes
Access – Yes
Managed Cameras
(15) HD
(8) 2K
(6) 4K
Managed Access Hubs
50
Storage Capacity
(1) 3.5″ drive bay
Data Protection
Yes
Vantage Point
yes
Networking Interface
(1) GbE RJ45 uplink port
(6) GbE PoE RJ45 downlink ports
(1) HDMI port (Viewport)
Form Factor
Compact Desktop
Mounting
Wall, Din rail mount (Included)
Door Access Support
Yes
Hardware
Hard Drive Capacity

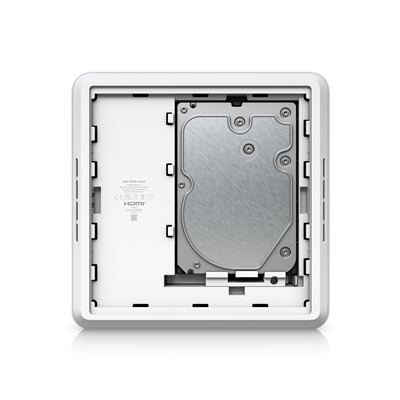

(1) 3.5″ HDD support
Max. Power Budget for Drives
11W
Max. Power Consumption
9W
Power Method
Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz
Power Supply
AC/DC, Internal, 60W
PoE Budget
40W
Max. PoE Wattage per Port by PSE
PoE
15.4W
Voltage Range PoE Mode
44–57V
Processor
Quad-core ARM Cortex-A55 at 1.7 GHz
Memory
4 GB
Management
Ethernet
Bluetooth
Display
1.14″ screen
Weight
1.04 kg (2.3 lb)
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
LEDs
Ethernet – Yes
PoE – Yes
Ambient Operating Temperature
0 to 40C (32 to 104F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Yes
Certifications
FCC, IC, CE, Electrical Safety
| Weight | 1.85 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
DISPLAY
| Display diagonal | 2.9 cm (1.14") |
| Built-in display | Yes |
FEATURES
| LED indicators | LAN, PoE |
| Product colour | White |
| Reset button | Yes |
HARD DRIVE
| HDD size | 3.5" |
| Number of HDDs supported | 1 |
LOGISTICS DATA
| Harmonized System (HS) code | 85219000 |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
PACKAGING CONTENT
| Cables included | Power |
PERFORMANCE
| Maximum resolution | 3840 x 2160 pixels |
PORTS & INTERFACES
| Ethernet LAN (RJ-45) ports | 7 |
| Power over Ethernet (PoE) | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) ports quantity | 6 |
| HDMI output | Yes |
POWER
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 9 W |
| Total Power over Ethernet (PoE) budget | 40 W |
| Power over Ethernet (PoE) power per port | 15.4 W |
PROCESSOR
| Processor cores | 4 |
| Built-in processor | Yes |
| Processor frequency | 1.7 GHz |
STORAGE
| HDD size | 3.5" |
| Number of HDDs supported | 1 |
TECHNICAL DETAILS
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA), UL |
WEIGHT & DIMENSIONS
| Weight | 1.04 kg |
| Height | 47 mm |
| Width | 220 mm |
| Depth | 220 mm |
WIRELESS LAN FEATURES
| Wi-Fi | No |
