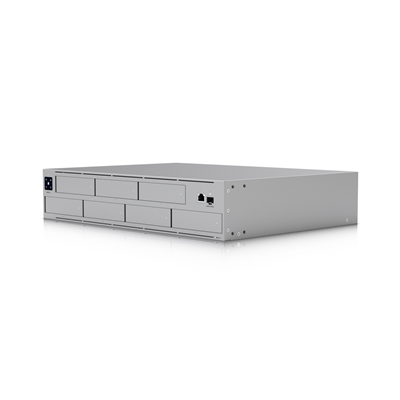

Ubiquiti UNAS-PRO UniFi NAS 7 Bay 10Gbps Network Attached Storage Device
| Product Type | NAS |
| POE Capability | No |
| Device Support | UniFi |
£ 349.50
Guaranteed Safe Checkout
2U rack-mount NAS with (7) 2.5/3.5″ drive bays and 10 Gbps performance designed for large-scale file storage and sharing.
(7) 2.5/3.5″ HDD / SSD support
(1) 10G SFP+ uplink and (1) GbE RJ45 port
Data protection with RAID storage technology
UniFi Power Backup ready
1.3″ touchscreen for management
Dimensions
442 x 325 x 87 mm (17.4 x 12.8 x 3.4″)
Weight
Without mounting brackets: 9.2 kg (20.3 lb)
With mounting brackets: 9.5 kg (20.8 lb)
Enclosure
SGCC steel
Mounting
SGCC steel
Processor
Quad-Core ARM Cortex-A57 at 1.7 GHz
System Memory
8GB
Management Interface
Ethernet In-Band
Networking Interface
(1) GbE RJ45 port
(1) 1/10 GbE SFP+ port
RF Interface
Bluetooth 4.1
Power Method
(1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 13.91A
Power Supply
AC/DC, internal, 200W
Supported Voltage Range
100—240V AC
Max. Power Consumption
160W
Max. Power Budget for Drives
135W
ESD/EMP Protection
Air: ± 12kV, contact: ± 8kV
LCM Display
(1) 1.3″ touchscreen
Certifications
FCC, CE, IC
| Weight | 9.2 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
DESIGN
| Chassis type | Rack (2U) |
| LED indicators | Status |
| Product colour | Grey |
| Number of fans | 2 fan(s) |
| Housing material | Steel |
| Cooling type | Active |
| Built-in display | Yes |
| Display type | LCM |
ENERGY MANAGEMENT
| Redundant power supply (RPS) support | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 160 W |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 200 W |
MEMORY
| Internal memory | 8 GB |
NETWORKING
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -5 - 40 °C |
OTHER FEATURES
| Power consumption (standby) | LCM |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
PACKAGING CONTENT
| Cables included | Power |
| Rack mount kit | Yes |
PERFORMANCE
| Type | NAS |
| Reset button | Yes |
| Backup function | Yes |
PORTS & INTERFACES
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP+ |
| USB port | No |
PROCESSOR
| Processor model | Cortex-A57 |
| Processor manufacturer | ARM |
| Processor family | Cortex-A |
| Processor cores | 4 |
| Processor architecture | ARM Cortex-A57 |
| Processor frequency | 1.7 GHz |
STORAGE
| RAID support | Yes |
| Number of storage drives supported | 7 |
| Storage drive sizes supported | 2.5,3.5" |
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
TECHNICAL DETAILS
| Power consumption (standby) | LCM |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
WEIGHT & DIMENSIONS
| Weight | 9.2 kg |
| Height | 87 mm |
| Width | 442 mm |
| Depth | 325 mm |
