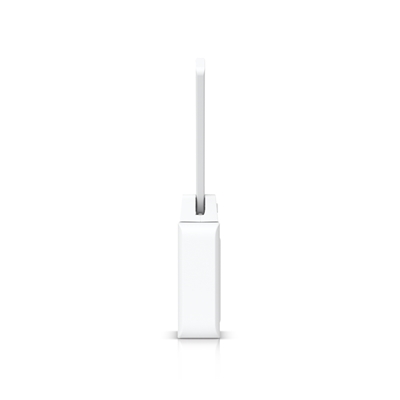

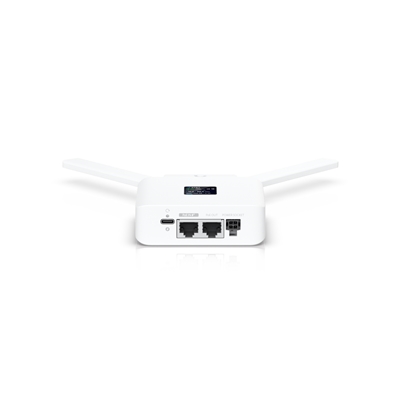

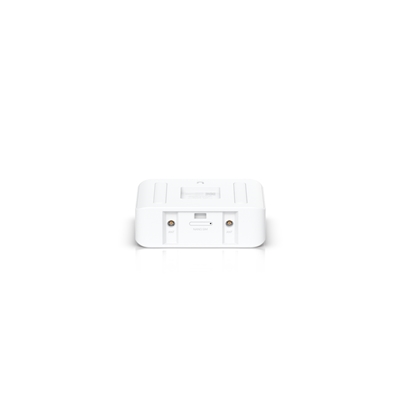

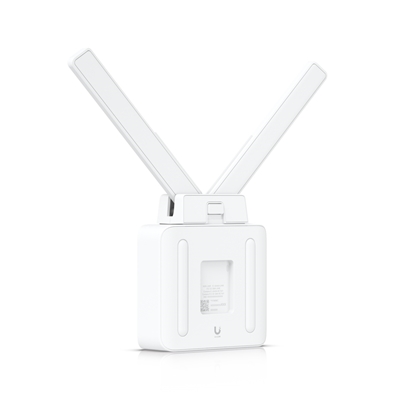

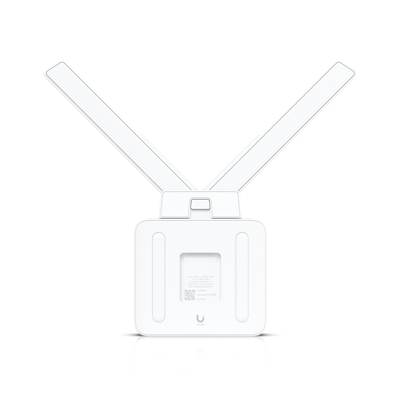

Ubiquiti UMR UniFi 4G LTE Mobile Router (EU Plug)
| Ports | 2 |
| Firewall | No |
| Rack Mountable | No |
£ 145.26
Guaranteed Safe Checkout
Managed mobile WiFi router that brings plug-and-play connectivity to any environment. Bring your own nano-SIM for LTE data.
Dimensions
220.6 x 89.8 x 28.8 mm (8.7 x 3.5 x 1.1″)
Weight
Without mount: 257 g (9.1 oz)
With mount: 303 g (10.7 oz)
Enclosure Material
Polycarbonate
Mount Material
Wall mount: polycarbonate
DIN rail mount: steel
Processor
74 Kc MIPS processor at 775 MHz
Memory Information
128 MB DDR2
Management Interface
Ethernet
WiFi
Networking Interface
(2) GbE RJ45 ports
LTE Category 4 radio
WiFi
POE Interface
(1) PoE input
(1) PoE output (Max. 10W)
SIM
Nano SIM
LTE Bands
B1, B3, B7, B8, 20, B28
3G Bands
B1, B8
LTE Throughput Speed
Download 150 Mbps / Upload 50 Mbps
WiFi Standards
802.11 b/g/n, WiFi 2.4G, 20/40 MHz
GPS
Yes
Antennas
(1) External LTE antenna (main + aux) with TS9 male connectors
(1) Internal WiFi 2.4 GHz antenna
(1) Internal GPS antenna
Power Supply
UniFi PoE switch (48—54V DC, 0.625A)
USB Type-C (5V DC, 3A)
4-pin ATX DC power socket (9V DC, 1A)
Max. Power Consumption
9W
LCM Display
1.3″ screen
Button
Factory Reset
Mounting
DIN rail/wall (Included)
Certifications
CE, UKCA, GCF
| Weight | 0.8 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
ANTENNA
| Antenna type | Internal & external |
| Antenna connector type | TS-9 |
| Antennas quantity | 3 |
CERTIFICATION
| Certification | CE, UKCA, GCF |
DESIGN
| Display diagonal | 3.3 cm (1.3") |
| Product colour | White |
| Mounting | DIN-rail/Wall mounting |
| Device type | Cellular network router |
| Reset button | Yes |
| Housing material | Polycarbonate (PC) |
| Built-in display | Yes |
| Display type | LCM |
ETHERNET LAN FEATURES
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
GPS PERFORMANCE
| GPS (satellite) | Yes |
MOBILE NETWORK
| Data network | 3G, 4G |
| SIM card type | NanoSIM |
| 4G standard | LTE |
| Data transfer rate (LTE) (download) | 150 Mbit/s |
| Data transfer rate (LTE) (upload) | 50 Mbit/s |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -20 - 45 °C |
PACKAGING DATA
| User guide | Yes |
PERFORMANCE
| Certification | CE, UKCA, GCF |
| Antenna type | Internal & external |
| Antenna connector type | TS-9 |
| GPS (satellite) | Yes |
| Antennas quantity | 3 |
| Built-in processor | Yes |
| RAM capacity | 0.128 GB |
| Processor frequency | 0.775 GHz |
| RAM type | DDR2 |
PORTS & INTERFACES
| Ethernet LAN (RJ-45) ports | 2 |
| Compatible memory cards | TS-9 |
| USB port | Yes |
| USB port type | USB Type-C |
POWER
| Output voltage | 48 - 54 V |
| Power source type | DC, PoE, USB |
TECHNICAL DETAILS
| Compatible memory cards | TS-9 |
WEIGHT & DIMENSIONS
| Weight | 303 g |
| Height | 220.6 mm |
| Width | 89.8 mm |
| Depth | 28.8 mm |
WIRELESS LAN FEATURES
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| WLAN data transfer rates supported | 1,2,5.5,6,9,11,12,18,24,36,48,54,150 Mbit/s |
| Wi-Fi frequency | 2.4 GHz |
