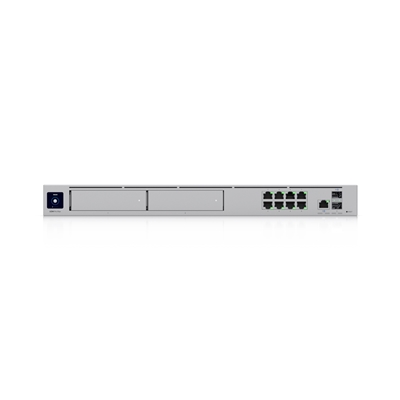

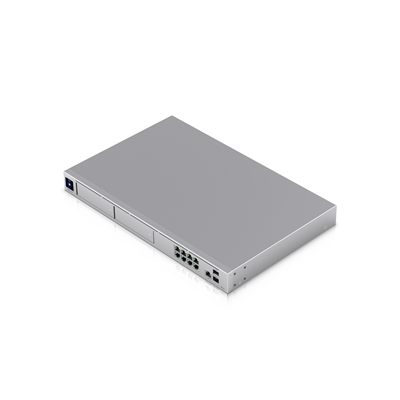

Ubiquiti UDM-PRO-MAX UniFi Dream Machine Pro Max – Combined Switch / Security Gateway / Controller / UniFi Protect NVR
| Ports | 8 |
| Firewall | Yes |
| Rack Mountable | Yes |
£ 421.58
Guaranteed Safe Checkout
10G Cloud Gateway with 200+ UniFi device / 2,000+ client support, 5 Gbps IPS routing, and redundant NVR storage.
Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE
Includes full UniFi application suite for device management
5 Gbps routing with IDS/IPS
(1) 10G SFP+, (8) GbE RJ45 LAN ports
(1) 10G SFP+, (1) 2.5 GbE RJ45 WAN ports
(2) 3.5″ NVR HDD bays with RAID data protection
Built-in 128 GB SSD for NVR detection recordings
UniFi Power Backup ready
1.3″ touchscreen
Dimensions
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2″)
Weight
4.7kg
Enclosure Material
Aluminium CNC, SGCC steel
Mount Material
SGCC steel
Processor
Quad-core ARM Cortex-A57 at 2.0 GHz
System Memory
8 GB DDR4
Onboard Storage
32 GB eMMC
Integrated 128 GB SSD
Management Interface
Ethernet
Bluetooth
Networking Interface
LAN:
(8) GbE RJ45 ports
(1) 10G SFP+ port
WAN:
(1) 2.5 GbE RJ45 port
(1) 10G SFP+ port
IDS/IPS Throughput
5 Gbps*
*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
Power Method
(1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 8.7A
Power Supply
AC/DC, internal, 100W
Supported Voltage Range
100—240V AC
Max Power Consumption
100W
Performance
Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next Generation Security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced Networking
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
| Weight | 5.2 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATION
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
DATA TRANSMISSION
| Throughput | 5 Gbit/s |
DESIGN
| Rack mounting | Yes |
| Form factor | 1U |
| LED indicators | Activity, Error, Link, Ready |
| Product colour | Grey |
| Stackable | No |
| Reset button | Yes |
| Housing material | Aluminium, Galvanized steel |
| Display type | LCM |
ENERGY MANAGEMENT
| Number of power supply units | 1 |
| Power source | AC/DC |
| Redundant power supply (RPS) support | Yes |
| Input current | 2 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| DC input voltage | 12 V |
| Power consumption (max) | 60 W |
| Power supply included | Yes |
| Power plug type | Type G |
MANAGEMENT FEATURES
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
NETWORKING
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| VLAN support | Yes |
| 10G support | Yes |
| Policy-based routing | Yes |
| Virtual LAN features | IP subnet–based VLAN |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 40 °C |
PACKAGING CONTENT
| Cables included | AC |
| User guide | Yes |
| Rack mount kit | Yes |
PACKAGING DATA
| Cables included | AC |
| User guide | Yes |
| Rack mount kit | Yes |
PERFORMANCE
| Processor frequency | 2000 MHz |
| Internal memory | 8000 MB |
| Processor model | ARM Cortex-A57 |
| Flash memory | 32000 MB |
| Memory type | DDR4-SDRAM |
| Built-in processor | Yes |
PORTS & INTERFACES
| Gigabit Ethernet (copper) ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
| 2.5G Ethernet (copper) ports quantity | 1 |
POWER OVER ETHERNET (POE)
| Power over Ethernet (PoE) | No |
SECURITY
| IGMP proxy | Yes |
| DHCP features | DHCP relay, DHCP server |
SUSTAINABILITY
| Sustainability compliance | Yes |
| Sustainability certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
TECHNICAL DETAILS
| Sustainability compliance | Yes |
| Sustainability certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
WEIGHT & DIMENSIONS
| Weight | 4.7 kg |
| Height | 43.7 mm |
| Width | 442.4 mm |
| Depth | 285.6 mm |
