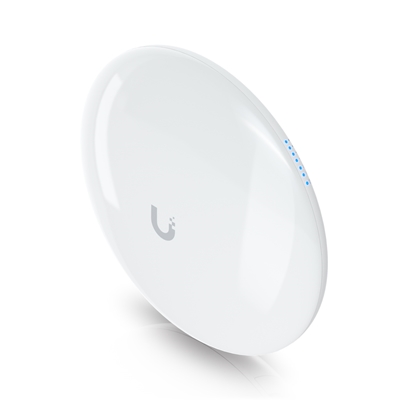

Ubiquiti UDB-PRO Plug and Play Wireless Device Bridge Pro
| Type | Device Bridge |
| Speed | 866Mbps |
| Indoor or Outdoor | Indoor/Outdoor |
| POE Capability | 48v |
| Pack Size | Single |
£ 138.59
Guaranteed Safe Checkout
5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.
Note. Cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.
PoE adapter included. PoE+ input required for PoE passthrough.
Dimensions
d189.5 x 64.3 mm
(d7.4 x 2.5″)
WiFi Standard
WiFi 5
Spatial Streams
2
Coverage Area
5 km (3.1 mi)

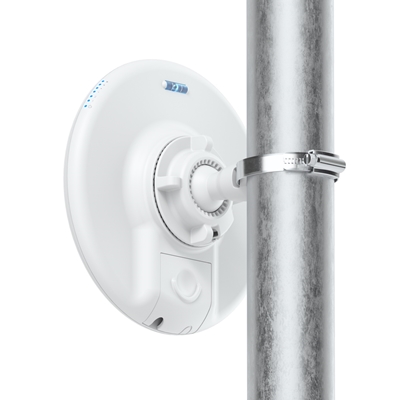

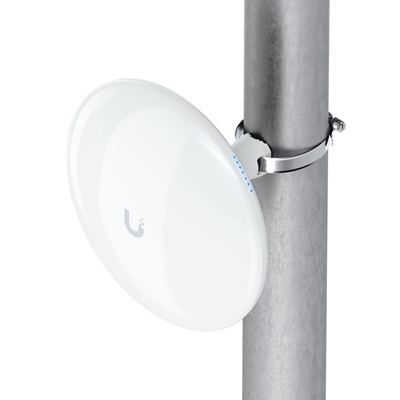

Mounting Locations
Wall/Pole
Weatherproofing
IPX6
Power Method
PoE
PoE+ (Required for PoE output)
MIMO
2 x 2
Max. Data Rate
867 Mbps (BW80)
Antenna Gain
19 dBi
Max. TX Power
25 dBm
Max. Conducted TX Power
25 dBm (Combined)
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
Wireless Security
WPA2 AES (Always On)
Max. Power Consumption
9W
Supported Voltage Range
42.5—57V DC

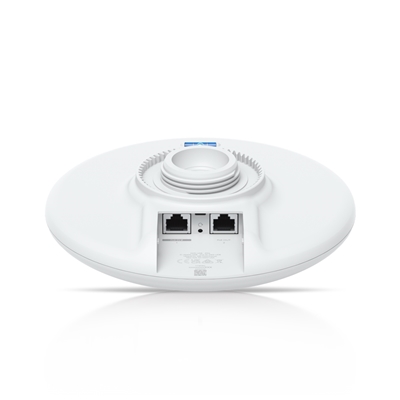

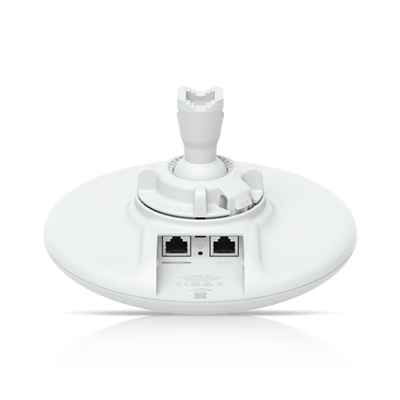

Networking Interface
(2) GbE RJ45 ports
Antennas
Internal
Management
(1) PoE in (PoE output not used)
(1) Passive PoE output
Wind Loading
69 N at 200 km/h (15.5 lbf at 125 mph)
Weight
Device: 431 g (0.95 lb)
With mount: 515 g (1.1 lb)
Mount Material
UV-stabilized polycarbonate, stainless steel
Enclosure Material
UV-resistant polycarbonate
Pole Mount Diameter
0.8–2.1″ (20–53.1 mm)
Button
(1) Factory-reset
System LEDs
Power, Ethernet, (4) signal strength
Channel Bandwidth
20/40/80 (MHz)
Certifications
CE, FCC, IC
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
ANTENNA
| Antenna type | 2x2 |
| Antenna gain level (max) | 19 dBi |
| Antenna design | Internal |
CERTIFICATES
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
DATA TRANSMISSION
| Maximum data transfer rate | 866.7 Mbit/s |
ENERGY MANAGEMENT
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 48 V |
| Power source type | DC, PoE |
| DC input voltage | 42.5 - 57 V |
| Power consumption (max) | 9 W |
FEATURES
| Material | Polycarbonate (PC), Stainless steel |
| LED indicators | LAN, Power, Signal strength |
| Product colour | White |
| Power LED | Yes |
| Reset button | Yes |
| Mounting type | Pole |
| International Protection (IP) code | IPX6 |
| Product type | Network bridge |
NETWORKING
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 60 °C |
PACKAGING CONTENT
| Cables included | AC |
| Power supply included | Yes |
| Mounting bracket(s) included | Yes |
PACKAGING DATA
| Quantity per pack | 1 pc(s) |
PORTS & INTERFACES
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
SECURITY
| Security algorithms | WPA2-AES |
TECHNICAL DETAILS
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
WEIGHT & DIMENSIONS
| Weight | 515 g |
| Height | 189.5 mm |
| Width | 189.5 mm |
| Depth | 64.3 mm |
WIRELESS LAN FEATURES
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Outdoor range | 5+ km |
| Frequency band | 5 GHz |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Signal strength | 25 dBm |
