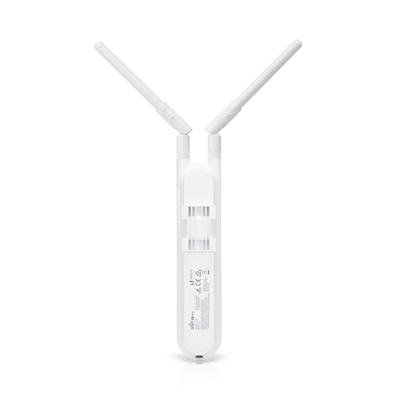

Ubiquiti UAP-AC-M UniFi Mesh Wireless AC1300 Dual Band PoE Access Point
| Type | Mesh |
| Speed | AC1300 |
| Indoor or Outdoor | Indoor/Outdoor |
| POE Capability | 24/48v |
| Pack Size | Single |
£ 63.08
Guaranteed Safe Checkout
802.11AC Indoor/Outdoor Wi-Fi Access Point with Plug & Play Mesh Technology

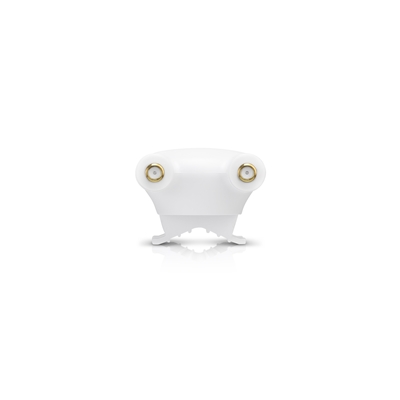

Antenna Versatility
Adjustable dual-band omni-directional antennas and Fast-Mount included for expanded range coverage.
Optimal Performance
Dual-Band performance with aggregate speeds of up to 1167 Mbps.
Compact Form Factor
The UniFi AC Mesh base is just slightly larger than a standard pen, making it easy to deploy anywhere. Dimensions: 354 x 46 x 34 mm (H x W x D)
Multiple Power Options
Power the UniFi AC Mesh with an 802.3af compatible switch, a UniFi PoE Switch or the included Gigabit PoE adapter.
Mounting Flexibility
The UniFi AC Mesh can be mounted on a pole, wall, or Ubiquiti high-gain antenna.
Expand the limits of Wide-Area WiFi
UniFi creates a highly scalable, end-to-end system of devices spanning multiple locations across the world � all controlled by a single interface accessed via the Internet or local network.
Specifications
Dimensions: 353 x 46 x 34.4 mm
Environment: Indoor/Outdoor
2.4GHz Speed: 300 Mbps
5GHz Speed: 867 Mbps
Ports: 1x 10/100/1000 Ethernet / 24V Passive PoE and 802.3af
| Weight | 0.73 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
ANTENNA
| Antenna gain level (max) | 4 dBi |
| Antennas quantity | 2 |
| Antenna features | Detachable antenna |
CERTIFICATION
| Certification | CE, FCC, IC |
DESIGN
| Internal | No |
| Certification | CE, FCC, IC |
| Product colour | White |
| Reset button | Yes |
| Placement | Wall |
ENERGY MANAGEMENT
| Power consumption (typical) | 8.5 W |
| Power supply | 24 W |
| Power over Ethernet (PoE) | Yes |
FEATURES
| Maximum data transfer rate | 1167 Mbit/s |
| Number of users | 250 user(s) |
| Networking standards | IEEE 802.3af |
| Quality of Service (QoS) support | Yes |
| VLAN support | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia�(WMM)/(WME) | Yes |
| MIMO | Yes |
LOGISTICS DATA
| Harmonized System (HS) code | 85176990 |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 70 °C |
PORTS & INTERFACES
| Ethernet LAN (RJ-45) ports | 1 |
SECURITY
| Number of SSID supported | 4 |
| Service Set Identifier (SSID) features | Hidden SSID |
TECHNICAL DETAILS
| Harmonized System (HS) code | 85176990 |
WEIGHT & DIMENSIONS
| Weight | 152 g |
| Height | 353 mm |
| Width | 46 mm |
| Depth | 34 mm |
