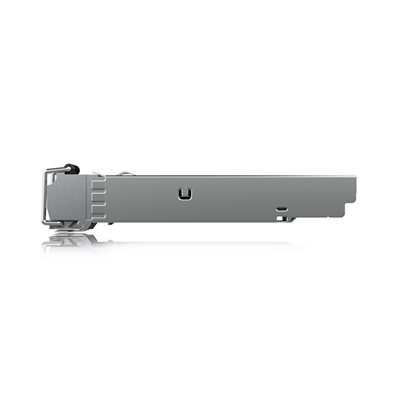

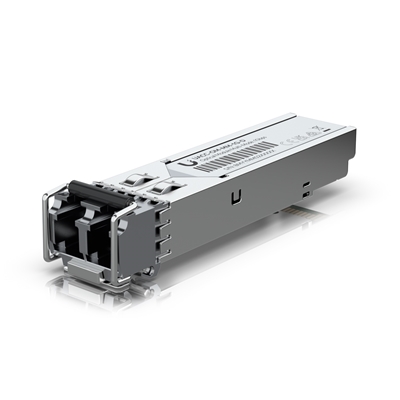

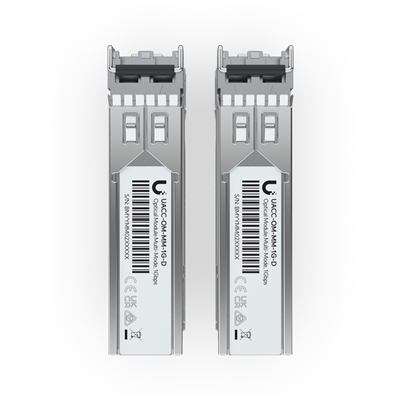

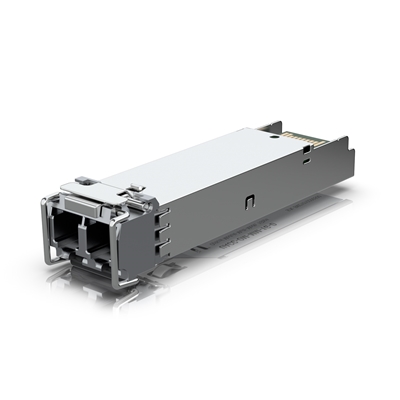

Ubiquiti UACC-OM-MM-1G-D-2 (2-Pack) 1G Multi-Mode Optical SFP Module
| Product Type | Module |
| POE Capability | No |
| Device Support | Universal |
£ 12.27
Guaranteed Safe Checkout
SFP transceiver that supports 1G connections up to 550 m using multi-mode fiber with a duplex LC UPC connector.
Max data rate: 1 Gbps
Compatible with SFP interfaces
Duplex LC UPC connector
Supports multi-mode fiber connections up to 550 m
Specifications
Supported Media
Multi-mode fiber
Connector Type
(2) LC
TX wavelength
Black latch: 850 nm
RX wavelength
Black latch: 850 nm
Data Rate
1 Gbps
Max. Power Consumption
0.66W
Cable Distance
550m
Warning
CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
| Weight | 0.2 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
FEATURES
| Product colour | Stainless steel |
LOGISTICS DATA
| Quantity per pack | 2 pc(s) |
OPERATIONAL CONDITIONS
| Operating temperature (T-T) | 0 - 70 °C |
| Maximum operating temperature | 70 °C |
PACKAGING CONTENT
| Quantity per pack | 2 pc(s) |
PACKAGING DATA
| Number of products included | 2 pc(s) |
PERFORMANCE
| Interface type | SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| Fiber optic connector | LC |
| Maximum transfer distance | 550 m |
| SFP transceiver type | Fiber optic |
| Rx wavelength (max) | 850 nm |
| Tx wavelength (max) | 850 nm |
| Multi-mode fiber (MMF) supported | Yes |
