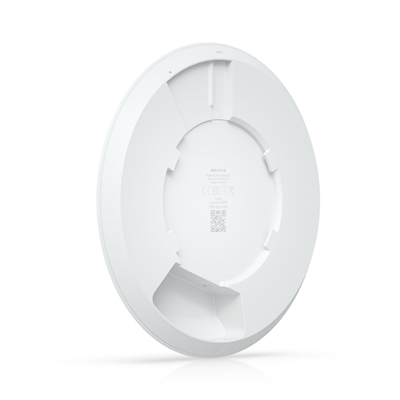

Ubiquiti U7-LR UniFi 7 Long Range WiFi 7 Access Point with 5 Spacial Streams - Image 1

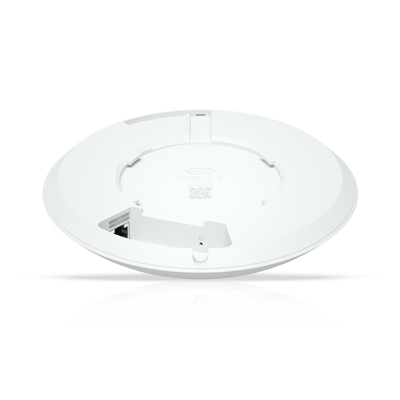

Ubiquiti U7-LR UniFi 7 Long Range WiFi 7 Access Point with 5 Spacial Streams - Image 2

Click to enlarge

Ubiquiti U7-LR UniFi 7 Long Range WiFi 7 Access Point with 5 Spacial Streams

Type	Access Point
Speed	4300Mbps
Indoor or Outdoor	Indoor
POE Capability	48v
Pack Size	Single

£ 109.58

Add to wishlist

Guaranteed Safe Checkout

U7 Long-Range

Overview

Dimensions
d175.7 x 43 mm
(d6.9 x 1.7″)

WiFi Standard
WiFi 7

Spatial Streams
5

Coverage Area
160 m² (1,750 ft²)

Max. Client Count
300+

Uplink
2.5 GbE

Mounting
Ceiling, Wall
(Plastic Mounting Plate included)

Power Method
PoE

5 GHz
3 x 3 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz
4.3 Gbps (BW160)

2.4 GHz
688 Mbps (BW40)

Antenna Gain

5 GHz
6 dBi

2.4 GHz
4 dBi

Max. TX Power

5 GHz
27 dBm

2.4 GHz
26 dBm

Supported Data Rates

802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2/3, EHT 20/40/80/160)

802.11ax (WiFi 6)
7.3 Mbps to 3.6 Gbps (MCS0 – MCS11 NSS1/2/3, HE 20/40/80/160)

802.11ac (WiFi 5)
6.5 Mbps to 2.6 Gbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80/160)

802.11n
6.5 Mbps to 450 Mbps (MCS0 – MCS23 , HT 20/40)

Features

Wireless Meshing
Yes

Band Steering
Yes

802.11v BSS Transition Management
Yes

802.11r Fast Roaming
Yes

802.11k Radio Resource Management (RRM)
Yes

Advanced Radio Management
Yes

Passpoint (Hotspot 2.0)
Yes

Captive Hotspot Portal

Custom Branding Landing Page
Yes

Voucher Authentication
Yes

Payment-Based Authentication
Yes

External Portal Server Support
Yes

Password Authentication
Yes

Guest Network Isolation
Yes

Private Pre-Shared Key (PPSK)
Yes

WiFi Speed Limiting
Yes

Client Device Isolation
Yes

WiFi Schedules
Yes

RADIUS over TLS (RadSec)
Yes

Dynamic RADIUS-assigned VLAN
Yes

Hardware

Max. Power Consumption
14W

Supported Voltage Range
42.5—57V DC

Networking Interface
(1) 2.5 GbE RJ45 port

Weight
448 g (15.8 oz)

Management
Ethernet

Enclosure Material
Polycarbonate, aluminum alloy

Mount Material
Polycarbonate, galvanized steel (SGCC)

System
White/Blue

Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)

NDAA Compliant
Yes

Certifications
CE, FCC, IC

Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)

Ambient Operating Humidity
5 to 95% noncondensing

Software

Application Requirements

UniFi Network
Version 9.1.120 and later

Mobile App
iOS version 10.20.2 and later
Android version 10.21.7 and later

Weight	0.45 lbs
Manufacturer	UBIQUITI
EAN	0810177161929
Manufacturer Code	U7-LR

Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.

ANTENNA

Antenna type	Internal
Antenna gain level (max)	6 dBi

CERTIFICATION

Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)

DESIGN

LED indicators	Yes
Product colour	White
Reset button	Yes
Housing material	Aluminium, Polycarbonate (PC)
Placement	Ceiling, Wall

ENERGY MANAGEMENT

Power over Ethernet (PoE)	Yes
DC voltage range	42.5 - 57 V
Power consumption (max)	14 W

FEATURES

Maximum data transfer rate	7300 Mbit/s
Frequency band	2.4 - 5 GHz
Number of users	300 user(s)
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Rate limiting	Yes
Ethernet LAN data rates	1000,2500 Mbit/s
VLAN support	Yes
2.4 GHz	Yes
5 GHz	Yes
MIMO	Yes
Fast roaming	Yes
Band steering	Yes
MIMO type	Multi User MIMO
Maximum data transfer rate (2.4 GHz)	688 Mbit/s
Maximum data transfer rate (5 GHz)	4300 Mbit/s
Fit AP mode features	Hotspot 2.0
6 GHz	No
Maximum Tx power (2.4 GHz)	26 dBmW
Maximum Tx power (5 GHz)	27 dBmW
Spatial streams	5
Coverage area	160 m²
Wireless meshing	Yes
