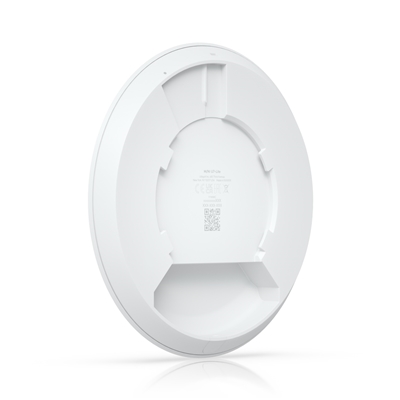

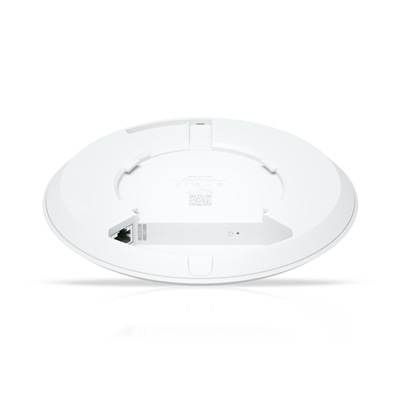

Ubiquiti U7-LITE UniFi 7 Lite Ceiling Mounted WiFi 7 Access Point
| Type | Access Point |
| Speed | 4300Mbps |
| Indoor or Outdoor | Indoor |
| POE Capability | 48v |
| Pack Size | Single |
£ 71.06
Guaranteed Safe Checkout
Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.
Dimensions
d171.5 x 33 mm
(d6.8 x 1.3″)
WiFi Standard
WiFi 7
Spatial Streams
4
Coverage Area
115 m2 (1,250 ft2)
Max. Client Count
200+
Uplink
2.5 GbE
Mounting
Ceiling, Wall
(Lite Mount Included)
Power Method
POE
MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
4.3 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
5 GHz
5 dBi
2.4 GHz
4 dBi
Max. TX Power
5 GHz
24 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
Wireless Meshing
Yes
Band Steering
Yes
802.11v BSS Transition Management
Yes
802.11r Fast Roaming
Yes
802.11k Radio Resource Management (RRM)
Yes
Advanced Radio Management
Yes
Passpoint (Hotspot 2.0)
Yes
Captive Hotspot Portal
Yes
Private Pre-Shared Key (PPSK)
Yes
WiFi Speed Limiting
Yes
Client Device Isolation
Yes
WiFi Schedules
Yes
RADIUS over TLS (RadSec)
Yes
Dynamic RADIUS-assigned VLAN
Yes
Max. Power Consumption
13W
Supported Voltage Range
42.5—57V DC
Networking Interface
(1) 2.5 GbE RJ45 port
Weight
313 g (11 oz)
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate
Mount Material
UV-stabilized polycarbonate, galvanized steel (SGCC)
LEDs
System
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Certifications
CE, FCC, IC
| Weight | 0.31 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
ANTENNA
| Antenna type | Internal |
| Antenna gain level (max) | 5 dBi |
| Antennas quantity | 4 |
CERTIFICATION
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
DESIGN
| LED indicators | System |
| Product colour | White |
| Reset button | Yes |
| Housing material | Polycarbonate (PC) |
| Placement | Ceiling, Wall |
ENERGY MANAGEMENT
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 44 - 57 V |
| Power consumption (max) | 13 W |
FEATURES
| Maximum data transfer rate | 4300 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Number of users | 200 user(s) |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Rate limiting | Yes |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| VLAN support | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| MIMO | Yes |
| Fast roaming | Yes |
| Band steering | Yes |
| MIMO type | Multi User MIMO |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4300 Mbit/s |
| Fit AP mode features | Hotspot 2.0 |
| 6 GHz | No |
| Maximum Tx power (2.4 GHz) | 23 dBmW |
| Maximum Tx power (5 GHz) | 24 dBmW |
| Spatial streams | 4 |
| Coverage area | 115 m² |
| Wireless meshing | Yes |
LOGISTICS DATA
| Quantity per pack | 1 pc(s) |
| Export Control Classification Number (ECCN) | EAR99 |
MANAGEMENT FEATURES
| Access point management | Wi-Fi schedule |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 40 °C |
PACKAGING CONTENT
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
PACKAGING DATA
| Mounting kit | Yes |
PORTS & INTERFACES
| Ethernet LAN (RJ-45) ports | 1 |
SECURITY
| Security algorithms | PPSK |
TECHNICAL DETAILS
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
WEIGHT & DIMENSIONS
| Weight | 313 g |
| Height | 171.5 mm |
| Width | 171.5 mm |
| Depth | 33 mm |
