Ubiquiti U6-Mesh-Pro UniFI 6 Mesh Pro Indoor/Outdoor WiFi 6 Access Point with Passthrough
| Type | Mesh |
| Speed | AX2400 |
| Indoor or Outdoor | Indoor/Outdoor |
| POE Capability | 48v |
| Pack Size | Single |
£ 138.40
Guaranteed Safe Checkout
Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.
WiFi 6
4 spatial streams
185 m² (2,000 ft²) coverage with the integrated omnidirectional super antenna
350+ connected devices
Powered using PoE

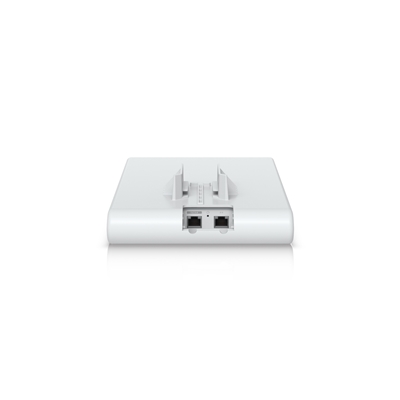

GbE uplink with (1) GbE passthrough port

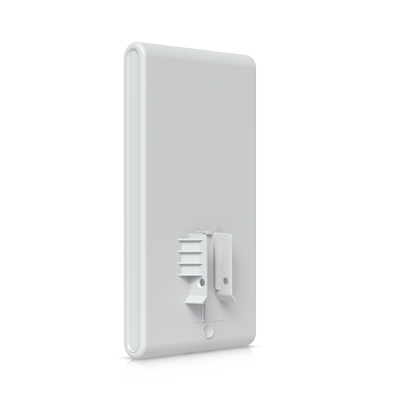

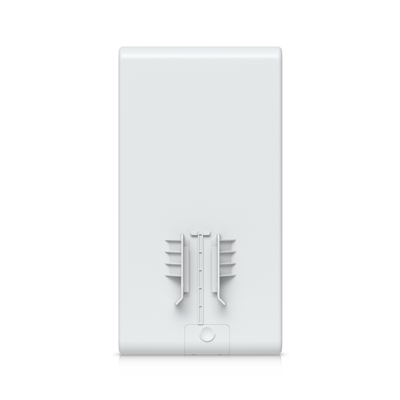

Versatile wall and pole mounting
Weatherproof (outdoor exposed)
Dimensions
343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4″)
Weight
819 g (1.8 lb)
Enclosure Material
UV-stabilized polycarbonate
Mount Material
Aluminum alloy, steel
Pole Diameter
1~2.5″ on pipe outer diameter
Weatherproofing
IPX6
Networking Interface
(2) GbE RJ45 ports
Management Interface
Ethernet
WiFi
Power Method
POE
Power Supply
UniFi PoE switch
48V, 0.5A PoE adapter (Included)
Supported Voltage Range
42.5—57V DC
Max. Power Consumption
9W
Max. TX Power
2.4GHz : 22 dBm
5GHz : 27 dBm
MIMO
2.4GHz : 2 x 2 (DL/UL MU MIMO)
5GHz : 2 x 2 (DL/UL MU MIMO)
Max. Data Rate
2.4GHz : 573.5 Mbps (BW40)
5GHz : 2.4 Gbps (BW160)
Antenna Gain
2.4GHz : 8 dBi
5GHz : 8 dBi
LEDs
White/Blue
Button
Factory Reset
Mounting
Wall, pole (Included)
WiFi Standards
802.11a/b/g/n/ac/ax (WiFi 6)
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID
8 Per Radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest Traffic Isolation
Supported
Concurrent Clients
350+
| Weight | 0.82 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
ANTENNA
| Antenna type | Internal |
| Antenna gain level (max) | 8 dBi |
| Antenna direction type | Omni-directional |
DESIGN
| LED indicators | Yes |
| Product colour | White |
| Reset button | Yes |
| Housing material | Polycarbonate (PC) |
| International Protection (IP) code | IPX6 |
| Placement | Pole, Wall |
| Recommended usage | Indoor/outdoor |
ENERGY MANAGEMENT
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 42.5 - 57 V |
| Power consumption (max) | 9 W |
FEATURES
| Maximum data transfer rate | 2400 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VLAN support | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Maximum data transfer rate (2.4 GHz) | 573.5 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
| 6 GHz | No |
LOGISTICS DATA
| Quantity per pack | 1 pc(s) |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 60 °C |
PACKAGING CONTENT
| AC adapter included | Yes |
| Quick start guide | Yes |
| Number of products included | 1 pc(s) |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| PoE adapter included | Yes |
PACKAGING DATA
| AC adapter included | Yes |
| Quick start guide | Yes |
| Number of products included | 1 pc(s) |
| Mounting kit | Yes |
| PoE adapter included | Yes |
PORTS & INTERFACES
| Ethernet LAN (RJ-45) ports | 2 |
SECURITY
| Security algorithms | WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
SUSTAINABILITY
| Sustainability compliance | Yes |
WEIGHT & DIMENSIONS
| Weight | 819 g |
| Height | 343.2 mm |
| Width | 181.2 mm |
| Depth | 60.2 mm |
