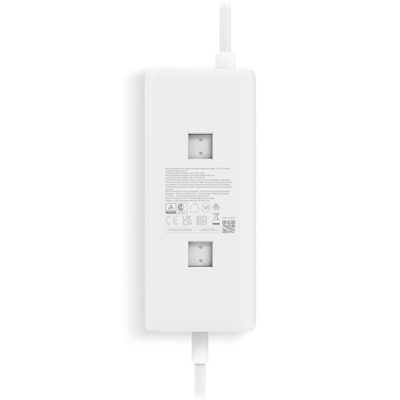

Ubiquiti UACC-POE+-USBC POE to USB-C Power Adapter

An AC adapter with integrated PoE, enabling the UniFi Cloud Gateway device to support PoE output on a single port.

Delivers up to 30W of PoE+
Supports wall mount, DIN rail and floating mount – sold separately
Lockable latch designed for power cord security

Dimensions
146 x 62 x 42 mm (5.7 x 2.4 x 1.7″)

Weight
358 g (12.6 oz)

Cable Length
Type-C/Ethernet: 150 cm (4.9 ft)
Power cord: 180 cm (5.9 ft)

Output Voltage
Type-C: 5V@ 5A
PoE+: 48V@ 0.65A

LAN Activity Indicator
No

Gigabit LAN Port
Up to 10 GbE

Remote Reset Capability
No

Reset Button
No

Rated Voltage
100—240V AC @ 50/60Hz

Input Current
1.5A max.

Inrush Current
120A

Efficiency
82%

Output Ripple
1% max.

Switching Frequency
65 kHz

Line Regulation
< 5% Load Regulation < 5% 2-Pair Powering No 4-Pair Powering Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) Data In / POE RJ45 shielded socket Surge Protection Difference and common mode Clamping Protection 11V data, 60V power Max. Surge Discharge 1500A power Peak Pulse Current 36A data Shunt Capacitance <5 pF Data Response Time <1 ns Certifications CE, FCC, IC, UL, UKCA, CCC, KC, RoHS
