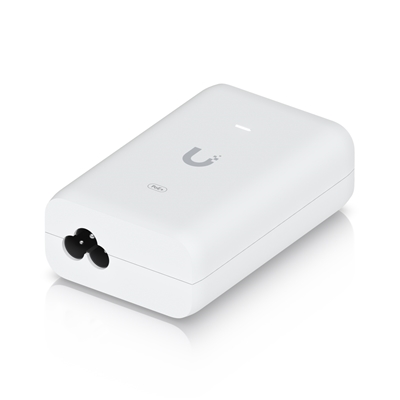

Ubiquiti UACC-POE+-2.5G Universal 802.3at 2.5G 30W Power POE+ Injector
| Product Type | POE Injector |
| POE Capability | 48v |
| Device Support | Universal |
£ 13.59
Guaranteed Safe Checkout
An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
Delivers up to 30W of PoE+
Surge, peak pulse, and overcurrent protection

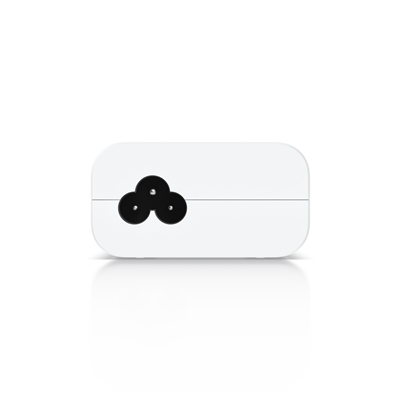

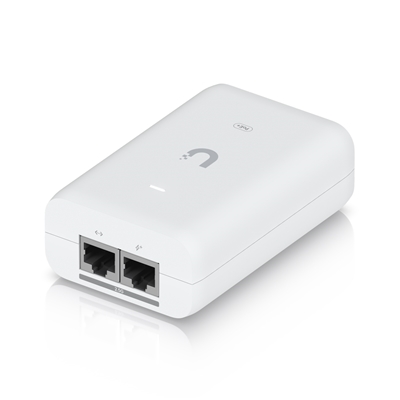

Contains RJ45 data input, AC cable with earth ground, and PoE+ output
LED indicator for status monitoring
Dimensions
93 x 62 x 35 mm (3.7 x 2.4 x 1.4″)
Weight
156 g (5.5 oz)
Output Voltage
48V DC @ 0.65A
LAN Activity Indicator
No
Gigabit LAN Port
Yes, up to 2.5 GbE
Remote Reset Capability
No
Reset Button
No
Rated Voltage
100—240V AC @ 50/60Hz
Input Current
0.75A max.
Inrush Current
<150A peak @ 230V AC
Efficiency
>87%
Output Ripple
1% max.
Switching Frequency
65 kHz max.
Line Regulation
< 1%
Load Regulation
< 3%
2-Pair Powering
Pins 4, 5 (+) and 7, 8 (-)
4-Pair Powering
No
Data In / POE
RJ45 shielded socket
Surge Protection
Difference and common mode
Clamping Protection
11V data, 60V power
Max. Surge Discharge
1500A power
Peak Pulse Current
36A data
Shunt Capacitance
<5 pF Data
Response Time
<1 ns
Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
| Weight | 0.35 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATES
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL |
ENERGY MANAGEMENT
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 0.75 A |
| Output current | 0.65 A |
| Power over Ethernet (PoE) voltage | 48 V |
| Total Power over Ethernet (PoE) budget | 30 W |
FEATURES
| LED indicators | Status |
| Wall mountable | Yes |
| Product colour | White |
| Power protection features | Over current, Peak pulse, Surge protection |
| Surge protection | Yes |
NETWORKING
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet interface type | 2.5 Gigabit Ethernet |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 32 - 104 °F |
PACKAGING CONTENT
| Number of products included | 1 pc(s) |
PORTS & INTERFACES
| Ethernet LAN (RJ-45) ports | 2 |
TECHNICAL DETAILS
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RoHS, UKCA, UL |
WEIGHT & DIMENSIONS
| Weight | 156 g |
| Height | 93 mm |
| Width | 62 mm |
| Depth | 35 mm |
