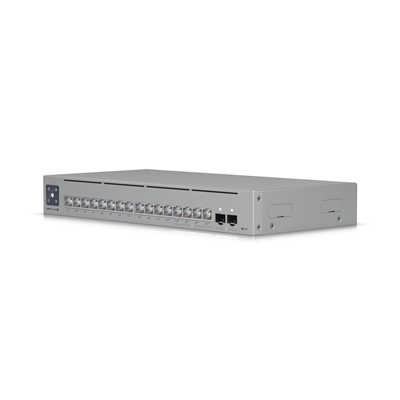

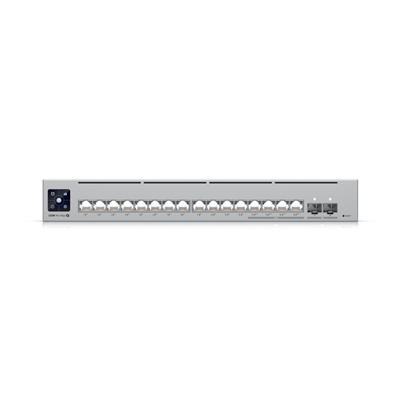

Ubiquiti USW-PRO-MAX-16-POE UniFi Pro Max 16 Port Gigabit Layer 3 Managed POE Switch

A 16-port, Layer 3 Etherlighting switch with 2.5 GbE, PoE++ output, and versatile mounting options.

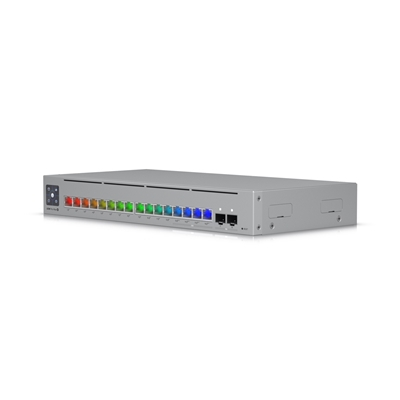

Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network.

(4) 2.5 GbE PoE++ ports
(12) GbE PoE+ ports
(2) 10G SFP+ ports
180W total PoE availability

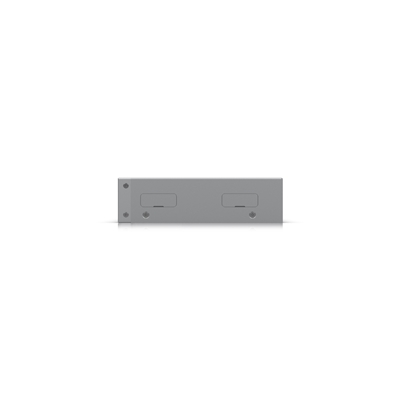

Versatile desktop, wall, and rack mounting (with optional rack mount kit)
Silent, fanless cooling system

Dimensions
325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7″)

Weight
2.1 kg (4.6 lb)

Enclosure Material
SGCC steel

Management Interface
Ethernet In-Band

Networking Interface
(12) GbE RJ45 ports
(4) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports

POE Interface
(12) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total Non-Blocking Throughput
42 Gbps

Switching Capacity
84 Gbps

Forwarding Rate
62.496 Mpps

Power Method
DC adapter

Power Supply
54V, 210W

Max Power Consumption
30W (Excluding PoE output)

Total Available POE
180W

Max POE Wattage per Port by PSE
PoE: 15.4W
PoE+: 30W
PoE++: 60W

Voltage Range POE Mode
PoE: 44—57V
PoE+/PoE++: 50—57V

LCM Display
(1) 1.3″ touchscreen

Button
Factory reset

Ambient Operating Temperature
-5 to 40° C (23 to 104° F)

Ambient Operating Humidity
10 to 90% noncondensing

Certifications
CE, FCC, IC

Layer 2 Features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs

Layer 3 Features
DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
