Ubiquiti NS-5AC NanoStation AC 5GHz 16dBi airMAX Outdoor Wireless AC CPE Bridge
| Type | CPE |
| Speed | 450+ Mbps |
| POE Capability | 24v |
| Range | 15+ km |
| Antenna Gain | 16 dBi |
£ 85.40
Guaranteed Safe Checkout
5 GHz airMAX® ac CPE
The indoor/outdoor NanoStation AC is a compact, high-performance CPE featuring airMAX AC technology and a dedicated Wi-Fi radio for management.
Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.

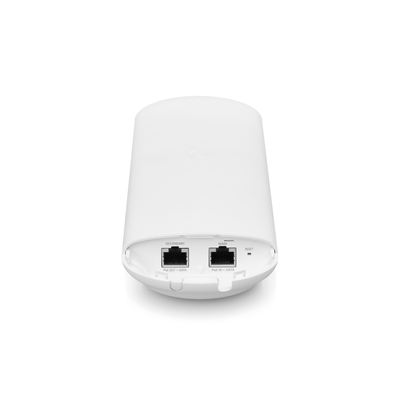

Dual Ethernet Connectivity
The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.
Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.
Now with airOS 8
airOS 8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Specifications
Model: NS-5AC
Frequency: 5 GHz
Throughput: 450+ Mbps
Range: 15+ KM
Management Radio: Yes
PoE PSU Included: Yes
802.3af Support: Yes
Secondary Ethernet Port with PoE Out: Yes
| Weight | 0.23 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
ANTENNA
| Antenna gain level (max) | 16 dBi |
CERTIFICATION
| Certification | CE, FCC, IC |
DESIGN
| Internal | No |
| Certification | CE, FCC, IC |
| LED indicators | Network, Power, Signal strength |
| Product colour | White |
| Placement | Ceiling |
ENERGY MANAGEMENT
| Power over Ethernet (PoE) | Yes |
| Input current | 0.5 A |
| AC input voltage | 24 V |
FEATURES
| Maximum data transfer rate | 1000 Mbit/s |
| Channel bandwidth | 80 MHz |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum outdoor range | 15000 m |
| 5 GHz | Yes |
| Throughput data rate | 450 Mbit/s |
LOGISTICS DATA
| Harmonized System (HS) code | 85176990 |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 70 °C |
PACKAGING CONTENT
| PoE adapter included | Yes |
PACKAGING DATA
| PoE adapter included | Yes |
PERFORMANCE
| Internal memory | 64 MB |
| Operating system installed | AirOS |
| Built-in processor | Yes |
PORTS & INTERFACES
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
TECHNICAL DETAILS
| Harmonized System (HS) code | 85176990 |
WEIGHT & DIMENSIONS
| Weight | 233 g |
| Height | 41 mm |
| Width | 257 mm |
| Depth | 84 mm |
