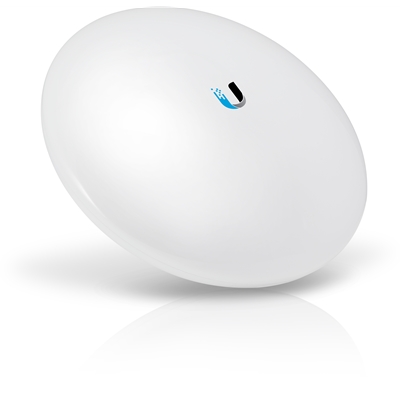

Ubiquiti NBE-M5-16 NanoBeam M5 5GHz 16dBi airMAX Outdoor Wireless CPE Bridge
| Type | CPE |
| Speed | 150+ Mbps |
| POE Capability | 24v |
| Range | 10+ km |
| Antenna Gain | 16 dBi |
£ 42.89
Guaranteed Safe Checkout
High-Performance airMAX Bridge
Incorporating innovative industrial design with advanced technology, the NanoBeam M is the latest generation of Ubiquiti airMAX CPE for customer locations.
Plug and Play Installation

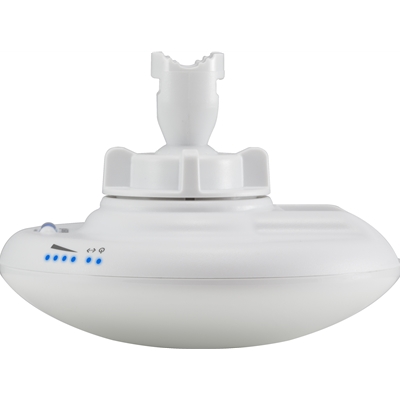

The NanoBeam mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Incredible Antenna Beam Performance
The form factor of the NanoBeam features the highest gain for its size. The NanoBeam excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Wall Mount Kit
Use the optional NBE-WMK Wall Mount Kit for enhanced stability when mounting the NanoBeam on a wall.
Specifications
Model: NBE-M5-16
Frequency: 5GHz
Throughput: 150+ Mbps
Range: 15+ KM
Improved Wide Bandwidth Antenna: No
Management Radio: No
| Weight | 0.32 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATION
| Certification | FCC, IC, CE |
| Compliance certificates | RoHS |
ENERGY MANAGEMENT
| Power requirements | 24V |
| Power consumption | 500 mA |
FEATURES
| Certification | FCC, IC, CE |
| Product colour | White |
| Mounting | Wall |
| Polarization | Dual polarization |
LOGISTICS DATA
| Harmonized System (HS) code | 85177100 |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 70 °C |
PACKAGING CONTENT
| Quantity per pack | 1 pc(s) |
PERFORMANCE
| Frequency band | 5 GHz |
| Antenna gain level (max) | 16 dBi |
TECHNICAL DETAILS
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
WEIGHT & DIMENSIONS
| Weight | 320 g |
| Height | 54 mm |
| Width | 140 mm |
| Depth | 140 mm |
