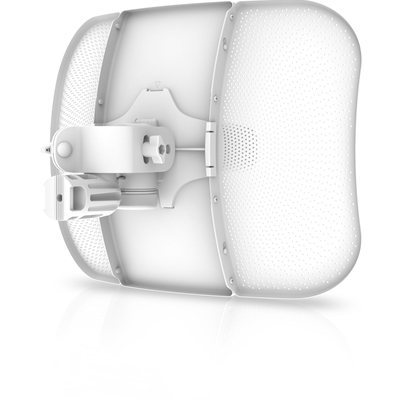

Ubiquiti LBE-5AC-GEN2 LiteBeam AC Gen2 2×2 MIMO airMAX Outdoor Wireless AC CPE Bridge
| Type | CPE |
| Speed | 450+ Mbps |
| POE Capability | 24v |
| Range | N/A |
| Antenna Gain | 23 dBi |
£ 42.96
Guaranteed Safe Checkout
2×2 MIMO airMAX ac CPE
The LiteBeam AC is an ultra-lightweight airMAX ac CPE device with incredible range and disruptive pricing.
Management Wi-Fi Radio
The LiteBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the LiteBeam AC offers a more robust mount with separate azimuth and elevation adjustments.
Now with airOS8 and airView
airOS8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
High-Gain, Directional, 2×2 MIMO Antenna
The LiteBeam AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.
Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeam AC fully assembles in seconds no tools needed. Only a single wrench is required for pole-mounting.
Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeam AC is ideal for shipping and logistics.
Specifications
Model: LBE-5AC-Gen2
Throughput: 450+ Mbps
Management Radio: Yes
| Weight | 0.98 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
ANTENNA
| Antenna gain level (max) | 23 dBi |
CERTIFICATES
| Certification | CE, FCC, IC |
DATA TRANSMISSION
| Maximum data transfer rate | 450 Mbit/s |
ENERGY MANAGEMENT
| Power over Ethernet (PoE) | Yes |
FEATURES
| Internal memory | 64 MB |
| Material | Plastic |
| LED indicators | LAN, Power |
| Product colour | White |
| Product type | Network bridge |
LOGISTICS DATA
| Harmonized System (HS) code | 85176990 |
MANAGEMENT FEATURES
| Web-based management | Yes |
NETWORKING
| Ethernet LAN | Yes |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -40 - 158 °F |
PORTS & INTERFACES
| Ethernet LAN (RJ-45) ports | 1 |
SECURITY
| Security algorithms | WPA2 |
TECHNICAL DETAILS
| Harmonized System (HS) code | 85176990 |
WEIGHT & DIMENSIONS
| Dimensions (WxDxH) | 358 x 271.95 x 272.5 mm |
| Weight | 980 g |
WIRELESS LAN FEATURES
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Frequency band | 2.412 - 2.462, 5.15 - 5.875 |
| 5.15 - 5.25 | |
| 5.25 - 5.35 | |
| 5.47 - 5.725 | |
| 5.725 - 5.85 GHz |
