Ubiquiti LAP-120 LiteAP AC airMAX Outdoor 5GHz 16 dBi PoE Access Point CPE
| Type | CPE |
| Speed | 450+ Mbps |
| POE Capability | 24v |
| Range | N/A |
| Antenna Gain | N/A |
£ 55.16
Guaranteed Safe Checkout
2×2 MIMO airMAX ac Sector AP
The LiteAP ac is an ultra-lightweight airMAX ac Access Point with incredible performance and disruptive pricing.
airMAX ac Sector Coverage
The LiteAP ac features a 2×2 MIMO antenna and communicates with multiple airMAX ac CPEs within a 120d coverage area.
Now with airOS8
airOS8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Lightweight and Sleek Design
The LiteAP ac features a lightweight antenna with an integrated radio in a sleek and highly efficient design.
Installation Flexibility
Featuring the freedom of three-axis alignment, the LiteAP ac fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
Specifications
Frequency
5 GHz
Throughput
450+ Mbps
Ports
(1) 10/100/1000 Ethernet Port
| Weight | 0.97 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CERTIFICATION
| Certification | FCC, IC, CE |
| Compliance certificates | RoHS |
ENERGY MANAGEMENT
| Power source type | PoE |
| Power consumption (max) | 7 W |
FEATURES
| Certification | FCC, IC, CE |
| Antenna type | MIMO directional antenna |
| Product colour | White |
| Mounting | Pole |
LOGISTICS DATA
| Harmonized System (HS) code | 85177100 |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 70 °C |

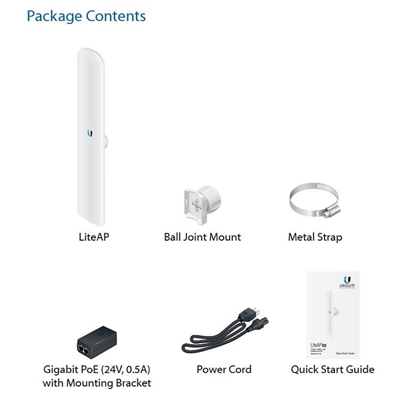

PACKAGING CONTENT
| Cables included | AC |
| Quick installation guide | Yes |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
PERFORMANCE
| Processor frequency | 533 MHz |
| Internal memory | 64 MB |
| Processor model | Atheros MIPS 74Kc |
| Cabling technology | 10/100/1000Base-T(X) |
| Frequency band | 5 GHz |
| Antenna gain level (max) | 16 dBi |
| Built-in processor | Yes |
| Bandwidth note | 5150 - 5875 MHz |
TECHNICAL DETAILS
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
WEIGHT & DIMENSIONS
| Weight | 420 g |
| Height | 452.3 mm |
| Width | 78.7 mm |
| Depth | 54.4 mm |
