Ubiquiti INS-3AF-O-G Instant 802.3af Outdoor Gigabit PoE Converter
| Product Type | POE Injector |
| POE Capability | 48v |
| Device Support | Universal |
£ 13.96
Guaranteed Safe Checkout

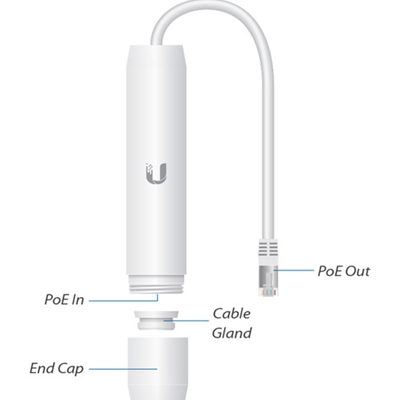

Ubiquiti Instant 802.3af Outdoor Gigabit Adapter – INS-3AF-O-G
The Ubiquiti Instant 802.3af Outdoor Gigabit Adapter (INS-3AF-O-G) is the new and improved, gigabit version of the INS-8023AF-O.
Converting any 48V 802.3af supply into 24V passive PoE, compatible with many Ubiquiti products.
Specifications
Product code
INS-3AF-O-G
Dimensions
30.2 x 166 mm (1.19 x 6.54″)
Weight
90 g (3.17 oz)
Networking Interface
1 x Gigabit RJ45 Port
1 x Gigabit Ethernet Cable
Operating Temperature
-30 to 70C
Power Input
48V, 802.3af
Max. Power Output
24V, 0.5A
Power Method
24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
Ethernet ESD/Surge Protection
15kV
Box Contents
1 x INS-3AF-O-G
| Weight | 0.116 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
ENERGY MANAGEMENT
| Input voltage | 48 V |
| Input current | 0.5 A |
| Output current | 0.5 A |
| Power over Ethernet (PoE) voltage | 48 V |
| Surge protection voltage | 15 kV |
FEATURES
| Product colour | White |
| Surge protection | Y |
LOGISTICS DATA
| Harmonized System (HS) code | 85044095 |
NETWORKING
| Networking standards | IEEE 802.3af |
| Power over Ethernet (PoE) | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
OPERATIONAL CONDITIONS
| Operating temperature (T-T) | -30 - 70 °C |
PORTS & INTERFACES
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
TECHNICAL DETAILS
| Harmonized System (HS) code | 85044095 |
WEIGHT & DIMENSIONS
| Weight | 90 g |
| Height | 30.2 mm |
| Width | 30.2 mm |
| Depth | 366.6 mm |
