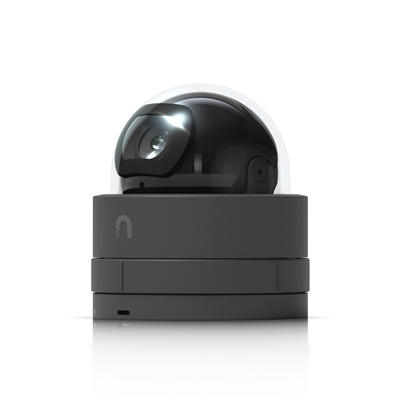

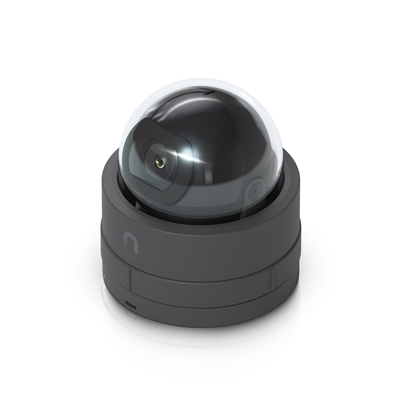

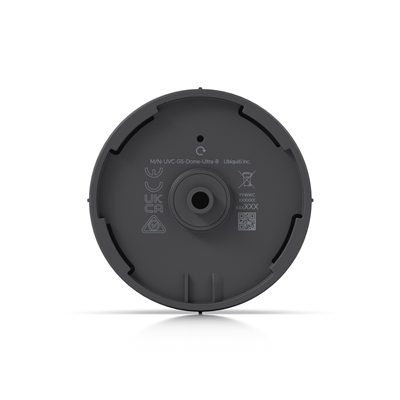

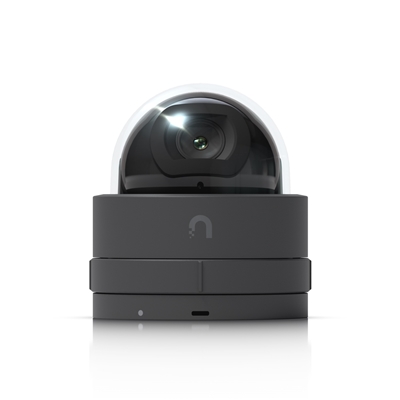

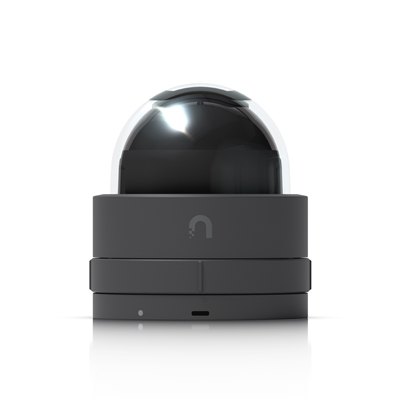

Ubiquiti UVC-G5-DOME-ULTRA-B UniFi Protect G5 Dome Ultra Black HD PoE Turret IP Camera w/ 20m Night Vision (4 MP)
| Camera Resolution | 4MP |
| Camera Type | Dome |
| POE Capability | 48v |
| Pack Size | Single |
£ 60.56
Guaranteed Safe Checkout
Ultra-compact and tamper-resistant 2K HD PoE camera with night vision designed for low-profile indoor security.
2K (4MP) video resolution
Ultra-wide viewing angle (102.4 degrees)
20 m (65 ft) IR night vision
AI event detections
Connect and power using PoE
Optional Flush Mount for in-ceiling installation
Dimensions
dia63.6 x 68.2 mm (dia2.5 x 2.7″)
Weight
175 g (6.2 oz)
Enclosure Material
Aluminum alloy, polycarbonate
Mount Material
Stainless steel
Resistance
IK06
Sensor
1/2.4″ CMOS
Lens
Fixed focal length
View Angle
H: 102.4deg, V: 54.9deg, D: 120.6deg
Night Mode
Built-in IR LED illumination and IR cut filter
IR Distance
20 m (65 ft)
Resolution
4MP 2688 x 1512 (16:9)
Max. Frame Rate
30 FPS
Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Processor
Dual-core Arm Cortex-A7 based chip
Networking Interface
10/100 MbE RJ45 port
Max. Power Consumption
4.2W
Power Method
POE
Supported Voltage Range
37–57V DC
Button
Factory Reset
Mounting
Surface Mount
Ambient Operating Temperature
-20 to 40deg C (-4 to 104deg F)
Ambient Operating Humidity
10 to 90% noncondensing
Certifications
FCC, IC, CE
| Weight | 0.18 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Warranty:
Contact Ubiquiti Technical Support via https://rma.ubnt.com/ and obtain RMA reference. Call Target Customer Services with RMA reference to arrange repair/replacement. Warranty valid for 12 months from date of purchase.
CAMERA
| Lens viewing angle, horizontal | 102.4° |
| Lens viewing angle, vertical | 54.9° |
| Lens viewing angle, diagonal | 120.6° |
DESIGN
| Form factor | Dome |
| Product colour | Black |
| Housing material | Aluminium, Polycarbonate (PC), Stainless steel |
| Mounting type | Ceiling/wall |
| Protection features | Vandal proof |
| IK code | IK06 |
ENERGY MANAGEMENT
| Power consumption (typical) | 4.2 W |
| Power source type | PoE |
| AC input voltage | 37 - 57 V |
IMAGE SENSOR
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.4 mm (1 / 2.4") |
| Number of sensors | 1 |
LENS SYSTEM
| Number of lenses | 1 |
MANAGEMENT FEATURES
| Reset button | Yes |
NETWORKING
| Ethernet LAN | Yes |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet interface type | Fast Ethernet |
NIGHT VISION
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 20 m |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 40 °C |
PACKAGING CONTENT
| Cables included | LAN (RJ-45) |
| Mounting kit | Yes |
| Number of cameras | 1 |
| Screws included | Yes |
PERFORMANCE
| Type | IP security camera |
| Processor model | ARM Cortex-A7 |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Built-in processor | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
PORTS & INTERFACES
| Ethernet LAN (RJ-45) ports | 1 |
STORAGE
| Built-in HDD | No |
SUSTAINABILITY
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
TECHNICAL DETAILS
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
VIDEO
| Maximum resolution | 2688 x 1512 pixels |
| Noise reduction | Yes |
| Frame rate | 30 fps |
| Video formats supported | H.264 |
| Total megapixels | 4 MP |
| Privacy masking | Yes |
| Text caption overlay | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
WEIGHT & DIMENSIONS
| Weight | 175 g |
| Height | 68.2 mm |
| Diameter | 6.36 cm |
