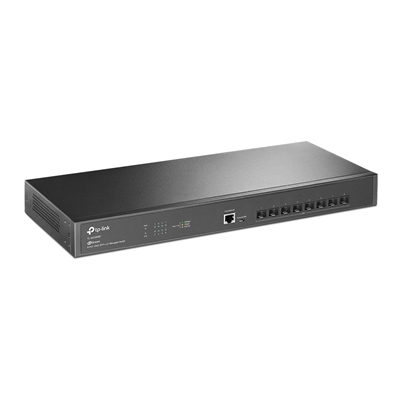

TP-Link JetStream TL-SX3008F 8-Port Metal 10GE SFP+ L2+ Managed Switch

TypeManaged Switch
Speed10/100/1000Mbps
PoENo

£ 156.97

Guaranteed Safe Checkout

Future-Proof Your Business with Full 10G Fiber Switch
JetStream 8-Port 10GE SFP+ L2+ Managed Switch

Full Fiber Switch with Lightning-Fast 10G
Build and expand your lightning-fast network with TP-Link TL-SX3008F—a fully managed switch with full 8-port 10G fiber ports and 160 Gbps switching capacity. Ideal for small, medium, and large business networks, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.

Seamless Integration to Omada Cloud SDN
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

Secure Networking
Our high-quality security features defend against a range of network threats. They include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to the valid user credentials.

Enterprise Level Features
A complete lineup of L2+ features is supported. 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are among the innovative features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reducing unnecessary traffic, while IGMP throttling & filtering restrict subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.

Advanced Quality of Service (QoS)
Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in situations of low bandwidth.

ISP Features
Internet Service Providers (ISPs) get the support they need with features including sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.

IPv6 Support
An enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without the need to upgrade your hardware. Take advantage of features such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover to enhance your network environment.

Weight 2.8 lbs
Manufacturer

EAN

Manufacturer Code

Manufacturer’s Website:
www.tp-link.com
Warranty:
3 Years Return to Base Warranty.

CERTIFICATION

CertificationCE, FCC, RoHS

DATA TRANSMISSION

MAC address table32000 entries
Switching capacity160 Gbit/s
Jumbo frames supportYes
Number of queues8
Forwarding rate119.04 Mpps
Packet buffer memory16 MB
Jumbo frames9000
Static routeYes

DESIGN

CertificationCE, FCC, RoHS
Rack mountingYes
LED indicatorsYes
Product colourBlack

ENERGY MANAGEMENT

Power sourceAC
AC input frequency50/60 Hz
AC input voltage220 V
Power consumption (max)15.46 W
Power supply includedYes

LOGISTICS DATA

Harmonized System (HS) code85176990

MANAGEMENT FEATURES

MIB supportRFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Switch layerL2/L3
Quality of Service (QoS) supportYes
Web-based managementYes
System event logYes
Switch typeManaged
Traffic classificationYes
ARP inspectionYes
Configuring Location Settings (CLI)Yes
Cloud-managedYes

MULTICAST FEATURES

Multicast supportYes
Multicast Listener Discovery (MLD) snoopingY

NETWORKING

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Flow control supportYes
Port mirroringYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
IP routingYes
Number of VLANs4000
Spanning tree protocolYes
Head-of-line (HOL) blockingYes
VLAN supportYes
10G supportYes
Virtual LAN featuresPrivate VLAN, Protocol-based VLAN, Voice VLAN

OPERATIONAL CONDITIONS

Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 45 °C
Storage relative humidity (H-H)5 - 90%
Heat dissipation52.75 BTU/h

PACKAGING CONTENT

Cables includedAC
ManualYes
Quick start guideYes
Rack mount kitYes

PACKAGING DATA

Package weight2.37 kg
Cables includedAC
Package depth250 mm
Package height80 mm
Package width528 mm
ManualYes
Quick start guideYes
Package typeBox
Rack mount kitYes

PERFORMANCE

Harmonized System (HS) code85176990

PORTS & INTERFACES

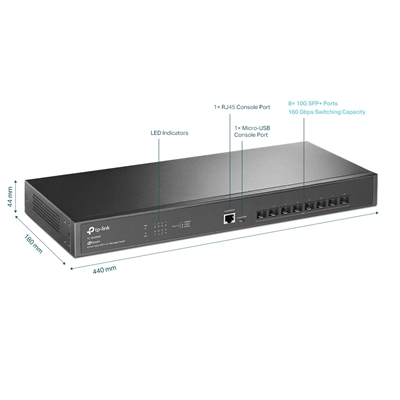

Console portRJ-45/Micro-USB
Installed SFP+ modules quantity0
Installed SFP modules quantity0
Basic switching RJ-45 Ethernet ports typeNo
Basic switching RJ-45 Ethernet ports quantity0
SFP+ module slots quantity8
Power connectorDC-in jack

POWER OVER ETHERNET (POE)

Power over Ethernet (PoE)No

PROTOCOLS

Management protocolsSNMPv1/v2c/v3, SNTP
IPv4 & IPv6 featuresIPv6 Telnet, IPv6 ping, IPv6 tracert

SECURITY

Security algorithmsHTTPS, SSH, SSH-2, SSL/TLS
MAC address filteringYes
Static port securityYes
Access Control List (ACL)Yes
SSH/SSL supportYes
IGMP snoopingYes
Authentication typeAAA, TACACS+
Loop protectionYes
BPDU filtering/protectionYes
IP-MAC-Port bindingYes
AuthenticationGuest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Queue scheduling algorithmsSP, WRR+SP, Weighted Round Robin (WRR)
DHCP featuresDHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

WEIGHT & DIMENSIONS

Height44 mm
Width440 mm
Depth180 mm
