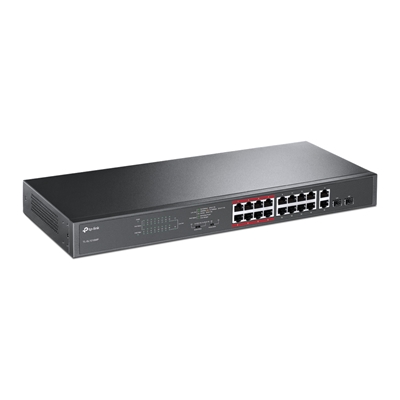

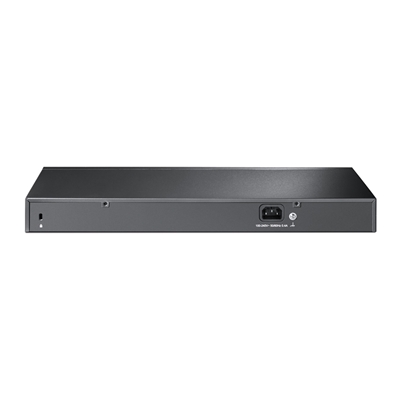

TP-Link TL-SL1218MP 16-Port Metal 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch (192W)
| Ports | 16 Ports |
| Managed/Unmanaged | Unmanaged |
| Speed | 10/100/1000 |
| PoE capable | Yes |
£ 107.25
Guaranteed Safe Checkout
Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance
High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.
Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.
Specifications
HARDWARE FEATURES
Interface:
16 PoE+ 10/100Mbps RJ45 Ports
2 10/100/1000Mbps RJ45 Ports
2 Combo Gigabit SFP Slots
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity:
2 Fans
Physical Security Lock:
Yes
Power Supply:
100-240V AC, 50/60 Hz
Backup Bandwidth:
7.2 Gbps
PoE+ Ports(RJ45):
Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port16
PoE Power Budget: 192W
Mac Address Table:
8K
Dimensions ( W x D x H ):
17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)
Max Power Consumption:
18.73 W (220/50Hz. no PD connected)
217.22 W (220/50Hz. with 192W PD connected)
Max Heat Dissipation:
63.89 BTU/h (no PD connected)
741.15 BTU/h (with 192W PD connected)
SOFTWARE FEATURES
Advanced Features:
Compatible With IEEE 802.3at/af Compliant PDs
Port Priority Mode
Extend Mode (Up to 250m PoE power supply and data transmission)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
Transmission Method:
Store-And-Forward
OTHERS
Certification:
CE, FCC, RoHS
Package Contents:
TL-SL1218MP, Power Cable, Installation Guide
| Weight | 2.95 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.tp-link.com
Warranty:
3 Years Return to Base Warranty.
DATA TRANSMISSION
| MAC address table | 8000 entries |
| Switching capacity | 7.2 Gbit/s |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Switching capacity | 7.2 Gbit/s |
| Packet buffer memory | 4.1 MB |
| Packet forwarding rate (1 Gbps) | 5.36 pps |
| Jumbo frames | 10000 |
| Jumbo frames support | Y |
| Store-and-forward | Y |
| 10G support | N |
| Packet buffer memory | 4.1 MB |
| Packet forwarding rate (1 Gbps) | 5.36 pps |
| Jumbo frames | 10 |
DESIGN
| Rack mounting | Yes |
| LED indicators | LAN, PoE, Status |
| Product colour | Black |
| Rack mounting | Y |
| Stackable | No |
| Number of fans | 2 fan(s) |
| LED indicators | LAN, PoE, Status |
| Colour of product | Black |
| Stackable | N |
| Number of fans | 2 fan(s) |
ENERGY MANAGEMENT
| Power consumption (typical) | 18.7 W |
| Power source | AC |
| Power consumption (typical) | 18.7 W |
| Heat dissipation | 741.15 BTU/h |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power over Ethernet (PoE) Support | Y |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Y |
ILLUMINATION/ALARMS
| LED indicators | LAN, PoE, Status |
LOGISTICS DATA
| Harmonized System (HS) code | 85176990 |
MANAGEMENT FEATURES
| Switch type | Unmanaged |
MEMORY
| Packet buffer memory | 4.1 MB |
NETWORKING
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| MAC address table | 8000 entries |
| Flow control support | Yes |
| Networking standards | IEEE 802.3af,IEEE 802.3at |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Y |
| Jumbo Frames support | Y |
| Store-and-forward | Y |
| Auto MDI/MDI-X | Y |
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 741.15 BTU/h |
| Operating relative humidity range | 10 - 90% |
| Storage temperature range (T-T) | -40 - 70 °C |
| Operating temperature range (T-T) | 0 - 40 °C |
| Storage relative humidity range | 5 - 90% |
| Heat dissipation | 741.15 BTU/h |
PACKAGING CONTENT
| Cables included | LAN (RJ-45) |
| Manual | Yes |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45) |
| User guide | Yes |
| Manual | Y |
| Quick start guide | Y |
| User guide | Y |
PACKAGING DATA
| Cables included | LAN (RJ-45) |
| Manual | Yes |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45) |
| User guide | Yes |
| Manual | Y |
| Quick start guide | Y |
| User guide | Y |
PERFORMANCE
| Harmonized System (HS) code | 85176990 |
| Stackable | N |
| Packet buffer memory | 4.1 MB |
PORTS & INTERFACES
| Gigabit Ethernet (copper) ports quantity | 2 |
| Fast Ethernet (copper) ports quantity | 16 |
| Combo SFP ports quantity | 2 |
| Installed SFP+ modules quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Power over Ethernet (PoE) ports quantity | 1 |
| Fast Ethernet (copper) ports quantity | 16 |
| Combo SFP ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 20 |
POWER OVER ETHERNET (POE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 192 W |
| Power over Ethernet (PoE) support | Y |
| Power over Ethernet (PoE) ports quantity | 1 |
| Total Power over Ethernet (PoE) budget | 192 W |
SECURITY
| MAC address filtering | Yes |
| MAC address filtering | Y |
TECHNICAL DETAILS
| Rack mounting | Y |
| Colour of product | Black |
| Stackable | N |
WEIGHT & DIMENSIONS
| Height | 44 mm |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Width | 440 mm |
| Depth | 180 mm |
