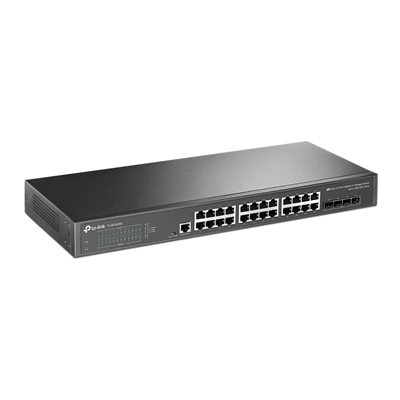

TP-Link JetStream TL-SG3428X 24-Port Metal Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

TypeManaged Switch
Speed10/100/1000Mbps
PoENo

£ 189.46

Guaranteed Safe Checkout

TP-Link’s JetStream L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link JetStream L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Software Defined Networking (SDN) with Cloud Access
Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network——all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Weight 2.85 lbs
Manufacturer

EAN

Manufacturer Code

Manufacturer’s Website:
www.tp-link.com
Warranty:
3 Years Return to Base Warranty.

DATA TRANSMISSION

MAC address table16000 entries
Switching capacity128 Gbit/s
Jumbo frames supportYes
Store-and-forwardYes
Forwarding rate95.23 Mpps
Packet buffer memory12 MB
Number of static routes48
Jumbo frames9000
Static routeYes

DESIGN

Rack mountingYes
Form factor1U
LED indicatorsYes
Product colourBlack
Number of fans0 fan(s)

ENERGY MANAGEMENT

Power sourceAC
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Power consumption (max)23.6 W
Power supply includedYes

LOGISTICS DATA

Harmonized System (HS) code85176990

MANAGEMENT FEATURES

MIB supportYes
Switch layerL2+/L3
Quality of Service (QoS) supportYes
Web-based managementYes
System event logYes
Switch typeManaged
ARP inspectionYes
Configuring Location Settings (CLI)Yes
Cloud-managedYes

MULTICAST FEATURES

Multicast supportYes
Multicast Listener Discovery (MLD) snoopingY

NETWORKING

Networking standardsIEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Flow control supportYes
Port mirroringYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Ethernet LAN data rates10,100,1000 Mbit/s
Number of VLANs4000
Spanning tree protocolYes
Head-of-line (HOL) blockingYes
VLAN supportYes
10G supportYes
Active link detectionYes
Policy-based routingYes
Virtual LAN featuresPrivate VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IPv4 routes48
IPv6 routes48

OPERATIONAL CONDITIONS

Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 45 °C
Storage relative humidity (H-H)5 - 90%
Heat dissipation80.353 BTU/h

PACKAGING CONTENT

Cables includedLAN (RJ-45)
Quick start guideYes

PACKAGING DATA

Package weight2.69 kg
Cables includedLAN (RJ-45)
Package depth250 mm
Package height80 mm
Package width528 mm
Quick start guideYes

PERFORMANCE

FanlessYes
Harmonized System (HS) code85176990

PORTS & INTERFACES

Gigabit Ethernet (copper) ports quantity24
Console portRJ-45/Micro-USB
Installed SFP+ modules quantity0
Installed SFP modules quantity0
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity24
SFP+ module slots quantity4
Power connectorAC-in jack

POWER OVER ETHERNET (POE)

Power over Ethernet (PoE)No

PROTOCOLS

Management protocolsSNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)Yes
IPv4 & IPv6 featuresIPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert

SECURITY

Access Control List (ACL)Yes
SSH/SSL supportYes
IGMP snoopingYes
Authentication typeAAA, RADIUS, TACACS+
Loop protectionYes
BPDU filtering/protectionYes
IP-MAC-Port bindingYes
AuthenticationGuest VLAN, MAC-based authentication, Port-based authentication
DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

WEIGHT & DIMENSIONS

Height44 mm
Width440 mm
Depth180 mm
