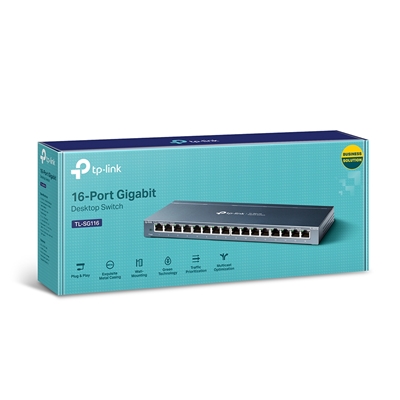

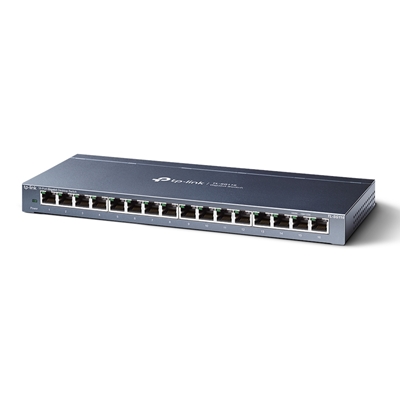

TP-Link TL-SG116 16-Port Metal Gigabit Desktop Network Switch
| Ports | 16 Ports |
| Managed/Unmanaged | Unmanaged |
| Speed | 10/100/1000 |
| PoE capable | No |
£ 36.35
Guaranteed Safe Checkout
Key Features
16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Green Ethernet technology saves power consumption
IEEE 802.3x flow control provides reliable data transfer
Steel housing, desktop or wall-mounting design
Support 802.1p/DSCP QoS and IGMP Snooping function
Plug and play, with no configuration needed
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p
Interface
16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity
Fanless
Physical Security Lock
Yes
Power Consumption
Maximum: 10.0W
External Power Supply
External Power Adapter (Output: 12VDC / 1.0A)
LED Indicator
System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H )
11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm)
Max Power Consumption
10W(220V/50Hz)
Max Heat Dissipation
34.12BTU/h
PERFORMANCE
Packet Forwarding Rate
23.8Mpps
MAC Address Table
8K
Packet Buffer Memory
4.1Mb
Jumbo Frame
10KB
SOFTWARE FEATURES
Advanced Features
Green Technology
802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method
Store and Forward
OTHERS
Certification
CE, FCC ,RoHS
Package Contents
16-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Rubber Feet
Environment
Operating Temperature: 0 – 40
Storage Temperature: -40 – 70
Operating Humidity: 10% – 90%, non-condensing
Storage Humidity: 5% – 90% non-condensing
| Weight | 1.25 lbs |
|---|---|
| Manufacturer | |
| EAN | |
| Manufacturer Code |
Manufacturer’s Website:
www.tp-link.com
Warranty:
3 Years Return to Base Warranty.
DATA TRANSMISSION
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Full duplex | Y |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Number of queues | 4 |
| Store-and-forward | Yes |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.81 Mpps |
| Packet buffer memory | 4.1 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Y |
| Number of queues | 4 |
| Store-and-forward | Y |
| Number of VLANs | 32 |
| 10G support | N |
| Forwarding rate | 23.81 Mpps |
| Packet buffer memory | 4.1 MB |
| Jumbo frames | 9000 |
DESIGN
| Rack mounting | No |
| LED indicators | Yes |
| Wall mountable | Yes |
| Product colour | Black |
| Rack mounting | N |
| LED indicators | Y |
| Wall mountable | Y |
| Housing material | Metal |
| Colour of product | Black |
| Housing material | Metal |
ENERGY MANAGEMENT
| Input current | 0.6 A |
| Heat dissipation | 31.68 BTU/h |
| AC input frequency | 50 Hz |
| AC input voltage | 220 V |
| DC input voltage | 9 V |
| Power consumption (max) | 9.3 W |
| Power supply included | Yes |
| Power over Ethernet (PoE) Support | N |
| Input current | 0.6 A |
| AC input frequency | 50 Hz |
| AC input voltage | 220 V |
| DC input voltage | 9 V |
| Power consumption (max) | 9.3 W |
| Power supply included | Y |
ILLUMINATION/ALARMS
| LED indicators | Y |
LOGISTICS DATA
| Harmonized System (HS) code | 85176990 |
MANAGEMENT FEATURES
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Y |
| Switch type | Unmanaged |
MEMORY
| Packet buffer memory | 4.1 MB |
NETWORKING
| Full duplex | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full duplex | Y |
| MAC address table | 8000 entries |
| Flow control support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Number of VLANs | 32 |
| VLAN support | Yes |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Flow control support | Y |
| Auto-negotiation | Yes |
| Cable length detection | Yes |
| Port mirroring | Y |
| Link aggregation | Y |
| Jumbo Frames support | Y |
| Broadcast storm control | Y |
| Virtual LAN features | Protocol-based VLAN, Tagged VLAN |
| Store-and-forward | Y |
| Rate limiting | Y |
| IGMP snooping | Y |
| Auto MDI/MDI-X | Y |
| Number of VLANs | 32 |
| VLAN support | Y |
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e,Cat6 |
| Auto-negotiation | Y |
| Cable length detection | Y |
| Virtual LAN features | Protocol-based VLAN,Tagged VLAN |
OPERATIONAL CONDITIONS
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 31.68 BTU/h |
| Operating relative humidity range | 10 - 90% |
| Storage temperature range (T-T) | -40 - 70 °C |
| Operating temperature range (T-T) | 0 - 40 °C |
| Storage relative humidity range | 5 - 90% |
| Heat dissipation | 31.68 BTU/h |
PACKAGING CONTENT
| Cables included | AC |
| Quick start guide | Yes |
| Cables included | AC |
| Quick start guide | Y |
PACKAGING DATA
| Cables included | AC |
| Quick start guide | Yes |
| Cables included | AC |
| Quick start guide | Y |
PERFORMANCE
| Harmonized System (HS) code | 85176990 |
| Packet buffer memory | 4.1 MB |
| Auto-negotiation | Y |
PORTS & INTERFACES
| Gigabit Ethernet (copper) ports quantity | 16 |
| Installed SFP+ modules quantity | 0 |
| Installed SFP modules quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
POWER OVER ETHERNET (POE)
| Power over Ethernet (PoE) | No |
| Power over Ethernet (PoE) support | N |
SECURITY
| IGMP snooping | Yes |
| Loop protection | Yes |
| IGMP snooping | Y |
| Loop protection | Y |
TECHNICAL DETAILS
| Rack mounting | N |
| Colour of product | Black |
| Number of queues | 4 |
| Housing material | Metal |
| VLAN support | Y |
VIRTUAL LAN FEATURES
| Number of VLANs | 32 |
| VLAN support | Y |
| Virtual LAN features | Protocol-based VLAN,Tagged VLAN |
WEIGHT & DIMENSIONS
| Height | 25.4 mm |
| Width | 286 mm |
| Depth | 111.7 mm |
| Height | 25.4 mm |
| Width | 286 mm |
| Depth | 111.7 mm |
