TP-Link TL-SG108PE 8-Port Metal Gigabit Easy Smart Switch with 4-Port PoE+ (64W)

8-Port Gigabit Easy Smart Switch with 4-Port PoE+

Key Features
Eight 10/100/1000Mbps RJ45 ports
Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
Supports PoE power up to 64 W for all PoE ports*
Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery

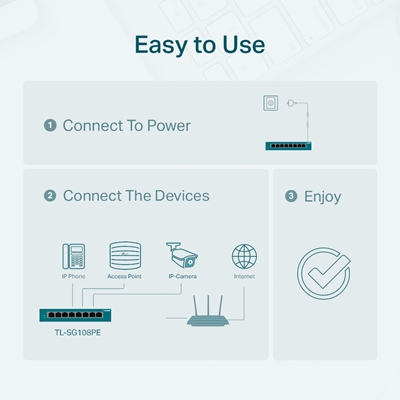

Simple network set-up on top of plug-and-play connectivity
Web-based user interface and Easy Smart Configuration Utility simplify configuration
Fanless design lowers energy consumption and eliminates operating noise

Multiple Application Scenarios
The TL-SG108PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

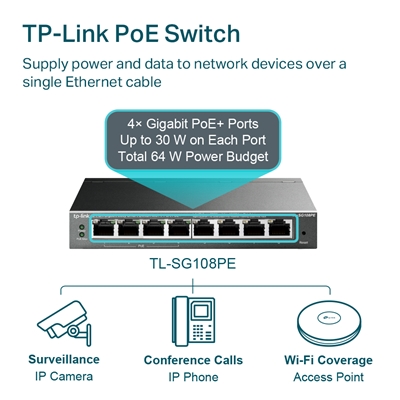

Dedicated 4 PoE+ Ports (64 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 64 W PoE power budget* for the 4x gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video

IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

VLAN for Security
Helps to create network with higher security and better overall performance by dividing network into smaller groups

Making Management Easy
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

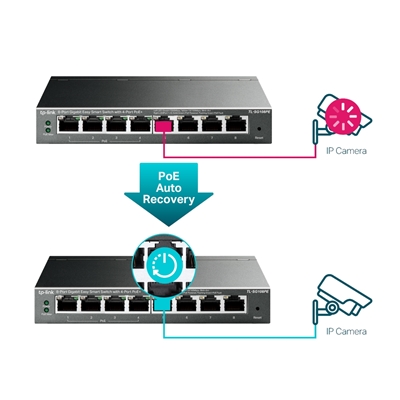

System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Intelligent Power Management to Prevent Power Overload
Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 64 W. This protects the device from power overload operation.

Great Compatibility with PD Detection
Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Durable Metal Casing
The interior components of TL-SG108PE are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG108PE delivers switching performance you can depend on.

Specifications

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at

Interface
Eight 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity
Fanless

Power Supply
External Power Adapter (Output: 53.5 VDC/1.31 A)

PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 64W

Dimensions ( W x D x H )
6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)

Max Power Consumption
5.41 W (220V/50Hz with no PD connected)
74.27 W (220V/50Hz with 64 W PD connected)

Max Heat Dissipation
18.45 BTU/h (with no PD connected)
253.26 BTU/h (with 64 W PD connected)

PERFORMANCE

Switching Capacity
16 Gbps

Packet Forwarding Rate
11.9 Mpps

MAC Address Table
4 K

Packet Buffer Memory
1.5 Mb

Jumbo Frame
16 KB

SOFTWARE FEATURES

Quality of Service
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control

L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery

VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Management
Web-based GUI
Easy Smart Configuration Utility

Transmission Method
Store-And-Forward

OTHERS

Certification
FCC, CE, RoHS

Package Contents
TL-SG108PE
Power Adapter
Installation Guide
Rubber Feet

System Requirements
Microsoft Windows for running Utility
